KC Turbos Upgraded Exhaust Manifolds For 1994.5-1998 Ford 7.3L Powerstroke F-250/F-350 (OBS)
SKU:
302873
- $590.00
- $590.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade your 1994.5-1998 Ford F-250/F-350 7.3L Powerstroke (OBS) with the KC Turbos Upgraded Exhaust Manifolds. The factory 7.3L manifolds tend to deteriorate and crack over time, which leads to uneven clamping, broken studs, blown gaskets and power lost to exhaust leaks. KC's redesigned manifolds use thicker mounting flanges for an even seal against the cylinder head and port-matched runners that flow over 20% more than stock, reducing back pressure and improving turbo efficiency.
KC Turbos casts these manifolds from high-silicon molybdenum iron, which holds up to thermal warping and cracking far better than conventional cast iron. The up-pipe mounting face is re-engineered for better alignment and clamping under load, and the larger, fully machined sealing surface spreads heat evenly to minimize hot spots. Each pair carries an integrated EGT probe port and retains the factory EBP tube port, both with NPT plugs preinstalled, plus 16 OEM-style interference thread flange bolts that hold torque and resist backing out.
Installation reuses the factory exhaust manifold to up-pipe bolts, which are not included. A thread chaser is recommended to clean the cylinder head bolt holes before install so the new hardware reaches proper torque. The OEM-style interference thread bolts may feel like they are cross-threading as they go in; this is normal, since that interference with the head threads is what keeps them from backing out. KC Turbos recommends replacing factory donut-gasket up-pipes with bellowed up-pipes at the same time.
Features:
- Direct bolt-on for 1994.5-1998 Ford 7.3L Powerstroke (OBS)
- High-silicon molybdenum cast iron resists warping and cracking
- Port-matched runners flow over 20% more than stock manifolds
- Thicker mounting flanges seal evenly against the cylinder head
- Enlarged, fully machined sealing surface minimizes hot spots
- Integrated EGT probe port and factory EBP port, both plugged
- Re-engineered up-pipe face improves alignment and clamping
- 16 OEM-style interference thread bolts resist backing out
Specifications:
- Brand: KC Turbos
- Product: Upgraded Exhaust Manifolds (Pair)
- Material: High-silicon molybdenum (High-SiMo) cast iron
- Flow: Over 20% increase vs stock manifolds
- EGT Port: Integrated, NPT plug preinstalled
- EBP Port: Factory EBP tube port retained, NPT plug preinstalled
- Gaskets: Stainless steel
- Mounting Hardware: 16 OEM-style interference thread flange bolts
- Up-Pipe Bolts: Not included, factory hardware is reused
- Manifold Bolt Torque: 45 lb-ft (61 Nm)
- Up-Pipe to Manifold Torque: 18 lb-ft (24 Nm)
- Engine: Ford 7.3L Powerstroke (OBS)
- Warranty: 1 Year

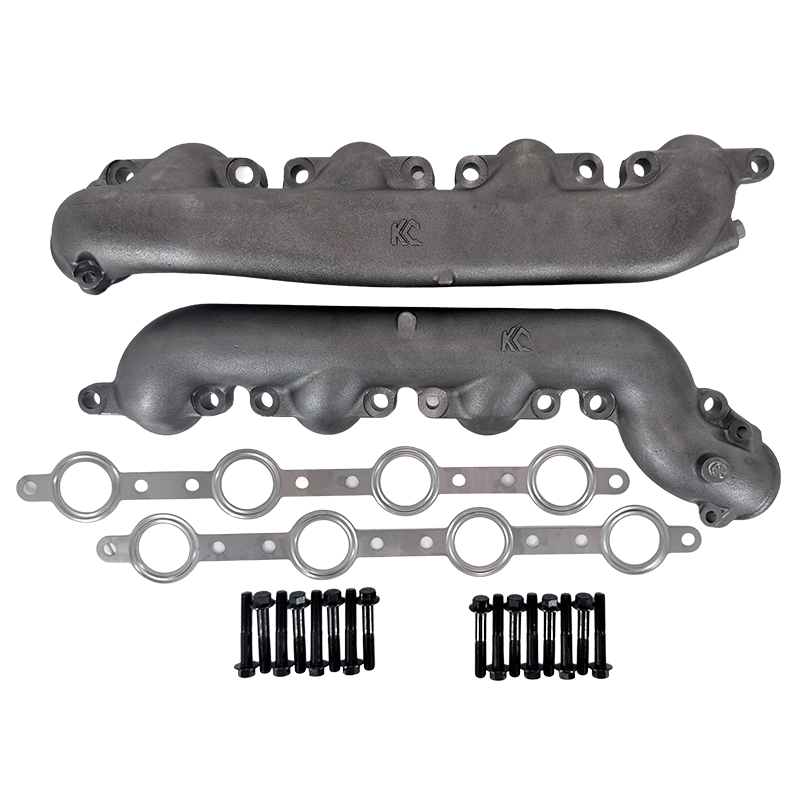

Included:
- (2) KC Upgraded Exhaust Manifolds (Driver and Passenger)
- (2) Stainless Steel Exhaust Manifold Gaskets
- (16) OEM-Style Interference Thread Exhaust Flange Bolts
- (2) Preinstalled NPT Plugs (EGT and EBP Ports)
Fitment:
- 1994.5-1998 Ford F-250 7.3L Powerstroke (OBS)
- 1994.5-1998 Ford F-350 7.3L Powerstroke (OBS)
Notes:
- 1 Year Warranty
- Not available for sale in the state of California
- Not designed to fit van applications
