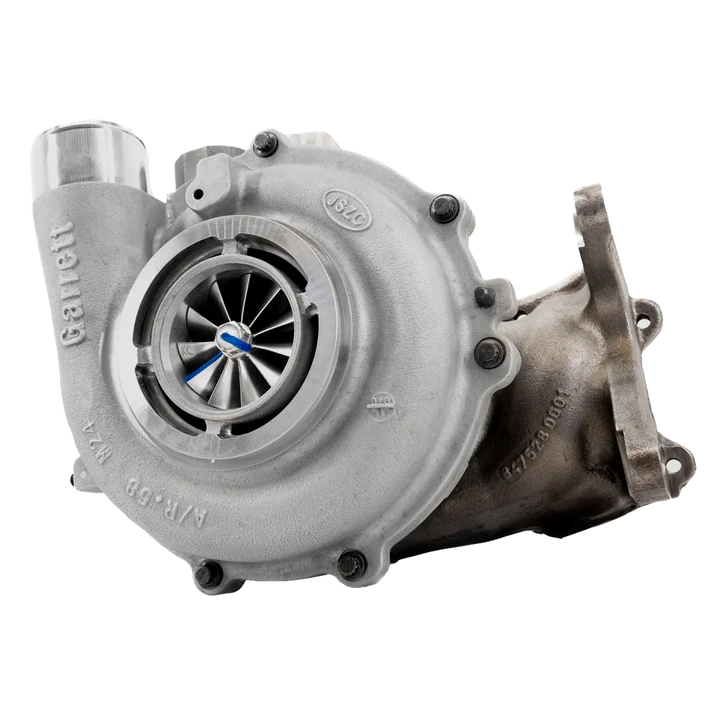

KC Vortex Stage 2 64/66 Turbo For 2004.5-2006 Chevy/GMC LLY 6.6L Duramax
KC Vortex Stage 2 64/66 Turbo For 2004.5-2006 Chevy/GMC LLY 6.6L Duramax
KC Vortex Stage 2 64/66 Turbo For 2004.5-2006 Chevy/GMC LLY 6.6L Duramax
KC Vortex Stage 2 64/66 Turbo For 2004.5-2006 Chevy/GMC LLY 6.6L Duramax
KC Vortex Stage 2 64/66 Turbo For 2004.5-2006 Chevy/GMC LLY 6.6L Duramax
KC Turbos

KC Vortex Stage 2 64/66 Turbo For 2004.5-2006 Chevy/GMC LLY 6.6L Duramax

SKU: 302150 - LLY

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,590.00
$2,590.00

Free Shipping

Free ground shipping on all orders over $99
Shipping Notes:
This Product Is Not For Sale, Use Or Distribution In California!
Description

The KC Vortex Stage 2 Turbo delivers a major performance upgrade for your LLY, LBZ, or LMM Duramax while retaining true drop-in fitment. This turbo features an advanced 64mm billet compressor wheel and a 66mm high-flow 10-blade turbine designed to improve power, spool-up, cooling, and towing capability. Whether you daily drive, tow, or want a stronger street setup, the Stage 2 balances drivability with top-end performance and EGT control.

KC Turbos engineered this unit using precision point-milled machining, upgraded 360° thrust bearings, and a redesigned turbine for faster response and increased airflow. The enhanced geometry supports 650–700 HP with supporting modifications while retaining compatibility with factory manifolds, up-pipes, and exhaust braking systems (where calibration permits). For best results, custom tuning is recommended.

Features:

  • Upgraded 64mm billet compressor wheel increases airflow efficiently
  • 66mm 10 blade turbine wheel improves top end power and response
  • Faster spool up for stronger low rpm torque and towing strength
  • Upgraded 360 thrust bearing enhances reliability under load
  • Improved boost control maintains consistent power delivery
  • Cooler EGTs for safer towing and sustained heavy performance
  • Point milled wheel machining optimizes precision and balance
  • Direct drop in design maintains full factory style fitment

Specifications:

  • Brand: KC Turbos
  • Compressor wheel size: 64mm billet extended-tip
  • Turbine wheel size: 66mm 10-blade high-flow
  • Bearing system: 360-degree thrust upgrade
  • Fitment type: 100% drop-in replacement
  • Target power: 650–700 HP with supporting mods
  • Construction: CNC-machined housings and wheels
  • Compatibility: LLY LBZ LMM models 2004.5–2010
  • Performance: Faster spool and improved boost control
  • Warranty: 1-Year Unlimited Mile KC Turbos Warranty

Included:

  • (1) KC Vortex Stage 2 Turbocharger

Fitment:

  • 2004.5-2006 Chevy Silverado 2500 6.6L LLY Duramax 4WD
  • 2004.5-2006 Chevy Silverado 3500 6.6L LLY Duramax 4WD
  • 2004.5-2006 GMC Sierra 2500 6.6L LLY Duramax 4WD
  • 2004.5-2006 GMC Sierra 3500 6.6L LLY Duramax 4WD

Notes:

  • 1 Year Unlimited Mile Warranty
  • This Product Is Not For Sale, Use Or Distribution In California!
  • Turbocharger does NOT include an actuator; reuse your OE actuator
  • LLY models require Garrett Vane Position Sensor Adapter 771864-0001 (not included)
  • Custom tuning strongly recommended for best performance
  • Replaces OE part numbers: 12723305 and 12723083
Fitment
Fitment

Product Specs

SKU:
302150 - LLY
Brand:
KC Turbos
shipping remarks:
This Product Is Not For Sale, Use Or Distribution In California!
