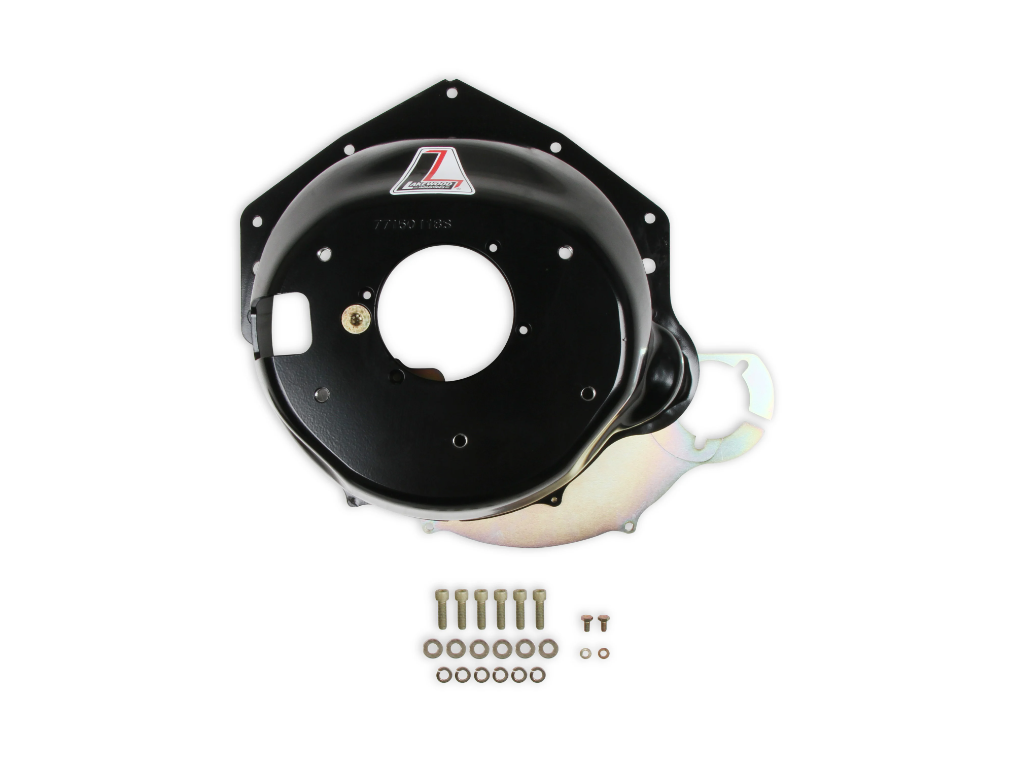

Lakewood Bellhousing For 1958-1987 GM mid/full SBC BBC w/ Muncie Saginaw T10 TKX
SKU:
77-150
SELECT FITMENT
See If This Product Fits Your Vehicle
- $749.95
- $749.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
The Lakewood 77-150 bellhousing connects small block and big block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10, and Tremec TKO or TKX transmissions. This bellhousing is designed to fit GM full and midsized vehicles from '58 - '87. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. The adapter bellhousing is an excellent choice for street rods, street machines, or truck applications where the use of a S.F.I. bellhousing is not necessary. This bellhousing does not include or accept an engine block plate.
OEM starters are recommended for ease of fitment. It is very important that the tooth count (153 or 168) of the starter match the tooth count of the flywheel to ensure proper engagement. Two primary options: a 12 3/4-inch flywheel (153 teeth) where the nose cone will have two attachment bolt holes across from each other (inline) and a 14-inch flywheel (168 teeth) where the attachment bolt holes will be offset (diagonal). This applies mainly to factory GM starters on passenger cars/light trucks and does not apply to later model versions (w/ gear reduction) or aftermarket and mini starters. Be sure to match your clutch to your flywheel as well.
Features:
- Designed For Mechanical Fork Linkage
- Bellhousing Depth: 6.312 in
- Clutch Fork Opening: 2.5 In X 3.75 In
- Transmission Bore Diameter 4.684 In
- Hydro formed Construction
- Made In The USA
- Works with 153 or 168 Flywheel
Specifications:
- Clutch Diameter: 11"
- Clutch Operation: Hydraulic or GM Mechanical
- Color: Black
- Emission Code: 5
- Engine: GM Big Block
- Engine Make: Chevrolet
- Flywheel: 153 or 168 Tooth
- Height: 6.3"
- Make: Chevrolet
- Material: Steel
- Product Type: Bellhousing
- SFI Approved: No
- SFI Certification: Not SFI Certified
- Trans. Bore Diameter: 4.685
- Transmission: BorgWarner, Muncie, Saginaw, T10, TKO 500/600 GM, TKX GM
- Transmission Type: Manual
- Weight: 32 lbs
Fitment:
- 1958-1987 GM Big Block and Small Block full and midsized vehicles with Muncie, BW T-10, Saginaw, TKO, or TKX Transmissions
Included:
- (1) Lakewood Bellhousing
- (1) Mounting Hardware
Note:
- Lifetime Limited Warranty
Product Specs
SKU:
77-150
Brand:
Lakewood Industries
part type:
Transmission
