Lakewood Industries

Lakewood Bellhousing For Chevy LS Small Block & Big Block BorgWarner Muncie T10

SKU: LK4000

SELECT FITMENT

See If This Product Fits Your Vehicle

$460.95
$460.95

Free Shipping

Free ground shipping on all orders over $99
Description

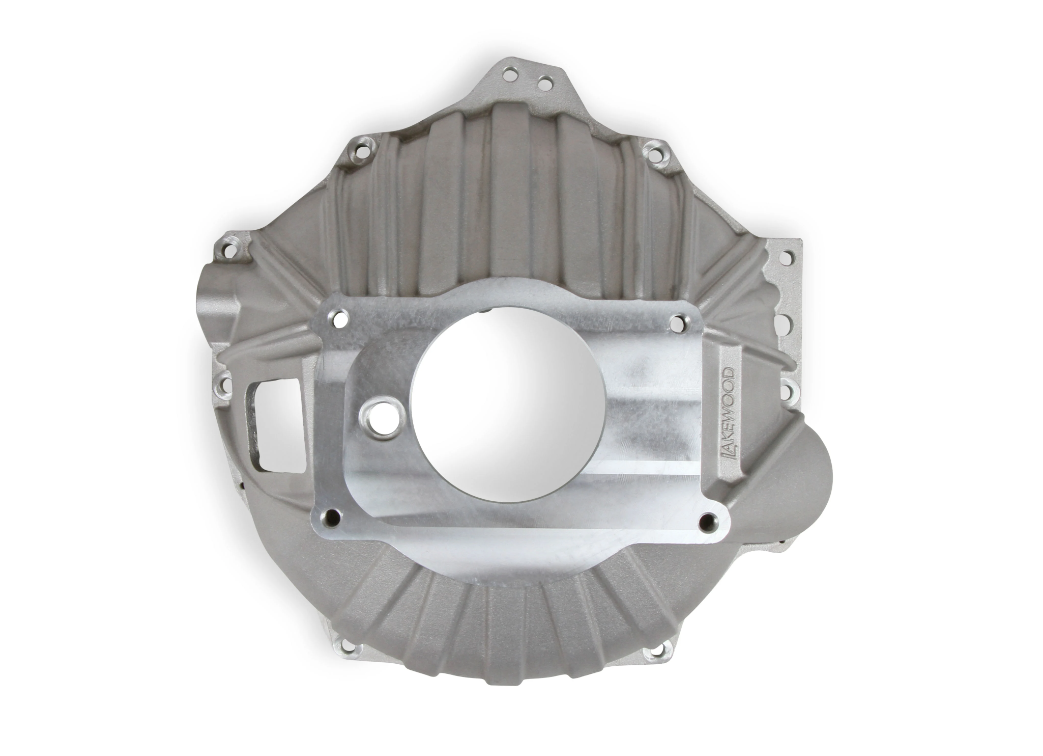

The Lakewood cast aluminum bellhousings connect Chevy small, big block, and LS engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10, and Tremec TKX or TKO transmissions. The bellhousings are designed for both GM cars and trucks and other manufacturers where swap applications are being installed.

OEM starters are recommended for ease of fitment. It is very important that the tooth count (153 or 168) of the starter match the tooth count of the flywheel to ensure proper engagement. Two primary options: a 12 3/4-inch flywheel (153 teeth) where the nose cone will have two attachment bolt holes across from each other (inline) and a 14-inch flywheel (168 teeth) where the attachment bolt holes will be offset (diagonal). This applies mainly to factory GM starters on passenger cars/light trucks and does not apply to later model versions (w/ gear reduction) or aftermarket and mini starters. Be sure to match your clutch to your flywheel as well.


Features:

  • Factory-like attachment for LS engines using a stock or Holley oil pan
  • Lightweight cast aluminum design similar to the original equipment bellhousings
  • Lower cost non-SFI rated option for projects that do not require a steel SFI rated unit
  • Designed For Hydraulic and Mechanical Fork Throwout Bearing Linkage
  • Bellhousing Depth: 6.45 in
  • Clutch Fork Opening: 2.125 In X 3.3 In
  • Transmission Bore Diameter: 4.684 In



Specifications:

  • Brand: Lakewood
  • Clutch: 11 inch
  • Emission Code: 5
  • Engine Make: Chevrolet
  • Flywheel: 153 Tooth, 168 Tooth
  • Height: 6.3 inch
  • Make: Chevrolet
  • Material: Cast Aluminum
  • Product Type: Bellhousing
  • Sale Category: Transmission and Drivetrain
  • SFI Approved: No
  • Trans. Bore Diameter: 4.685
  • Transmission: Bert Racing, BorgWarner, Brinn Racing, Falcon, Jerico, Muncie, Richmond, Saginaw, T10, T5 GM, TKO 500/600 GM, TKX GM
  • Transmission Type: Manual



Fitment:

  • Chevrolet Small Block Gen I, GM Big Block, GM Gen III/IV (LS)



Included:

  • (1) Lakewood Bellhousing



Note:

  • No hardware included
  • Tested with O.E. (original equipment) style single disc 11-inch clutch
  • Manual linkage/Z-Bar/manual clutch bell crank linkage bracket holes are 1/2-13 UNC



Fitment
Fitment

Product Specs

SKU:
LK4000
Brand:
Lakewood Industries
part type:
Transmission
