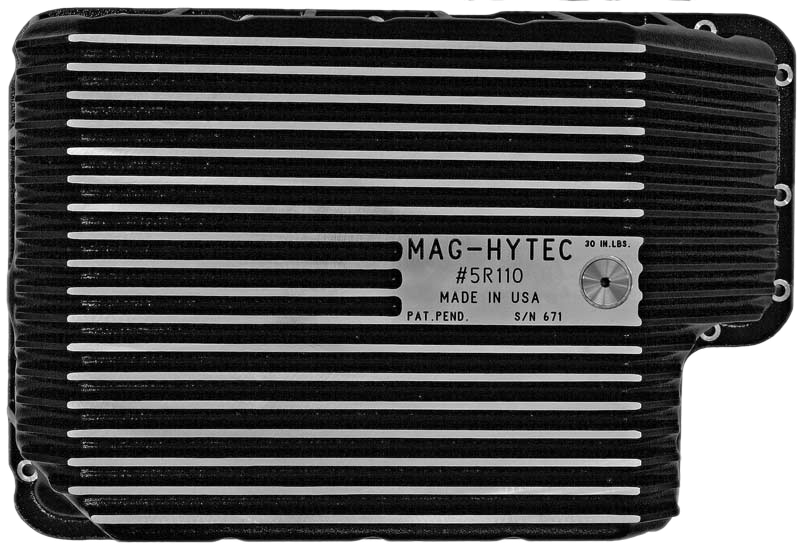

Mag-Hytec 5R110 Deep Transmission Pan For 03-07 Ford Super Duty 6.0L Powerstroke

The Mag-Hytec F5R110 Transmission Pan adds additional fluid and cooling to the 5R110 Transmission in your 2003-2007 Ford 6.0L Powerstroke. Built from a cast aluminum construction, this transmission pan has a finned design to aid in cooling as the fins help remove heat from the fluid. The added rigidity can also help to add strength to the case of your transmission. The built-in drain plug also allows you to eliminate the mess when changing transmission fluid and the 1/8” NPT port allows you an easy access point for a transmission temperature gauge sender if you choose to install one. Uses Ford factory transmission pan filter (not included).

Features:

• Lifetime Warranty
• Magnetic drain plug
• Overall Pan height is 6 1/8"
• Includes Bolt Kit & Drain Plug
• 1/8 NPT temperature sender port
• Finned aircraft aluminum construction
• O-rings require no gaskets or sealants
• Holds 8.3 quarts more fluid than stock pan
• Deep high-capacity sump for maximum cooling
• 303 hardware except Allen head cap screws are zinc plated
• Requires only three allen key wrenches (included) for installation and service

Fitment:

• 2003-2007 Ford F-250/F-350/F-450/F-550 6.0L Powerstroke 5R110 Transmission
• 2008 Ford F-250/F-350/F-450/F-550 6.4L Powerstroke 5R110W Transmission

Note:

• Does NOT include Transmission filter
• Fits 2008 models years built before 05/21/2007 ONLY!
