Mishimoto 10 Inch Race Line High-Flow Electric Fan Kit - Universal
SKU:
MMFAN-10HD
SELECT FITMENT
See If This Product Fits Your Vehicle
- $174.00
- $174.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Provide your radiator with the maximum amount of airflow with our new 10in Race Line fan. Our Race Line fans were designed for heavy-duty applications where a Slim Line fan just won't cut it. However, this robust fan is still thin enough to fit between your engine and radiator in most applications and provides 1600 CFM of airflow to cool the largest and most powerful of engines! For universal installation, use the Mishimoto Electric Fan Mounting Kit.
Features:
- High-flow fan provides increased airflow
- Compact design with a housing diameter of 11-in and an overall thickness of 3.85-in provides sufficient clearance in the engine bay
- Mishimoto Lifetime Warranty
Specifications:
- CFM: 1600
- Depth (in) 3.85
- Diameter (in) 10
- RPM: 3000
- Amp Draw (Running) 10
- Blade Style: Straight
- Airflow Direction: Pull
- Wiring Connection: Female Snap-Plug Terminal
Fitment:
- Universal

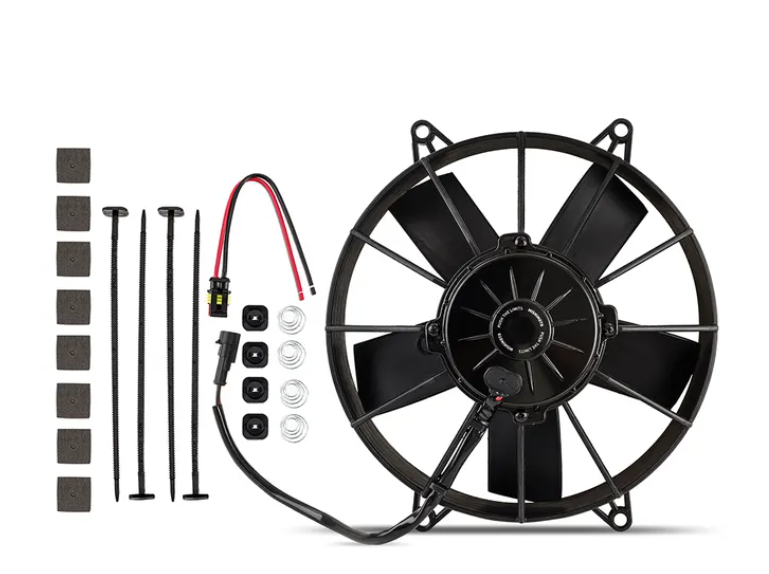

Included:
- (1) Mishimoto 10" Race Line Fan
- (4) Heavy-Duty Plastic Fasteners
- (8) Adhesive Foam Protective Pads
- (4) Dampening Springs
- (4) Fastener End Connectors
Note:
- Mishimoto recommends the use of a fan shroud for optimal operation
- Reversing polarity can enable pusher functionality, but the original design optimization for puller configuration may limit performance. Long-term effects of this configuration are uncertain
