Mishimoto 16 Inch Race Line High-Flow Electric Fan Kit - Universal
SKU:
MMFAN-16HD
SELECT FITMENT
See If This Product Fits Your Vehicle
- $243.00
- $243.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

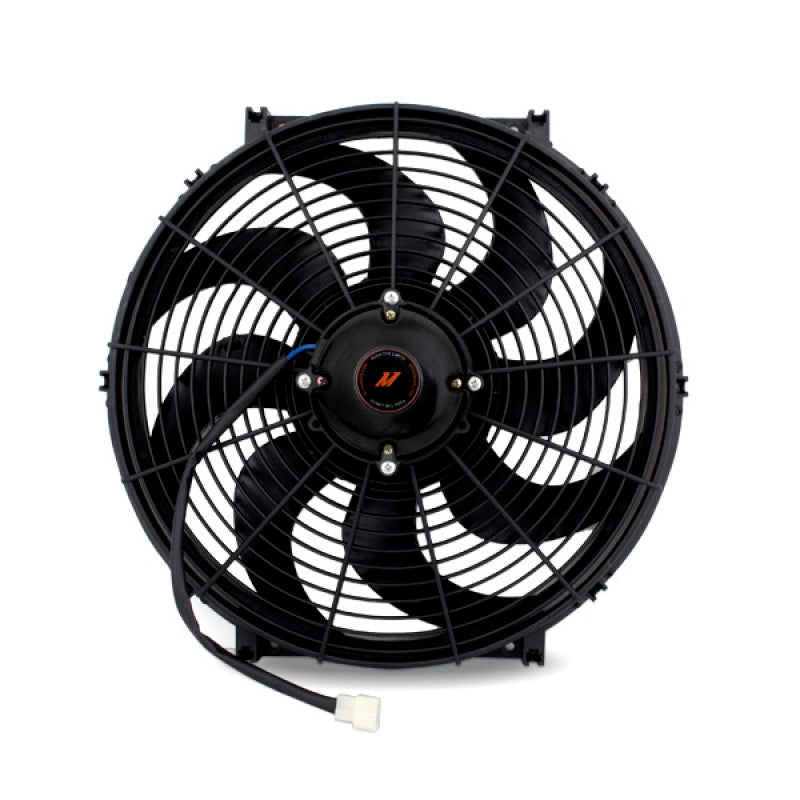

Provide your radiator with the maximum amount of airflow with our new 16in Race Line fan. Our Race Line fans were designed for heavy-duty applications where a Slim Line fan just won't cut it. However, this robust fan is still thin enough to fit between your engine and radiator in most applications and provides 2200 CFM of airflow to cool the largest and most powerful of engines! For universal installation, use the Mishimoto Electric Fan Mounting Kit.
Features:
- High-flow fan provides increased airflow
- Compact design with a housing diameter of 16-in and an overall thickness of 4.35-in provides sufficient clearance in the engine bay
- Mishimoto Lifetime Warranty
Specifications:
- CFM: 2200
- Depth (in) 4.35
- Diameter (in) 16
- RPM: 2000
- Amp Draw (Start) 22.1
- Amp Draw (Running) 18
- Blade Style: Curved
- Airflow Direction: Pull
- Wiring Connection: Yazaki Tab Terminal
Fitment:
- Universal
Included:
- (1) Mishimoto 16" Race Line Fan
- (4) Heavy-Duty Plastic Fasteners
- (8) Adhesive Foam Protective Pads
- (4) Dampening Springs
- (4) Fastener End Connectors
Note:
- Mishimoto recommends the use of a fan shroud and additional hardware in addition to the included mounting kit for a secure installation
- Reversing polarity can enable pusher functionality, but the original design optimization for puller configuration may limit performance. Long-term effects of this configuration are uncertain
Product Specs
SKU:
MMFAN-16HD
Brand:
Mishimoto
