Mishimoto Baffled Oil Catch Can Kit (PCV Side) For 2007-2013 Mazda 3 Mazdaspeed

Add a layer of protection to your 2007-2013 Mazdaspeed 3 with the Mishimoto Baffled Oil Catch Can Kit. While the MS3 might have been one of the pioneers in the North American hot-hatch renaissance in the mid-2000s, but like the rest of the direct injected turbo charged engines of that era, It suffered from copious carbon build up due to engine blow-by. The 2.3L MZR turbo also has a unique issue with blow-by as It's equipped with a top-mounted intercooler which is prone to heat soak effectively baking in all of the oil and fuel droplets into the heat exchanger. With the Mishimoto Baffled Oil Catch Can Kit, those crank-case gases are intercepted before even reaching the intercooler in the 6061-billet aluminum can. We also included our taller 7.5 oz. catch can to compensate for the increased levels of blow-by that the Mazdaspeed 3 experiences in colder weather. Also included in the kit are pre-formed hoses along with all of the necessary mounting hardware to ensure a simple, and direct fit to your MS3. As with all of our products, the Mazdaspeed 3 Baffled Oil Catch Can Kit is covered under the Mishimoto Lifetime Warranty, keeping your 2.3L MZR Turbo blow-by free over the lifetime of the car.

Features:

• Direct fit for the 2007-2009 Mazdaspeed 3
• Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
• Installs in under 30 minutes
• Robust, application-specific bracket mounts the can in a serviceable location
• Catch can has an extra large 7.5 oz. capacity for longer servicing intervals
• Molded hoses include pre-installed check valve for a true plug-and-play install
• Defends intake system and essential components from oil blow-by
• Helps maintain proper octane levels to reduce potential detonation
• Billet 6061 aluminum sealed can is fully serviceable
• Internal air diverter increases air turbulence to improve oil separation
• Mishimoto Lifetime Warranty

Fitment:

• 2007-2009 Mazda 3 Mazdaspeed 2.3L

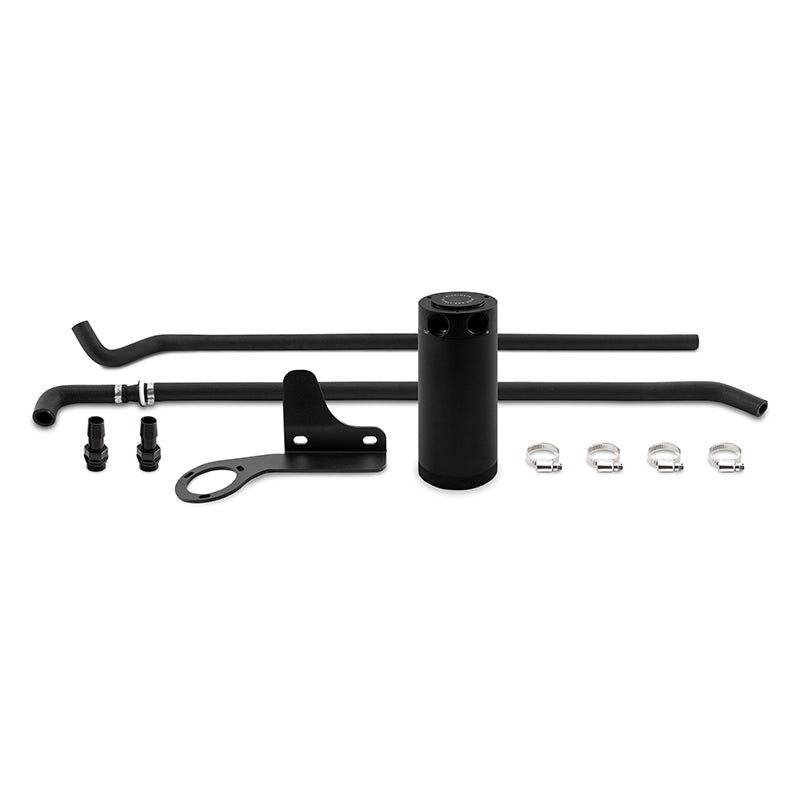

Included:

• (1) Large Baffled Oil Catch Can
• (1) Application Specific Mounting Bracket
• (2) Direct-Fit Hoses with Integrated Check Valve
• (4) Worm-Gear Clamps
• (2) 1/2-in Aluminum Barbed Fittings
• Mounting Hardware

Note:

• After installation, Mishimoto recommends checking the contents of the baffled catch cans every 500 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle
• 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs (3NM)
