Mishimoto Black High-Mount Intercooler Kit For 2021-2023 Ford Bronco 2.3L/2.7L

The Ford Bronco has a heritage of tough, go-anywhere capability. The 2021+ Bronco is no different and deserves a cooling system that can stand up to the task. Here at Mishimoto, we never back down from a challenge, so we developed a high-mount intercooler to let your 2.3L or 2.7L EcoBoost breathe the coolest, densest air possible to help improve performance and overall efficiency. We relocated this high-mount intercooler to the upper grille to allow greater clearance, improved entry and exit angle, and protect your intercooler from obstacles on the trail. This relocation also frees up your front bumper for winches and other essential off-road accessories. We've also included new ducting to ensure ample airflow through the intercooler in its new location. The Mishimoto High-mount Intercooler features a 3.1 inch-thick core with precision TIG-welded cast aluminum end tanks. Compared to the factory tube-and-fin intercooler, durability against heat, pressure, and debris on the road or trail is significantly improved.

More durability is always a good thing, but it's even better when it's backed by performance. This high-mount intercooler boasts an increase of 49-percent core volume and 93-percent external fin surface area, which results in a reduction of outlet temperatures by 21-degrees (2.3L EcoBoost) / 15.5-degrees (2.7L EcoBoost) over stock. Combined, this generates gains of 4.5 hp and 10.8 lb-ft of torque for the 2.3L EcoBoost and 8.0 hp and 10.2 lb-ft torque for the 2.7L EcoBoost. We saw exceptional improvement in our trail simulation heat-soak testing where, after 6 back-to-back dyno runs, we still saw outlet temperatures 20-degrees cooler than stock. Functionality of adaptive cruise control is retained utilizing a relocation bracket and 360-degrees cameras are unaffected. As with all our products the Mishimoto 2021+ Ford Bronco High-mount Intercooler is backed by our signature Mishimoto Lifetime Warranty.

Features:

• Direct fit for 2021+ Ford Bronco 2.3/2.7L
• Relocates intercooler for better airflow with winches, lights, and other off-road accessories
• Dyno-proven max gains of 4.5 hp and 10.8 lb-ft (2.3L EcoBoost) / 8.0 hp and 10.2 lb-ft torque (2.7L EcoBoost)
• Up to 21-degree reduction in outlet temperature over stock intercooler
• Included ducting provides ample airflow through core
• Detachable inlet for easy installation
• Allows for improved clearance, entry and exit angle, and protects intercooler from obstacles
• Optimal core design for maximum cooling efficiency with minimal pressure drop
• Durable bar-and-plate core for superior durability and performance
• Cast aluminum end tanks and serrated adapters for increased pressure tolerance and reliability
• 49-percent increase in core volume
• 93-percent increase in fin surface area
• Includes adaptive cruise control relocation mount and does not interfere with 360-degree cameras
• Available in stealth black powder coat finish
• Mishimoto Lifetime Warranty

Specifications:

• Overall Length (in) 35.82
• Overall Height (in) 18.6
• Overall Width (in) 6.15
• Core Type: Bar-and-Plate
• Core Thickness (in) 3.15
• Core Length (in) 21.26
• Core Height (in) 8.8
• Inlet (in) 3
• Outlet (in) 3

Fitment:

• 2021-2023 Ford Bronco 2.3L/2.7L EcoBoost

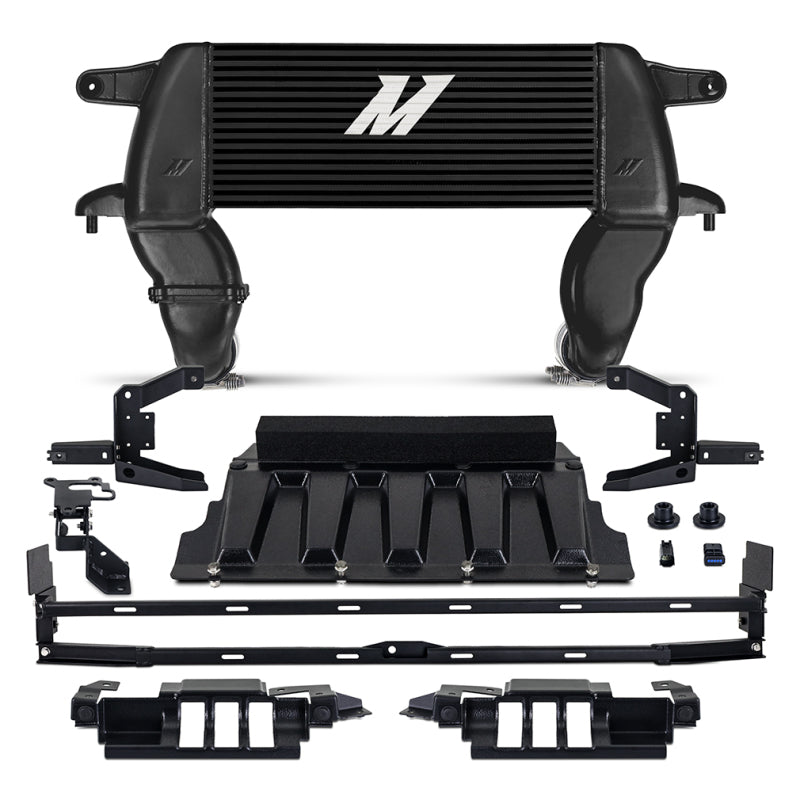

Included:

• Mishimoto High-Mount Intercooler
• Silicone Couplers
• CNC-Machined Intercooler Pipe Adapters
• Worm Gear Clamps
• Grille Shutter Connectors
• Intercooler Ducting
• Adaptive Cruise Control Relocation Mount
• Mounting Brackets and Hardware

Note:

• Not For Sale Or Street Use In California
• Does not fit Raptor Bronco with 3.0L EcoBoost
• Adaptive cruise control may function to a lesser degree compared to stock interooler setup
