Mishimoto Performance Radiator For 08-21 Subaru WRX/STI/Forester/Outback/Legacy
SKU:
MMRAD-STI-08X
SELECT FITMENT
See If This Product Fits Your Vehicle
- $451.00
- $451.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

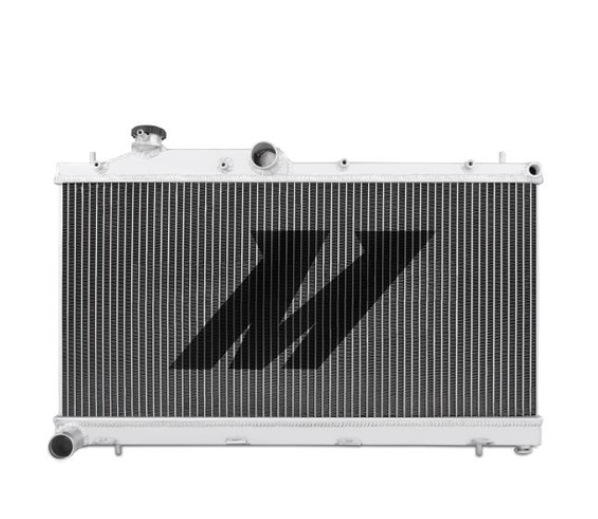

The Mishimoto X Line performance aluminum radiator for the 2008-2014 Subaru WRX/2008-2021 STI is designed with a larger 3 row core to maximize cooling efficiency, boost engine functions, and most importantly protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator whether you drive your vehicle daily or take it for track runs. The Mishimoto aluminum 2008-2014 Subaru WRX/STI 2008-2021 radiator features a lightweight triple core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct OEM fit making installation effortless with no cutting or modification required. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.
Features:
- Premium radiator has 3-row (2-in thick) core for improved strength and reliability
- 16-percent thinner-than-stock tubes allow for more surface contact, increasing cooling efficiency
- Greater density of rows for higher cooling capacity
- More contact points for additional heat transfer
- 3-row design creates more air turbulence, maximizing cooling efficiency
- Includes magnetic drain plug
- Includes a high-pressure 1.3 bar
- Mishimoto radiator cap
- Mishimoto Lifetime Warranty
Specifications:
- Overall Height (in) 28
- Overall Length (in) 21.8
- Overall Width (in) 2.5
- Core Length (in) 13.39
- Core Height (in) 27.09
- Rows: 3
- Inlet (in) 1.54
- Outlet (in) 1.54
- Core Thickness (in) 2
- Drain Plug Thread Size: M12 x 1.5
- DPI: 13091/13093
- Engine Codes: EJ255 / EJ257
- Chassis Codes: GE / GH
Fitment:
- 2008-2014 Subaru WRX 2.5L - Manual
- 2008-2021 Subaru STI 2.5L - Manual
- 2009-2013 Subaru Forester XT 2.5L - Manual
- 2005-2009 Subaru Outback XT 2.5L - Manual
- 2005-2009 Subaru Legacy GT 2.5L - Manual
Included:
- Mishimoto Performance Aluminum Radiator
- Mishimoto Magnetic Drain Plug
- Mishimoto Radiator Cap
- Overflow Nipples - 2
Use Small Fitting For:
- 2008-2009 Subaru WRX
- 2008-2021 Subaru STI
Use Large Fitting For:
- 2010-2014 Subaru WRX
- 2005-2009 Subaru Legacy GT
- 2005-2009 Subaru Outback XT
- 2009-2013 Subaru Forester XT
Note:
- This item is for Manual Transmission vehicles
- For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit
- The provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur
- It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation
