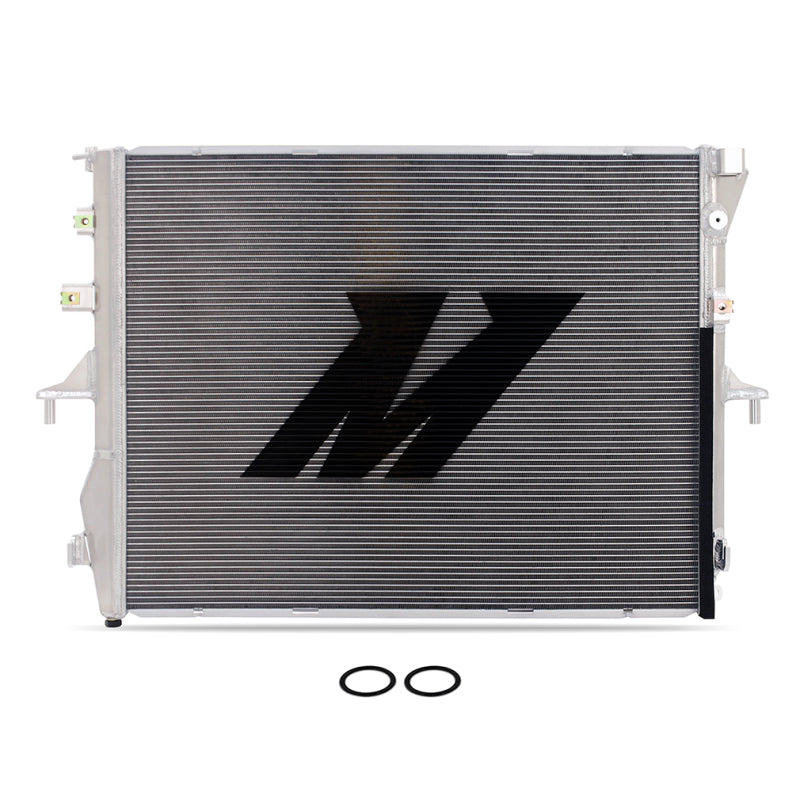

Mishimoto Performance Radiator For 2003-2010 Audi Q7/VW Touareg/Porsche Cayenne
SKU:
MMRAD-CAY-03
SELECT FITMENT
See If This Product Fits Your Vehicle
- $977.00
- $977.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Engineered specifically for the 2003-2010 Porsche Cayenne, Mishimoto's Direct-Fit Performance Radiator is ideal for optimal vehicle cooling. Its single-row 40mm core and 3.4L fluid capacity maximize coolant flow, while strutted tubes and OEM-style louvered fins enhance durability and airflow. A curved header plate and Porsche-specific expansion joints increase strength and longevity. Featuring a unique billet aluminum fan shroud lock, thicker mounting points, a CNC-machined inlet and outlet, and a slotted magnetic drain plug. No modifications are required for a hassle-free installation. This radiator delivers exceptional performance and durability without compromising on ease of use.
Features:
- Single row 40mm core maximizes coolant flow area for optimal performance
- Strutted tubes ensure the strength of the radiator for robust durability
- OEM-style louvered fin design to enhance airflow and cooling
- Curved header plate enhances the core geometry to support increased strength, better-brazed connection, and larger contact area
- Expansion joints explicitly designed for Porsche performance, aiding in a reduction of stress on the radiator and extending the overall lifespan
- The radiator has a 3.4L fluid capacity, allowing for more fluid cooling over stock
- The unique fan shroud locking mechanism is constructed from billet aluminum to mimic stock mounting for ease of installation
- Updated thicker and stronger mounting points for the radiator, AC condenser, and transmission cooler
- CNC-machined inlet and outlet for smooth airflow and sized to connect to OE-style hose fittings
- Slotted magnetic drain plug makes services mess-free
- Includes foam sealing for more efficient cooling and fitment
- Modifications are not needed, allowing for an easier installation process
Specifications:
- Overall Length (in) 36.38
- Overall Width (in) 4.74
- Core Length (in) 27.95
- Core Height (in) 21.77
- Fluid Capacity (gal) 0.9
- Rows: 1
- Inlet (in) 1.52
- Outlet (in) 1.52
- Core Thickness (in) 1.5748
- Drain Plug Thread Size: M12x1.5
- DPI: 2756
- Material: Aluminum
- Engine Codes: M4801, M5501, M02.2Y, M48.00, M4851, M4851S
- Chassis Codes: PL71
Fitment:
- 2009-2015 Audi Q7 3.0L V6
- 2007-2010 Audi Q7 3.6L V6
- 2007-2010 Audi Q7 4.2L V8
- 2004-2006 Porsche Cayenne 3.2L V6
- 2008-2010 Porsche Cayenne 3.6L V6
- 2003-2006 Porsche Cayenne 4.5L V8
- 2008-2010 Porsche Cayenne 4.8L V8
- 2009-2010 Volkswagen Touareg 3.0L V6
- 2004-2006 Volkswagen Touareg 3.2L V6
- 2007-2010 Volkswagen Touareg 3.6L V6
- 2004-2009 Volkswagen Touareg 4.2L V8
- 2004 Volkswagen Touareg 4.9L V10
- 2005-2008 Volkswagen Touareg 5.0L V10
Included:
- (1) Performance Aluminum Radiator
- (2) O-Rings
- Required Install Hardware
Note:
- Lifetime Warranty
Product Specs
SKU:
MMRAD-CAY-03
Brand:
Mishimoto
