Mishimoto Silver Performance Intercooler For 17-19 GMC/Chevrolet 6.6L Duramax

Mishimoto has expanded our line of Duramax performance parts to include a performance intercooler for the 2017-2019 Chevrolet/GMC 6.6L Duramax L5P.

High intake temperatures can reduce performance and potentially cause engine damage if left unchecked. Protect your investment by upgrading to the Mishimoto 6.6L Duramax L5P performance intercooler. This Duramax intercooler is precision engineered with durable cast-aluminum end tanks that resist cracking under high temperatures and boost pressures.

The massive 68mm-thick bar-and-plate core is 70% thicker than stock and is designed for maximum cooling. In addition, the larger core reduces restriction by over 64% compared to the stock intercooler. We've also increased the size of the intercooler inlet and outlet by 6mm and 12mm, respectively, to improve flow even more.

Included with this intercooler is an adapter cold-side pipe with DuraCore™ boot and constant-tension T-bolt clamps. Two additional bungs on the adapter pipe can be drilled and tapped for sensors or water/meth injection. Offered in Sleek Silver or Stealth Black powder-coated finish, the Mishimoto 6.6L Duramax intercooler, like all our Duramax performance parts, is protected by our signature Mishimoto Lifetime Warranty.

Features:

• Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
• Reduces restriction by over 64-percent over stock intercooler
• 68mm-thick bar-and-plate core is 70-percent thicker than stock for maximum cooling
• Larger inlet and outlet reduce restriction for improved flow
• Robust cast-aluminum end tanks resist cracking under high heat and pressure
• Includes cold-side adapter pipe with DuraCore boot and constant-tension T-bolt clamps
• Adapter pipe includes 2 bungs that can be drilled and tapped for sensors or water/meth injection
• Durable silver powder-coated finish
• Patent Pending
• Mishimoto Lifetime Warranty
• Product Description

Specifications:

• Engine Codes: L5P
• Chassis Codes: GMT K2
• Overall Length (in) 45.8
• Overall Height (in) 23.85
• Overall Width (in) 4.92
• Core Type: Bar-and-Plate
• Core Thickness (in) 2.67
• Core Length (in) 22
• Core Height (in) 12
• Inlet (in) 3
• Outlet (in) 3.25

Fitment:

• 2017-2019 GMC Sierra 2500/3500 6.6L Duramax
• 2017-2019 Chevrolet Silverado 2500/3500 6.6L Duramax

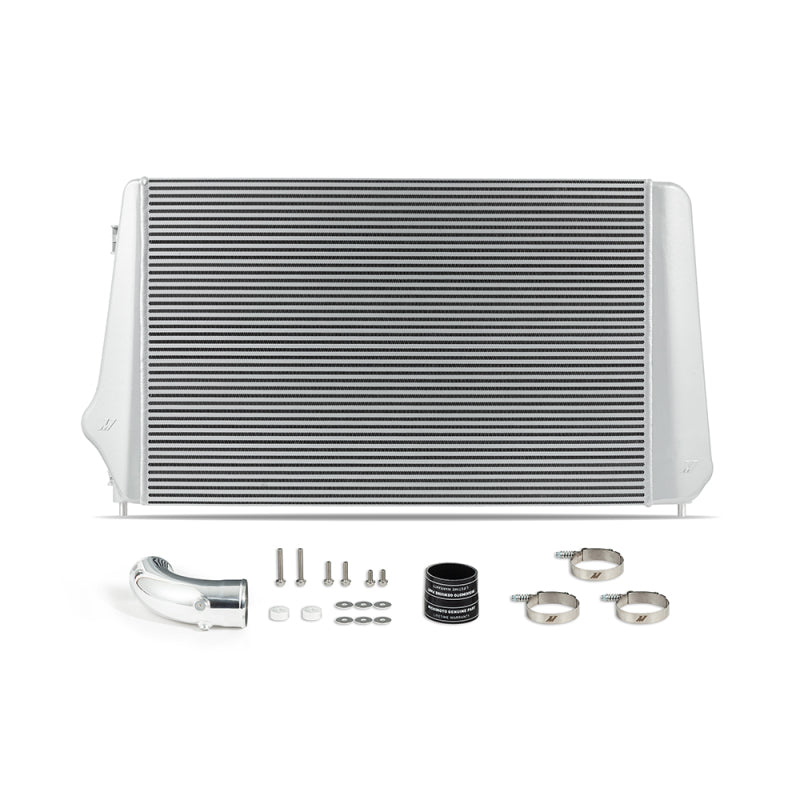

Included:

• (1) Mishimoto Silver Intercooler
• (1) Cold-Side Intercooler Pipe Adapter
• (1) Cold-Side Intercooler Boot
• (3) Constant-Tension T-Bolt Clamp
• (2) Intercooler Core Spacer
• (2) M8 X 1.25 X 20mm Bolt
• (2) M8 X 1.25 X 35mm Bolt
• (2) M8 X 1.25 X 60mm Bolt
• (6) M8 Washer

Note:

• Not For Sale Or Street Use In California
• Some trimming of the fan shroud may be required for installation
• 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM)
