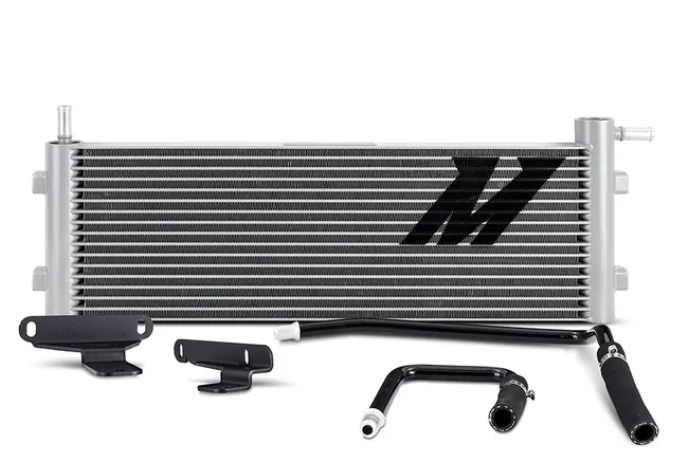

Mishimoto Transmission Cooler For 10-13 Dodge Ram 2500/3500 5.7L/6.7L Cummins

Mishimoto’s transmission cooler is designed to be a direct fit for the 2010-2012 Dodge 2500/3500 6.7L Cummins and features a tube and fin design optimal for heavy load towing and rapid load changes. This transmission cooler boasts a 60% increase in core volume and an 86% increase in external fin area for superior cooling and heat dissipation. It also pairs with an optional line kit that helps bypass the factory transmission cooler, as a transmission failure can contaminate that.

Features:

• Direct fit for the 2010-2012 Dodge 2500/3500 5.7L/6.7L Cummins
• Available optional line kit to bypass OEM cooler and integrated A/C condenser
• 60% increase in core volume for superior cooling capability
• Works with stock and Mishimoto transmission coolers
• 86% increase in external fin area for improved heat dissipation
• Tube and fin design perfect for heavy towing and rapid load changes

Specifications:

• Overall Height (in) 7.87
• Overall Length (in) 22.48
• Overall Width (in) 1.54
• Core Length (in) 19.29
• Core Height (in) 6.18
• Core Construction: Tube-and-Fin
• Fluid Capacity (qts) 0.7
• Rows: 15
• Inlet (in) 1/2
• Outlet (in) 1/2
• Core Thickness (in) 1.26

Fitment:

• 2010 Dodge Ram 2500 5.7L V8
• 2010 Dodge Ram 2500 6.7L L6
• 2010 Dodge Ram 3500 6.7L L6
• 2011-2013 Ram 2500 6.7L L6
• 2011-2012 Ram 2500 5.7L V8
• 2011-2013 Ram 3500 6.7L L6
• 2011-2012 Ram 3500 5.7L V8

Included:

• (1) Mishimoto Transmission Cooler
• (1) Mounting Bracket & Hardware Kit
• (1) Line Kit - Small, not suitable for bypass

Note:

• Lifetime Warranty
