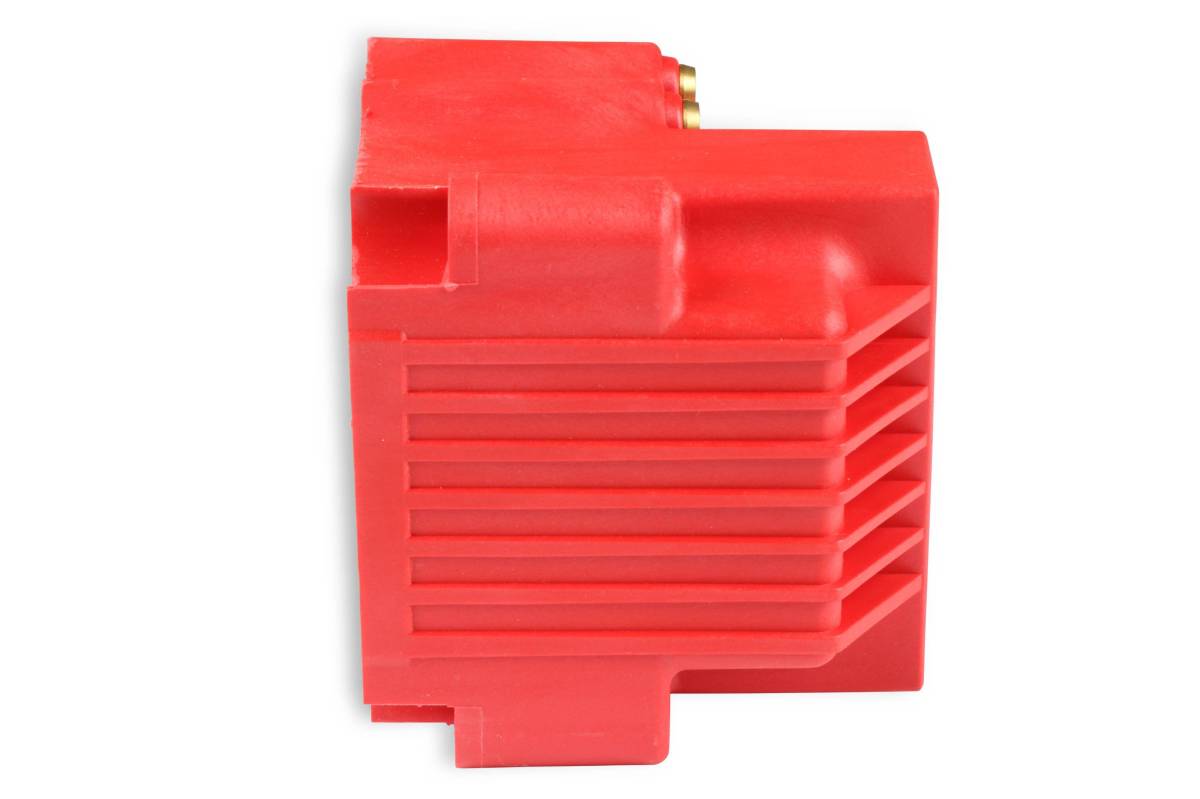

MSD Ignition Coil - HVC-2 Series - Red - Universal
SKU:
8261
SELECT FITMENT
See If This Product Fits Your Vehicle
- $373.95
- $373.95
$0.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration.
Features:
- Designed for racing applications with an MSD 7 or 8 Series Ignition Control
- New U-core winding design produces more voltage and current
- 70:1 turns ratio and lower primary resistance produce high voltage output
- Windings are encased in fracture resistant compound for vibration resistance
- Dupont Rynite housing with isolated tower and brass primary terminals
- Supplied with rubber shock mounts
Specifications:
- Brand: MSD
- Color: Red
- Emission Code: 4
- Inductance: 0.250 mH (millihenries)
- Maximum Voltage: 45,000 Volts
- Peak Current: 2 Amps
- Primary Resistance: 0.016 Ohms
- Product Type: Coil
- Sale Category: Ignition
- Secondary Resistance: 30 Ohms
- Spark Duration: 150 microseconds (uS)
- Turns Ratio: 70:1
- Type: Drag Race / Long Duration Use
- Warranty: Limited 1 Year Warranty
- Weight: 3.75 lbs.
- Part Number: 8261
Fitment:
- Universal
