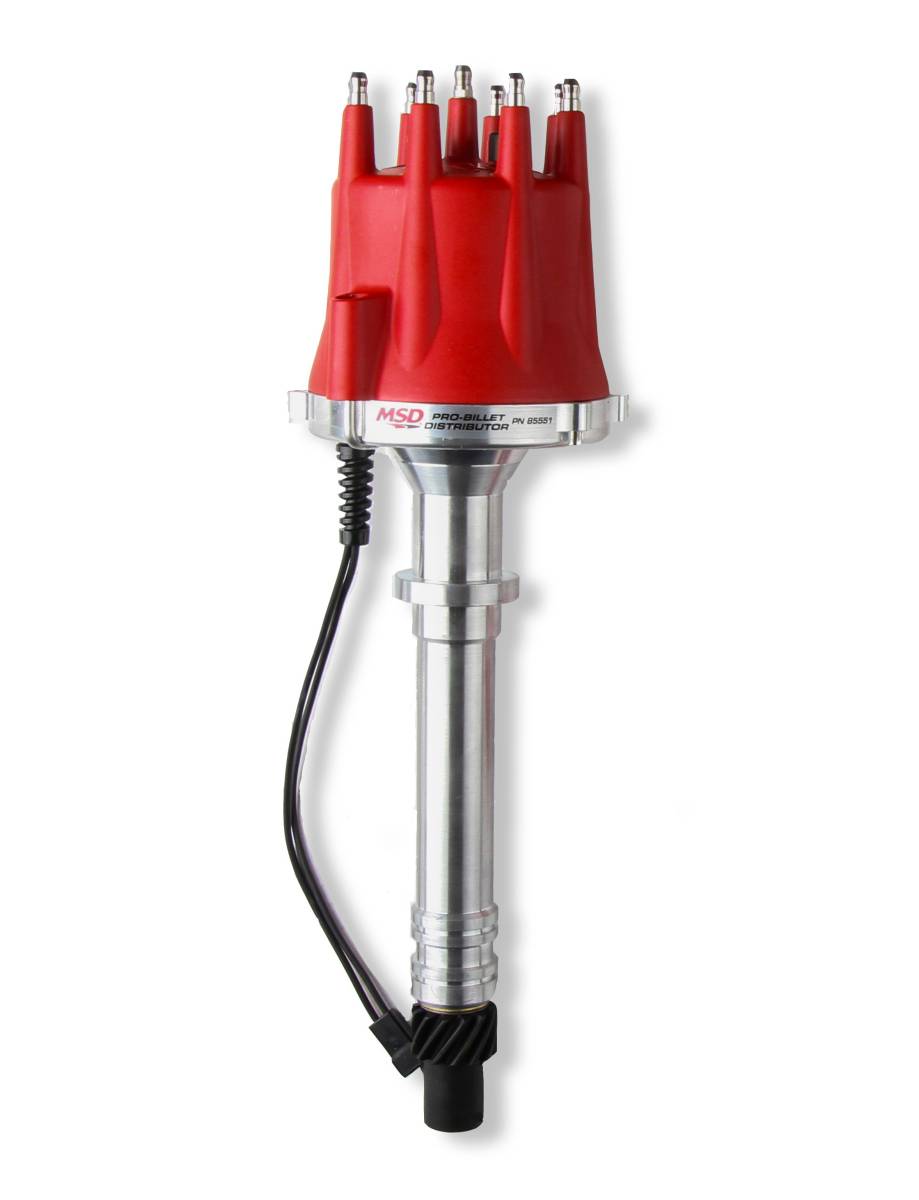

Image of MSD Magnetic Pickup Pro-Billet Distributor - Red - For 1975-1986 Chevrolet/GMC
Image of MSD Magnetic Pickup Pro-Billet Distributor - Red - For 1975-1986 Chevrolet/GMC
Image of MSD Magnetic Pickup Pro-Billet Distributor - Red - For 1975-1986 Chevrolet/GMC
Image of MSD Magnetic Pickup Pro-Billet Distributor - Red - For 1975-1986 Chevrolet/GMC
Image of MSD Magnetic Pickup Pro-Billet Distributor - Red - For 1975-1986 Chevrolet/GMC
Image of MSD Magnetic Pickup Pro-Billet Distributor - Red - For 1975-1986 Chevrolet/GMC
Image of MSD Magnetic Pickup Pro-Billet Distributor - Red - For 1975-1986 Chevrolet/GMC
Image of MSD Magnetic Pickup Pro-Billet Distributor - Red - For 1975-1986 Chevrolet/GMC
MSD Ignition

MSD Magnetic Pickup Pro-Billet Distributor - Red - For 1975-1986 Chevrolet/GMC

SKU: 85551

SELECT FITMENT

See If This Product Fits Your Vehicle

$399.95
$399.95
$0.00

Free Shipping

Free ground shipping on all orders over $99
Description

The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly.

Different springs and stop bushings are supplied so you can tune an advance curve to match your application.
Must be used with an MSD 6, 7 or 8-series ignition.

Features:

  • CNC machined billet aluminum housing and billet aluminum base
  • Will not accept a vacuum advance canister
  • Must be used with an MSD Ignition Control
  • Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Special oil tract improves lubrication to the distributor and cam gear
  • Nylon pads ensure smooth operation of the advance weights
  • Advance weight pins are staked and tig welded to the plate
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • No CARB Exemption Order Number

Specification:

  • Brand: MSD
  • C.A.R.B. EO #: D-40-39
  • Color: Red
  • Distributor Type: Magnetic Pickup
  • Emission Code: 1
  • Product Type: Distributor
  • Warranty: Limited 1 Year Warranty
  • Part Number: 85551

Fitment:

  • 1975-1986 CHEVROLET BEL AIR
  • 1975-1986 CHEVROLET C10 SUBURBAN
  • 1975-1986 CHEVROLET C20 SUBURBAN
  • 1975-1986 CHEVROLET CAMARO
  • 1975-1986 CHEVROLET CORVETTE
  • 1975-1986 CHEVROLET G10
  • 1975-1986 CHEVROLET G30
  • 1975-1986 CHEVROLET K10
  • 1975-1986 CHEVROLET K20
  • 1975-1986 CHEVROLET K30
  • 1975-1986 CHEVROLET LAGUNA
  • 1975-1986 CHEVROLET MONTE CARLO
  • 1975-1986 CHEVROLET NOVA
  • 1975-1986 CHEVROLET C10
  • 1975-1986 CHEVROLET C20
  • 1975-1986 CHEVROLET C30
  • 1975-1986 CHEVROLET CAPRICE
  • 1975-1986 CHEVROLET EL CAMINO
  • 1975-1986 CHEVROLET G20
  • 1975-1986 CHEVROLET IMPALA
  • 1975-1986 CHEVROLET K10 SUBURBAN
  • 1975-1986 CHEVROLET K20 SUBURBAN
  • 1975-1986 CHEVROLET K5 BLAZER
  • 1975-1986 CHEVROLET MALIBU
  • 1975-1986 CHEVROLET MONZA
  • 1975-1988 GMC C15
  • 1975-1988 GMC C1500
  • 1975-1988 GMC C25
  • 1975-1988 GMC C2500
  • 1975-1988 GMC C35
  • 1975-1988 GMC CABALLERO
  • 1975-1988 GMC G1500
  • 1975-1988 GMC G2500
  • 1975-1988 GMC G3500
  • 1975-1988 GMC K15
  • 1975-1988 GMC K1500
  • 1975-1988 GMC K25
  • 1975-1988 GMC C15 SUBURBAN
  • 1975-1988 GMC C1500 SUBURBAN
  • 1975-1988 GMC C25 SUBURBAN
  • 1975-1988 GMC C2500 SUBURBAN
  • 1975-1988 GMC C3500
  • 1975-1988 GMC G15
  • 1975-1988 GMC G25
  • 1975-1988 GMC G35
  • 1975-1988 GMC JIMMY
  • 1975-1988 GMC K15 SUBURBAN
  • 1975-1988 GMC K1500 SUBURBAN
  • 1975-1988 GMC K25 SUBURBAN
  • 1975-1988 GMC K2500
  • 1975-1988 GMC K35
  • 1975-1988 GMC SPRINT
  • 1975-1988 GMC K2500 SUBURBAN
  • 1975-1988 GMC K3500

Emissions:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.
The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
  • C.A.R.B. EO #D-40-39
Fitment
Fitment

Product Specs

SKU:
85551
Brand:
MSD Ignition
