MSD Tall Block Cam Sync Plug Hall-Effect For Chevy w/ Taller Deck V8

SKU: 85142

SELECT FITMENT

See If This Product Fits Your Vehicle

$435.95
$435.95
$0.00

Free Shipping

Free ground shipping on all orders over $99

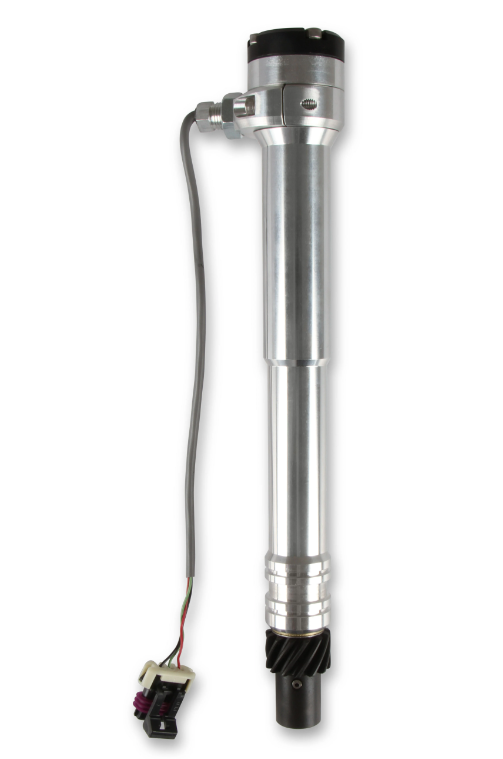

MSD's cam sync plugs are the perfect solution when running an aftermarket sequential EFI system with coil-per-cylinder ignition. The cam sync plug installs in place of a traditional distributor, providing a hall-effect cam sync signal needed for the EFI system to reference the # 1 cylinder. MSD's cam sync is a plug and play with Holley EFI systems and can easily interface with most aftermarket EFI systems. The cam sync plug will have 2-3/4" of adjustment.

MSD's Chevy extra tall cam sync plugs install in place of a traditional distributor to drive the oil pump and provide a cam sync signal when running a Holley EFI, or other aftermarket sequential EFI system requiring a cam sync signal.

Features:

  • Built-in L.E.D. makes set-up and indexing quick and easy
  • Plug-and-play with Holley EFI and compatible with other aftermarket EFI systems requiring a cam sync signal
  • CNC billet housing with black anodized cap provide good looks and excellent durability
  • Chevrolet version is supplied with a equivalent Melonized distributor gear and adjustable slip collar for blocks with a non-standard deck height
  • 2-3/4” of adjustment for different deck heights
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Special oil tract improves lubrication to the distributor and cam gear
  • Shaft is guided by a sealed ball bearing and an extra long sintered bushing

Specifications:

  • Brand: MSD
  • Product Type: Cam Sync
  • Distributor Type: Cam Sync Plug
  • Engine: Chevy Tall Deck
  • Sensor: Hall-Effect
  • Gear: Cast, Melonized
  • Emission Code: 5
  • Color: Black and Silver
  • Length: 12.4
  • Width: 8.4
  • Height: 4.6
  • Weight: 2.45

Fitment:

  • Chevrolet Tall Block V8 engines

Included:

  • (1) Cam Sync Distributor Plug
  • (1) Tube of Gear Lubricant (Except Chrysler)
  • (1) Slip Collar (Chevrolet)
  • (1) O-rings (Chevrolet)
  • (1) O-ring (Chrysler)
  • (1) O-ring (Ford) or Gasket (Chevrolet)
  • (1) 3-Pin Metripack Connector with Secondary Lock
  • (1) Metripack Terminals and Seals

Note:

  • Limited 1 Year Warranty
  • Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care

Product Specs

SKU:
85142
Brand:
MSD Ignition
