Oracle Lighting Integrated Windshield Roof LED Light Bar System For 2018-2025 Jeep Wrangler JL / 2020-2025 Jeep Gladiator JT Hard Top
SKU:
5917-023
- $1,255.00
- $1,255.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Light up the trail from your 2018-2025 Jeep Wrangler JL or 2020-2025 Jeep Gladiator JT with the Oracle Lighting Integrated Windshield Roof LED Light Bar System. Designed exclusively for JL and JT hardtops, the patented molded cowling blends into the factory roof line so the light bar looks like it came from the factory while it puts out 18,000 raw lumens.
Fitment Note:
- Hard-Top only
- Not compatible with Soft Top or One Touch Roof
- Avoid automatic car washes with overhead brushes
18,000 RAW LUMENS
Thirty individual 8W emitters with reflector-facing LED technology drive a 40 degree driving beam that reaches a peak intensity of 420,000 candela.
PATENTED MOLDED COWLING
Instead of hanging a traditional light bar off the roof, the patented cowling integrates with the factory roof line of JL and JT hardtops for a clean, OEM-style look. If the hard top is painted, the light bar housing can also be painted to match.
OVER 600 METERS OF REACH
The Wrangler JL and Gladiator JT light bar projects over 600 meters down the trail, with a 648 meter maximum range.
QUIETER AND MORE AERODYNAMIC
The cowl design runs quieter and more aerodynamic than a traditional light bar, and the housing carries an IP68 waterproof rating.
AMBER OR WHITE CLEARANCE LIGHTS
Selectable amber or white clearance lights can connect to an aux switch, parking lights or DRL.
Features:
- 18,000 raw / 14,200 effective lumens from 30x 8W LED emitters
- Patented integrated cowling blends into the Jeep JL roof line
- Projects 648 meters at 1 lux with 420,000 cd peak intensity
- Precision reflector-facing LED technology with a 40 degree beam
- Selectable amber or white clearance lights for a factory look
- 6030 aluminum lamp housing with polyester powder coat finish
- IP68 waterproof rating with stainless anti-fog breather valves
- Thermal management plus voltage and reverse polarity protection
Specifications:
- Brand: Oracle Lighting
- Product: Integrated Windshield Roof LED Light Bar
- LEDs: 30x 8W
- Raw Lumens: 18,000
- Effective Lumens: 14,200
- Total Wattage: 240W
- Amp Draw: 14A @ 12V DC
- Beam Angle: 40 Degree Driving Beam
- Color Temperature: 5500K
- Housing Color: Matte Black
- Lens: Lexan Polycarbonate
- Waterproof Rating: IP68
- Warranty: 1 Year

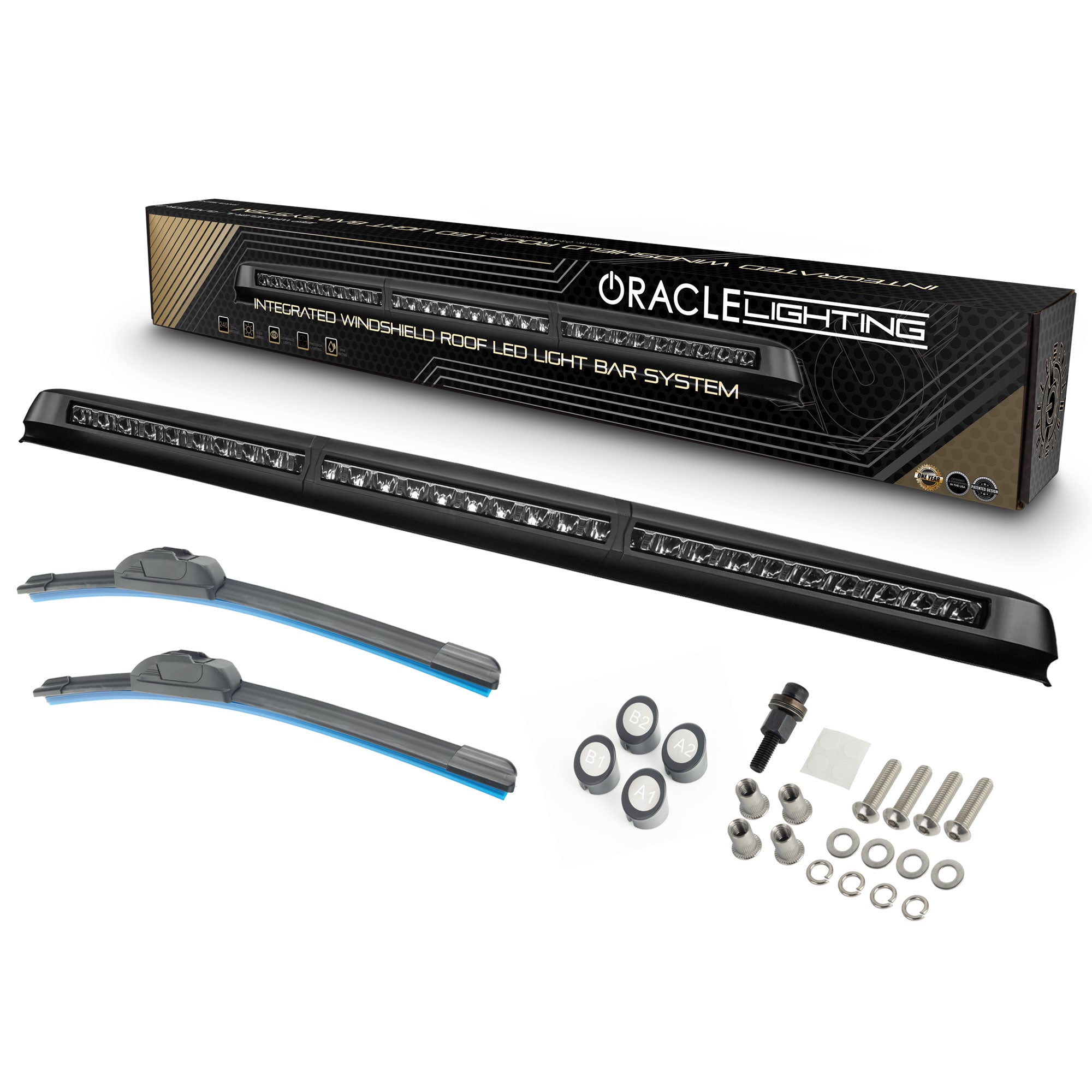

Included:
- (1) Integrated Windshield Roof LED Light Bar System
- (1) Mounting Hardware Set
- (1) Threaded Insert Installation Tool
Fitment:
- 2018-2025 Jeep Wrangler JL (Hard Top Only)
- 2020-2025 Jeep Gladiator JT (Hard Top Only)
Notes:
- 1 Year Warranty
- Overhead-brush car washes can damage roof-mounted light bars
- Warranty does not cover modifications, alterations, or misuse
- Ships matte black to match unpainted hard tops; housing is paintable
- Fits hard top models only; does not fit soft top or One-Touch roof models
