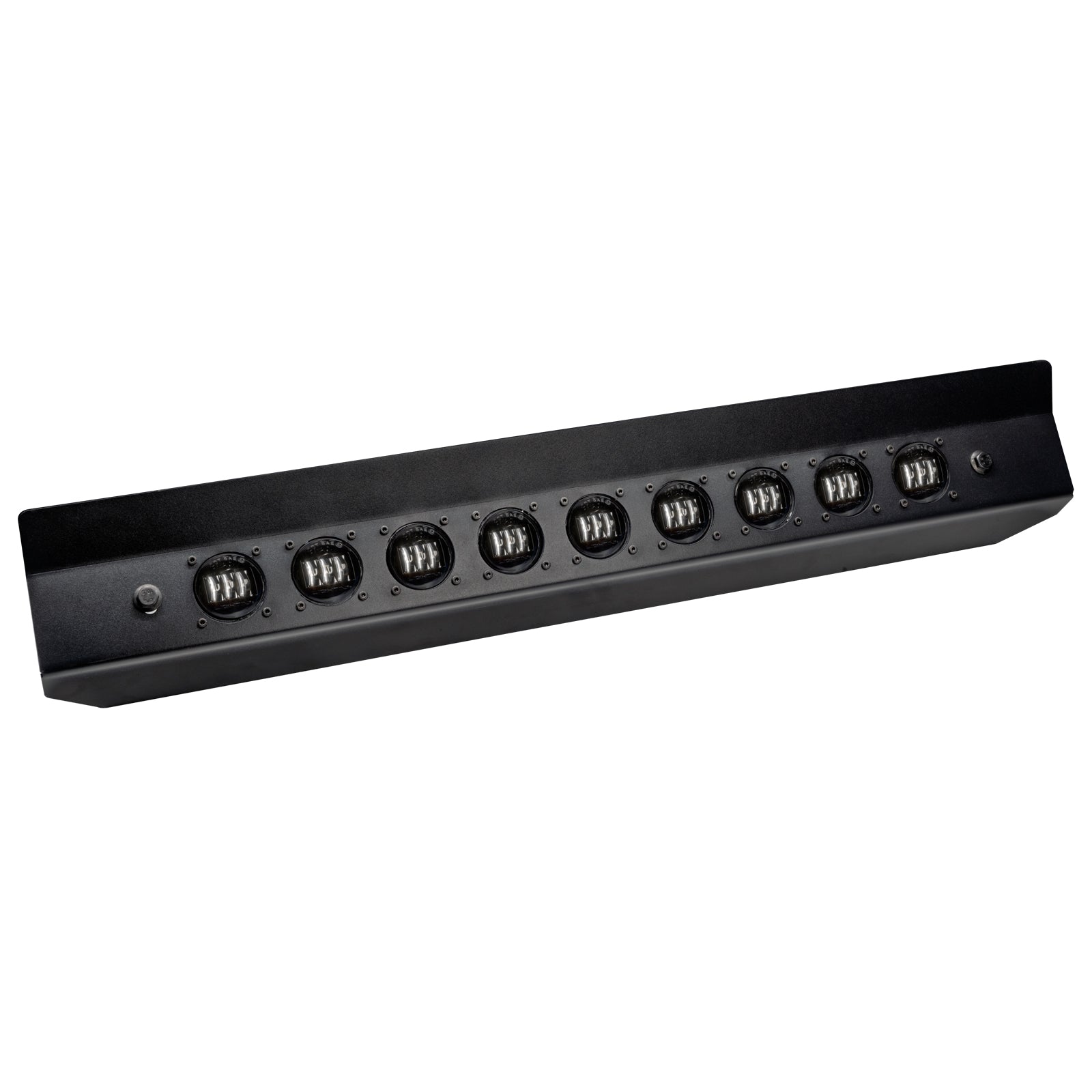

Oracle Lighting Skid Plate w/ Integrated LED Emitters Clear For 2018-2025 Jeep Wrangler JL / 2020-2025 Jeep Gladiator JT
SKU:
5883-001
- $615.99
- $615.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Protect the sway bar and steering box of your 2018-2025 Jeep Wrangler JL or 2020-2025 Jeep Gladiator JT and add trail lighting at the same time with the Oracle Lighting Skid Plate with Integrated LED Emitters. Nine 15W LED modules with clear lenses put out 9,000 lumens from a low mounting position.
Fitment Note:
- Designed for the factory-style Jeep bumper; may work with many aftermarket bumpers, but Oracle does not guarantee fitment with aftermarket winch or bumper setups
- Gladiator JT Mojave models require shock reservoir relocation
NINE 15W LED MODULES
The DOT, SAE and E9 marked modules use precision optics for a 30 degree beam, carry an IP68 rating and can each be replaced individually.
WHITE LED OUTPUT
The low mounting position puts light down any road or trail for better visibility from the Jeep.
3/16 INCH STEEL PROTECTION
Oracle forms the skid plate from 3/16 inch steel with a satin black powder coat for heavy-duty underbody protection.
SWITCHED RELAY WIRING HARNESS
The included switched relay harness runs the lights from a dedicated switch or connects directly to the factory AUX switches on equipped Jeeps.
NO-DRILL INSTALL
The no-drill install includes all necessary hardware.
Features:
- 3/16 inch steel skid plate with satin black powder coat
- Protects the Jeep JL/JT sway bar and steering box
- 9x high-output 15W LED emitters with 9,000 total lumens
- Precision optics for a 30 degree beam width
- DOT, SAE and E9 marked LED modules
- IP68 rating with individually replaceable modules
- Switched relay wiring harness or factory aux switch hookup
- No-drill installation with all hardware included
Specifications:
- Brand: Oracle Lighting
- Product: Skid Plate with Integrated LED Emitters
- Material: 3/16in Steel
- Finish: Satin Black Powder Coat
- LED Emitters: 9x 15W
- Total Lumens: 9,000
- Total Wattage: 135W
- Power Draw: 6A @ 12V DC
- Lens: Clear
- Color Temperature: 5500K
- Beam Width: 30 Degrees
- Waterproof Rating: IP68
- Certification: DOT, SAE, E9
Included:
- (1) Steel Skid Plate
- (9) 15W LED Emitters
- (1) Switched Relay Wiring Harness
- (1) Mounting Hardware Set
Fitment:
- 2018-2025 Jeep Wrangler JL
- 2020-2025 Jeep Gladiator JT
Notes:
- Designed for the factory-style Jeep bumper
- Mojave Gladiator requires shock reservoir relocation
- Fitment with aftermarket bumpers or winches is not guaranteed by Oracle
