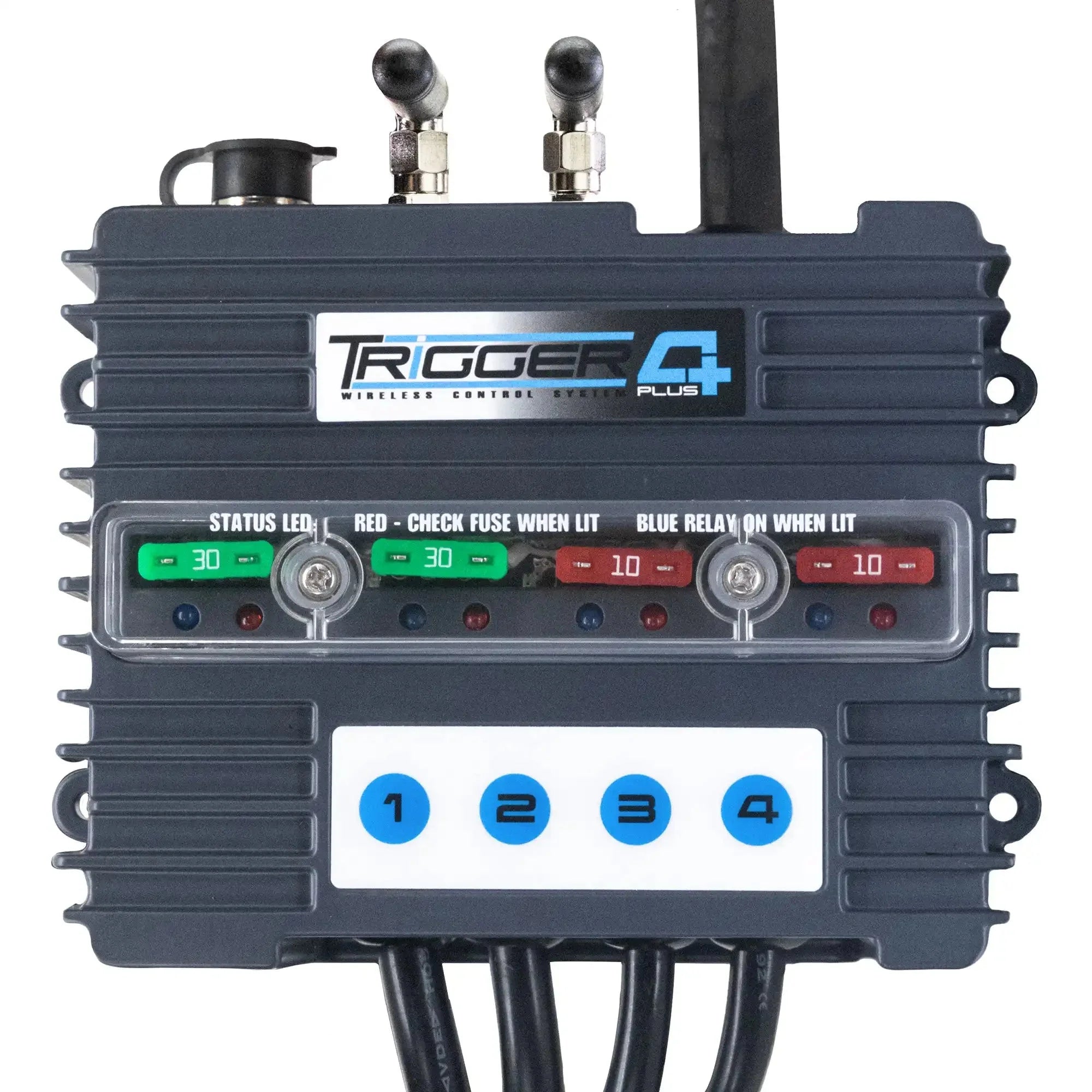

Oracle Lighting TRIGGER 4 PLUS Wireless Accessory Control System - Universal
SKU:
2100
- $359.95
- $359.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Clean up accessory wiring on your truck, Jeep or off-road build with the Oracle Lighting TRIGGER 4 PLUS Wireless Accessory Control System. It eliminates under-dash wiring runs and firewall penetrations by giving you four fused circuits controlled from a wireless RF remote or the free TRIGGER ACS PLUS app.
Fitment Note:
- Remote mounts to round or flat surfaces
- Do not install higher-capacity fuses into lower-capacity circuits
FOUR FUSED CIRCUITS
Two 30A and two 10A fused circuits sit under an o-ring sealed cover, so accessories wire to the TRIGGER instead of running under the dash or through the firewall.
WIRELESS RF REMOTE
The battery-powered RF remote has an ambient backlight, mounts to round or flat surfaces and works from inside or outside the vehicle.
BLUETOOTH APP CONTROL
The free TRIGGER ACS PLUS app adds on/off, dimming and flashing control, sets each circuit to rocker or momentary mode and lets you rename each accessory.
WATERPROOF HARNESSES
Four wire harnesses with waterproof connectors, two 10-gauge and two 12-gauge, connect the accessories, and the case is rated from below freezing to 250 degrees F.
LED CIRCUIT INDICATORS
High-intensity LEDs show blue when a circuit is on and red for a blown fuse, and multiple TRIGGER units can be combined to run up to 24 accessories.
Features:
- Four fused output circuits with two 30A and two 10A outputs
- Wireless RF remote with ambient backlight, usable inside or outside
- Bluetooth control through the free TRIGGER ACS PLUS app
- On/off, dimming and flashing control from the app
- Standard rocker or momentary switch mode set per circuit
- Blue LED shows circuit on, red LED shows a blown fuse
- Waterproof case rated from below freezing to 250 degrees F
- Expandable to control up to 24 accessories with multiple units
Specifications:
- Brand: Oracle Lighting
- Product: TRIGGER 4 PLUS Wireless Accessory Control System
- Output Circuits: 4 (2x 30A, 2x 10A)
- Input Voltage: 12-24V
- Wire Harnesses: 4 Waterproof (2x 10ga, 2x 12ga)
- Remote Type: Wireless RF, Ambient Backlit
- App Control: TRIGGER ACS PLUS (iOS/Android)
- Switch Modes: Standard Rocker / Momentary
- Circuit Indicators: LED (Blue On, Red Blown Fuse)
- Waterproof: Yes, to 250 Degrees F
- Max Accessories: Up to 24 (Multi-Unit)
- Install Time: 1 Hour
- Warranty: 3 Year
Included:
- (1) TRIGGER 4 PLUS Control Box
- (1) Wireless RF Remote with Universal Mount
- (4) Wire Harnesses with Waterproof Connectors
- (1) Set of Switch Labels
Fitment:
- Universal - 12V-24V Cars, Trucks, SUVs, Jeeps and Off-Road Vehicles
Notes:
- 3 Year Warranty
- Remote mounts to round or flat surfaces
- Warranty does not cover modifications, alterations, or misuse
- Do not install higher-capacity fuses into lower-capacity circuits
