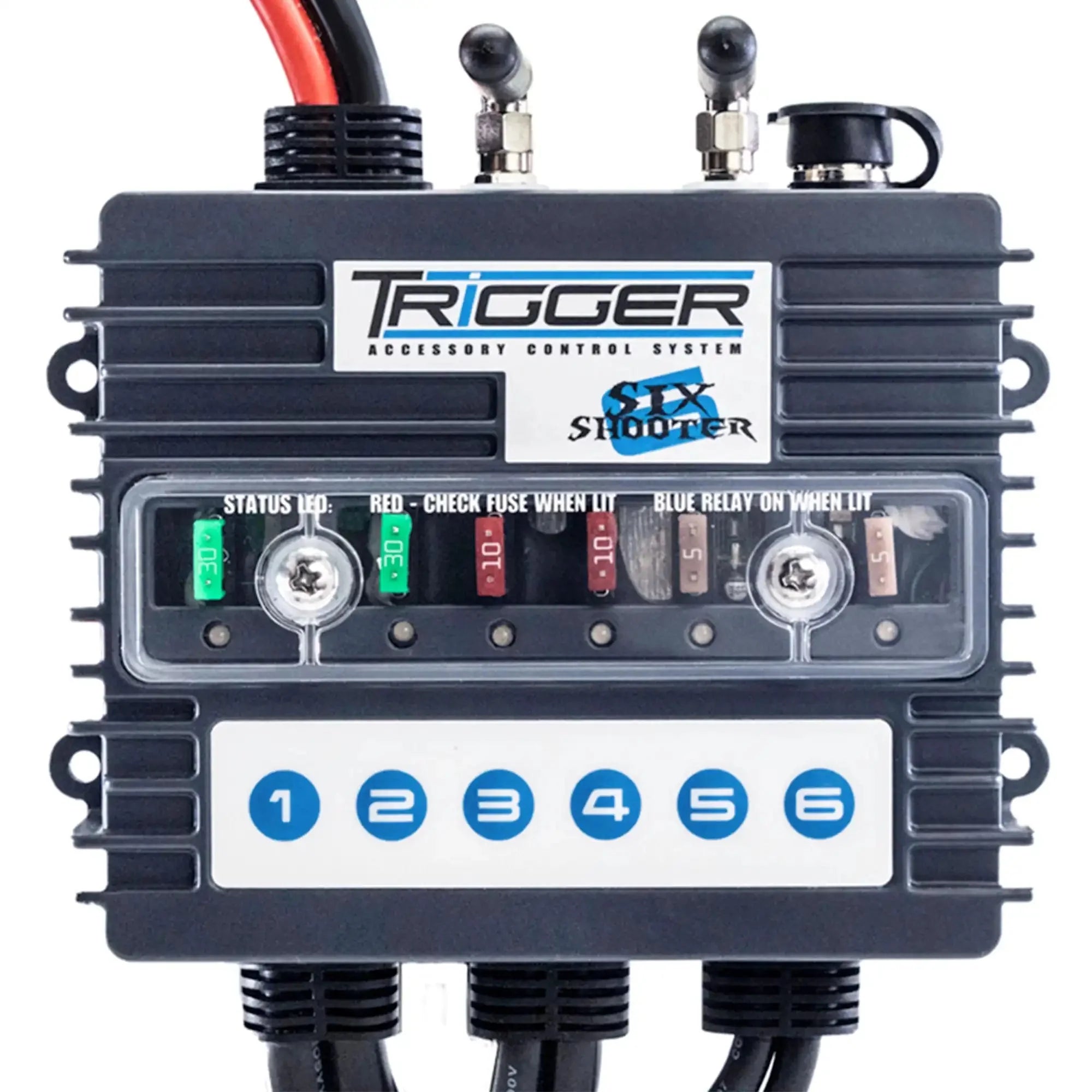

Oracle Lighting TRIGGER 6 SHOOTER Wireless Accessory Control System - Universal
SKU:
3001
- $479.95
- $479.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Run up to six accessories on your truck, Jeep or off-road build without drilling the firewall using the Oracle Lighting TRIGGER 6 SHOOTER Wireless Accessory Control System. Six fused circuits work from a backlit wireless RF remote or the free TRIGGER ACS PLUS app, with dimming and flashing for installed lighting.
Fitment Note:
- DIN toggle switch harness sold separately
- Remote mounts to round or flat surfaces
SIX FUSED CIRCUITS
Two 30A, two 10A and two 5A fused circuits under an o-ring sealed cover replace under-dash wiring runs and firewall penetrations.
100A SYSTEM FUSE
A 100A fuse on the positive input protects the whole system, and a low voltage cut-off shuts the 6 SHOOTER down if battery voltage drops too low.
BACKLIT RF REMOTE
The wireless rocker-style RF remote has custom backlight colors and works from inside or outside the vehicle, with manual buttons on the box as a backup.
BUILT-IN DIN CONNECTOR
A built-in DIN connector lets the 6 SHOOTER work with conventional toggle switches, with the toggle harness sold separately.
WATERPROOF HARNESSES
Six 8-foot harnesses with pre-installed waterproof connectors run to your accessories, and the Bluetooth app shows real-time battery voltage.
Features:
- Six fused circuits: two 30A, two 10A and two 5A outputs
- 100A fuse on the positive input for whole-system protection
- Backlit wireless RF rocker remote with custom backlight colors
- Bluetooth app control with on/off, dimming and flashing
- Built-in battery monitor shows real-time voltage in the app
- Low voltage cut-off shuts down if battery voltage drops too low
- Six 8-foot harnesses with pre-installed waterproof connectors
- Waterproof case rated from below freezing to 250 degrees F
Specifications:
- Brand: Oracle Lighting
- Product: TRIGGER 6 SHOOTER Wireless Accessory Control System
- Output Circuits: 6 (2x 30A, 2x 10A, 2x 5A)
- System Fuse: 100A (Positive Input)
- Input Voltage: 12-24V
- Wire Harnesses: 6x 8 ft Waterproof
- Remote Type: Wireless RF Rocker, Backlit
- App Control: TRIGGER ACS PLUS (iOS/Android)
- Battery Monitor: Built-In Bluetooth
- Low Voltage Cut-Off: Yes
- DIN Connector: Built-In
- Max Accessories: Up to 24 (Multi-Unit)
- Warranty: 3 Year
Included:
- (1) TRIGGER 6 SHOOTER Control Box
- (1) Wireless Backlit RF Remote with Universal Mount
- (6) 8 ft Wire Harnesses with Waterproof Connectors
- (1) Set of Switch Labels
Fitment:
- Universal - 12V-24V Cars, Trucks, SUVs, Jeeps and Off-Road Vehicles
Notes:
- 3 Year Warranty
- Remote mounts to round or flat surfaces
- DIN toggle switch harness sold separately
- Warranty does not cover modifications, alterations, or misuse
