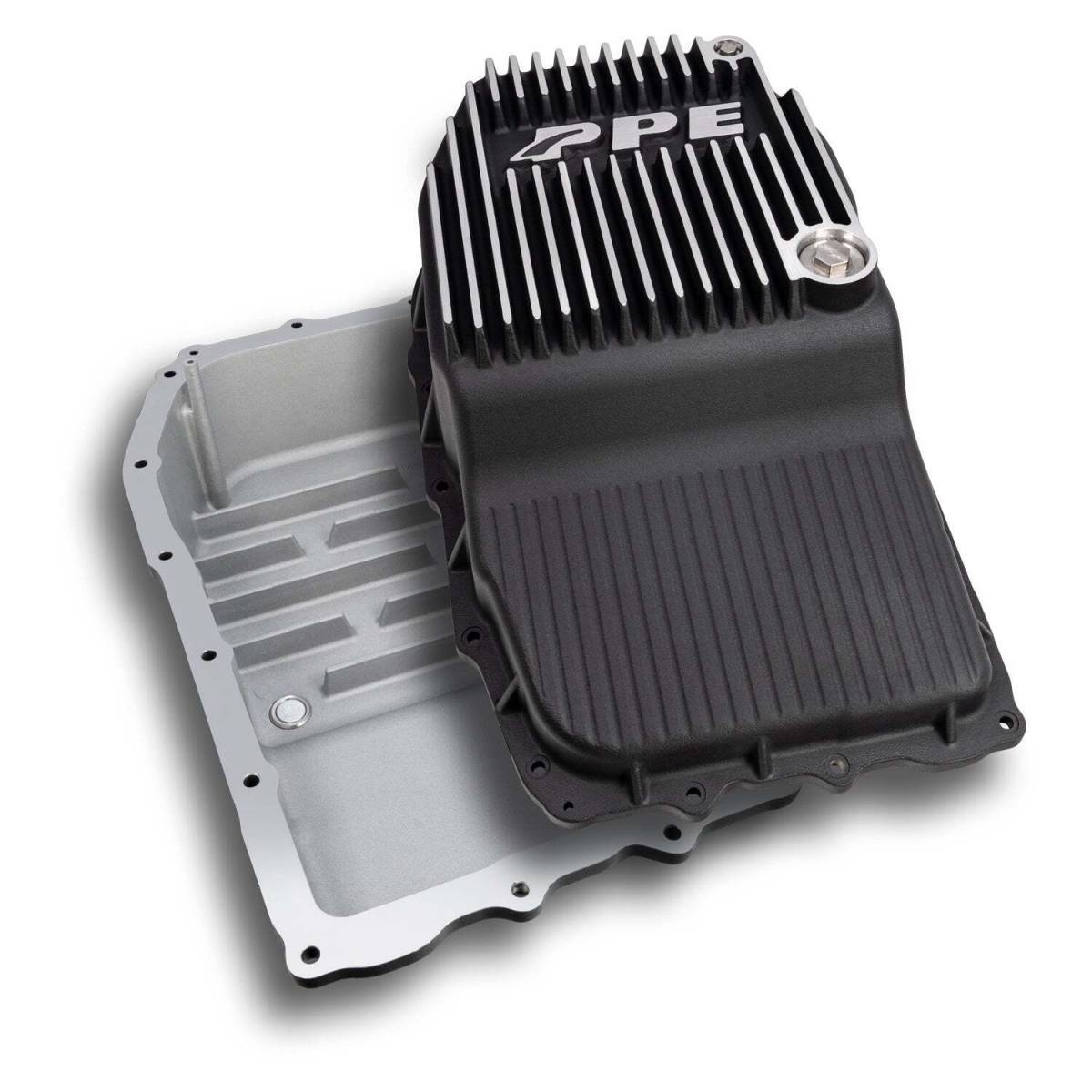

PPE Black HD Aluminum Deep 8L90 Transmission Pan for 2015-2020 GMC/Chevrolet

PPE’s Heavy-Duty DEEP 8L90 Transmission Pan holds an extra 3.8 quarts of fluid and is cast from high-quality A356.0-T6 aluminum alloy for strength and optimum heat dissipation.

An integrated fluid level check tube, sealed by PPE half-inch stainless steel Neodymium magnet-equipped plug. The drain port features a one-inch, high-power Neodymium magnet-equipped stainless steel drain plug. Both plugs catch and hold harmful ferrous particles and keep them out of the transmission internals.

Features:

• High-grade A356.0-T6 heat-treated cast aluminum alloy
• Increases fluid capacity by 3.8 quarts
• 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase strength
• 7/8-inch internal baffles further improve heat dissipation, reduce fluid sloshing
• CNC machined grooves at bottom increase effective surface area which accelerate heat radiation
• High-power Neodymium-magnet-equipped billet stainless steel plugs with Viton O-rings
• Tapped and plugged 1/8-inch NPT port for optional temperature sensor
• Gussets provide extra support to the flange and increase robustness
• Compatible with OEM gasket
• Limited lifetime warranty

Fitment:

• 2015-2018 Silverado/Sierra 1500 8L90 Trans
• 2015-2022 Chevrolet Colorado/Express 8L90 Trans
• 2015-2022 Canyon/Savana 8L90 Trans
• 2015 Cadillac Escalade 8L90 Trans

Note:

• 8L90 Transmission Only

• This pan does not fit 2019 and newer Silverado/Sierra 1500 with 8L90 Transmission
