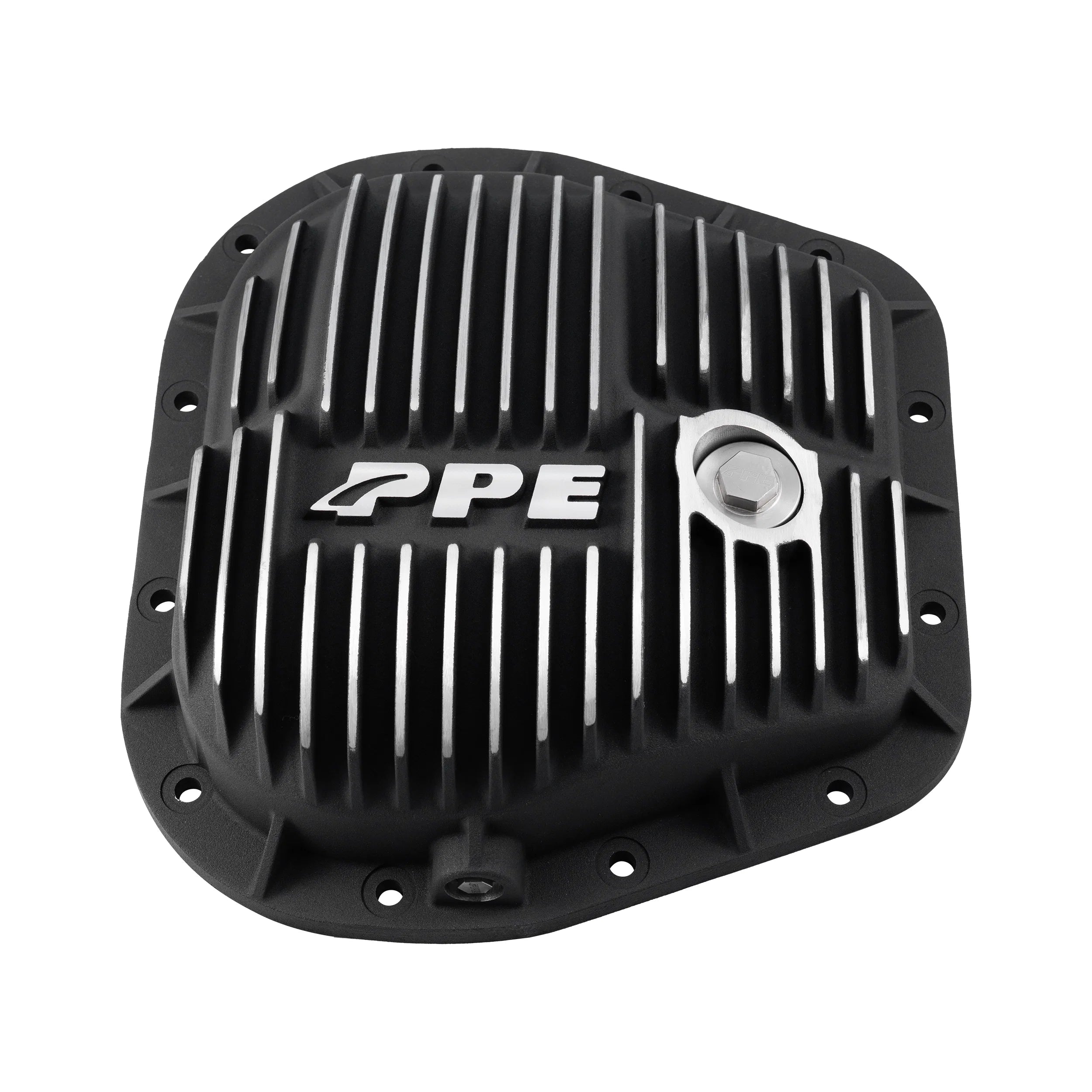

PPE Brushed 9.75in 12-Bolt Rear Differential Cover For 1994-2026 Ford F-150 & 1997-2002 Expedition
SKU:
338051310
SELECT FITMENT
See If This Product Fits Your Vehicle
- $314.99
- $314.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Excessive heat can degrade the protective qualities of differential fluid, leading to accelerated wear of gears and bearings. In limited-slip differentials, constant high temperatures break down clutch packs and friction modifiers, resulting in reduced efficiency and compromised traction control. The PPE Rear Differential Cover for the Ford 9.75-inch 12-bolt axle under 1994-2026 F-150 and 1997-2002 Expedition is cast from high-grade A356.0-T6 heat-treated aluminum alloy, adds 0.43 quart of fluid capacity, and is finished in brushed.
External cooling fins pull heat out of the fluid and add impact resistance, while precision-placed internal windage scrapers keep fluid distributed around the gears and cut the excessive churning that causes heat, aeration, and parasitic power loss. Together the fins and scrapers form an ultra-strong cross-bracing structure, backed by cast-in gussets that support the differential housing flange. The fill plug sits at the factory level, and both service plugs carry high-temperature neodymium magnets to capture ferrous particles.
Features:
- Premium A356.0-T6 heat-treated cast aluminum alloy construction
- Precision cast in permanent steel molds for dimensional accuracy
- Increases oil capacity by 0.43 quart for higher thermal capacity
- 9/16-inch external fins lower differential fluid temperature
- Internal windage scrapers cut churning, aeration, and power loss
- Fins and scrapers form an ultra-strong cross-bracing structure
- Cast-in gussets add housing flange support and rigidity
- 304 stainless plugs with neodymium magnets and Viton O-rings
Specifications:
- Brand: PPE
- Part Type: Rear Differential Cover
- Material: A356.0-T6 Heat-Treated Cast Aluminum Alloy
- Finish: Brushed
- Casting Method: Precision Cast, Permanent Steel Mold
- Differential: Ford 9.75 in, 12-Bolt
- Added Fluid Capacity: 0.43 Quart
- External Fin Height: 9/16 in
- Internal Scrapers: Precision-Placed Windage Scrapers
- Service Plugs: 304 Stainless Steel
- Plug Magnets: High-Temperature Neodymium
- OEM Reference: Ford BL3Z4033C
- Warranty: Limited Lifetime
Included:
- (1) PPE Cast Aluminum Rear Differential Cover
- (1) 304 Stainless Steel Fill Plug with Neodymium Magnet
- (1) 304 Stainless Steel Drain Plug with Neodymium Magnet
- Viton O-Rings
Fitment:
- 1994-2026 Ford F-150 2.7L/3.0L/3.3L/3.5L/4.2L/4.6L/4.9L/5.0L/5.4L/6.2L (9.75 in 12-bolt rear)
- 1997-2002 Ford Expedition 5.4L (9.75 in 12-bolt rear)
Notes:
- Limited Lifetime Warranty
- Warranty does not cover modifications, alterations, or misuse
- Fits the Ford 9.75-inch 12-bolt rear differential only
- Not compatible with PowerBoost Hybrid trucks
- Fill plug is positioned at the factory fluid level
Product Specs
SKU:
338051310
Brand:
PPE
