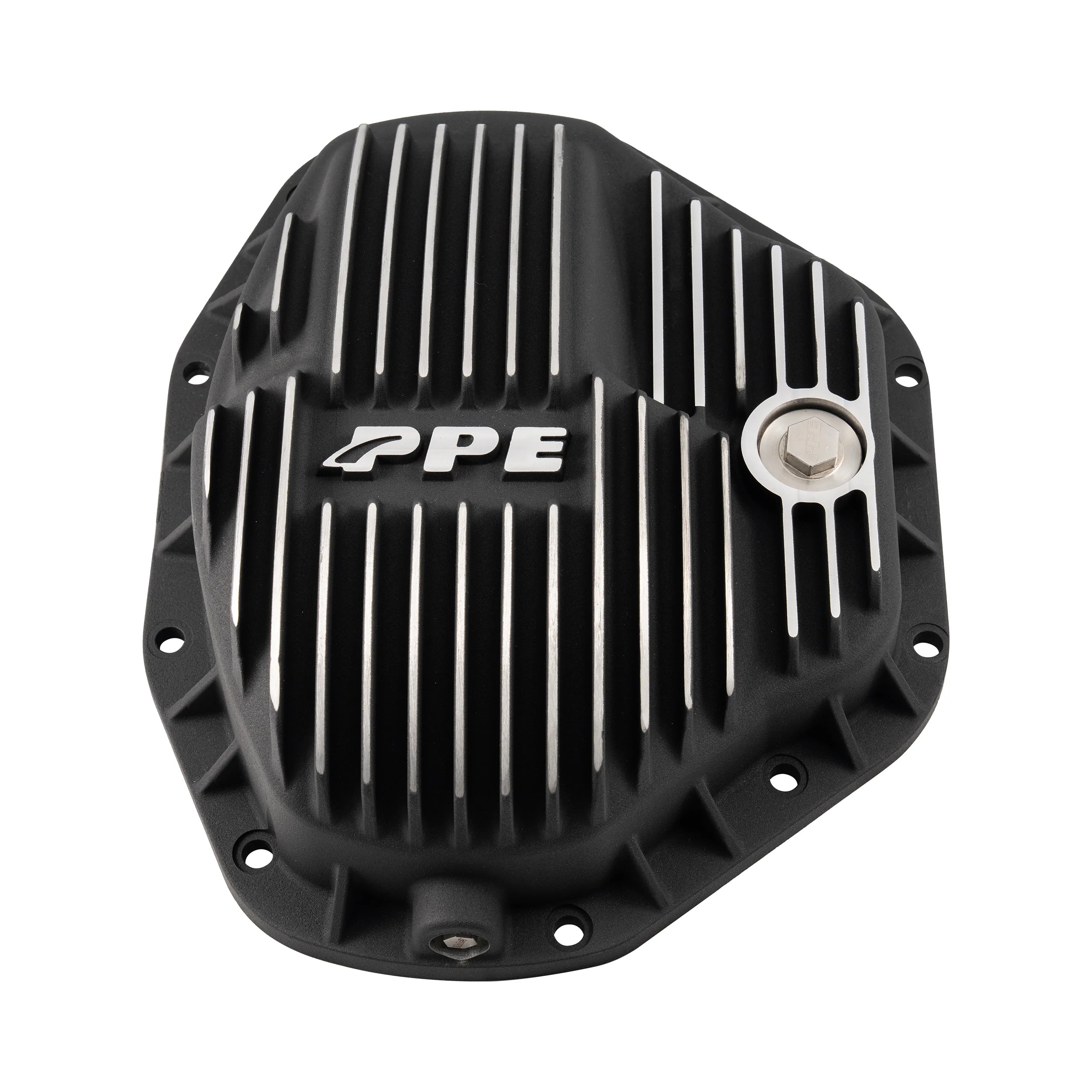

PPE Brushed Dana 80 10-Bolt Rear Differential Cover For 1999-2016 Ford F-250/F-350/F-450 & 1994-2002 Dodge Ram 2500/3500
SKU:
338050810
SELECT FITMENT
See If This Product Fits Your Vehicle
- $314.99
- $314.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Excessive heat can degrade the protective qualities of differential fluid, leading to accelerated wear of gears and bearings. In limited-slip differentials, constant high temperatures break down clutch packs and friction modifiers, resulting in reduced efficiency and compromised traction control. The PPE Rear Differential Cover for the Dana 80 11.25-inch 10-bolt axle is cast from high-grade A356.0-T6 heat-treated aluminum alloy, adds 0.60 quart of fluid capacity, and carries half-inch external cooling fins in a brushed finish for long-lasting heat management on 1999-2016 Ford Super Duty and 1994-2002 Dodge Ram 2500/3500 trucks.
External cooling fins pull heat out of the fluid and add impact resistance, while precision-placed internal windage scrapers keep fluid distributed around the gears and cut the excessive churning that causes heat, aeration, and parasitic power loss. Together the fins and scrapers form an ultra-strong cross-bracing structure, backed by cast-in gussets that support the differential housing flange. The fill plug sits at the factory level, and both service plugs carry high-temperature neodymium magnets to capture ferrous particles.
Features:
- Premium A356.0-T6 heat-treated cast aluminum alloy construction
- Precision cast in permanent steel molds for dimensional accuracy
- Increases oil capacity by 0.60 quart for higher thermal capacity
- Half-inch external fins lower differential fluid temperature
- Internal windage scrapers cut churning, aeration, and power loss
- Fins and scrapers form an ultra-strong cross-bracing structure
- Cast-in gussets add housing flange support and rigidity
- 304 stainless plugs with neodymium magnets and Viton O-rings
Specifications:
- Brand: PPE
- Part Type: Rear Differential Cover
- Material: A356.0-T6 Heat-Treated Cast Aluminum Alloy
- Finish: Brushed
- Casting Method: Precision Cast, Permanent Steel Mold
- Differential: Dana 80, 11.25 in Ring Gear, 10-Bolt
- Added Fluid Capacity: 0.60 Quart
- External Fin Height: 1/2 in
- Internal Scrapers: Precision-Placed Windage Scrapers
- Service Plugs: 304 Stainless Steel
- Plug Magnets: High-Temperature Neodymium
- OEM Reference: Ford F81Z4033AA, BC3Z-4033-C, 9C2Z-4033-A
- Warranty: Limited Lifetime
Included:
- (1) PPE Cast Aluminum Rear Differential Cover
- (1) 304 Stainless Steel Fill Plug with Neodymium Magnet
- (1) 304 Stainless Steel Drain Plug with Neodymium Magnet
- Viton O-Rings
Fitment:
- 1999-2016 Ford F-350 6.0L/6.2L/6.4L/6.7L/7.3L (Dana 80 10-bolt rear)
- 1999-2016 Ford F-450 6.0L/6.4L/6.7L/7.3L (Dana 80 10-bolt rear)
- 2008-2016 Ford F-250 6.4L/6.7L (Dana 80 10-bolt rear)
- 1994-2002 Dodge Ram 2500 5.2L/5.9L V8/5.9L Cummins/8.0L V10 (Dana 80 10-bolt rear)
- 1994-2002 Dodge Ram 3500 5.9L Cummins (Dana 80 10-bolt rear)
Notes:
- Limited Lifetime Warranty
- Warranty does not cover modifications, alterations, or misuse
- Fits the Dana 80 10-bolt rear axle only - verify the axle tag before ordering
