PPE Brushed Deep Trans Pan & 9.25" 12-Bolt Rear Diff Cover For 13-22 Ram 1500

SKU: 228053010 | 238051310

SELECT FITMENT

See If This Product Fits Your Vehicle

$593.98
$593.98

Free Shipping

Free ground shipping on all orders over $100

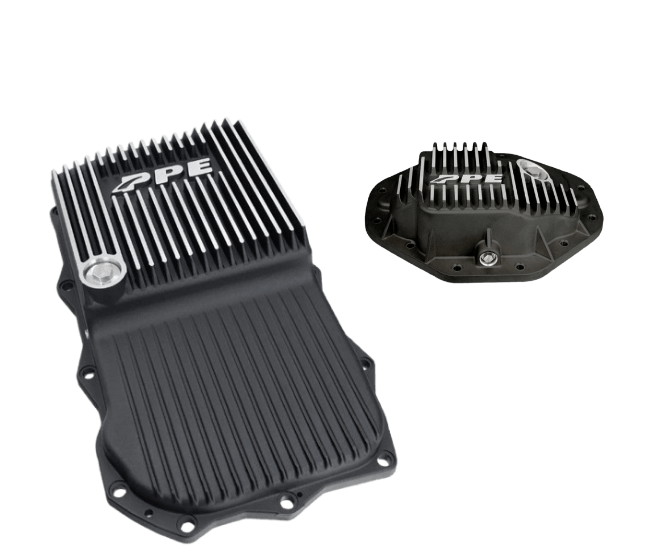

PPE has engineered an exclusive cast aluminum pan with a replaceable filter (included), which means unlike the factory part there is no need to discard the factory pan assembly when you service your ZF transmission. This eliminates the high cost of replacing the factory pan. Now simply drain, replace the filter, and refill.

PPE’s Heavy-Duty Transmission Pans hold extra fluid and are cast from high-strength A356.0-T6 aluminum for optimal heat dissipation. This pan features internal heat sinks and external cooling fins. These cooling fins, combined with cast aluminum construction, promote reduced transmission fluid temperatures. Cooler oil lubricates better which helps increase transmission service life and reduce service costs.

The PPE Heavy-Duty Aluminum Transmission Pan also features a high-powered Neodymium magnet-equipped drain plug to keep harmful ferrous metal contaminants out of the transmission internals.

The factory plastic trans pan is discarded each time you do a ZF 8HP70 transmission service. Upgrade to a permanent solution with better performance benefits.



PPE Brushed Heavy Duty 9.25" 12-Bolt Rear Differential Cover

Help keep your rear differential running cool and clean with an upgraded differential cover from PPE. Made from high-quality cast aluminum for strength and optimum heat dissipation, PPE's differential cover offers industry-leading fluid cooling.

This heavy-duty cover also holds additional fluid for increased thermal stamina for those long hauls. It's equipped with internal heat sinks and external cooling fins which increase the pan's surface area helping dissipate heat substantially. This keeps your differential oil running cooler, which means the oil will keep its viscosity. Cool, dense fluid lubricates better which helps extend service life.

To help keep oil cleaner, PPE includes our exclusive fill plug featuring a high-power Neodymium magnet that will pull harmful ferrous metal particles out of your oil before they have a chance to do damage.



Features:

  • 2.0 quart increased fluid capacity
  • High-grade A356.0-T6 heat treated cast aluminum alloy Deep Transmission Pan
  • Increased heat dissipation
  • External cooling fins reduce fluid temperature
  • Threaded and plugged 1/8" NPT port for optional temperature probe
  • Billet 304 stainless steel Neodymium magnet-equipped drain plug
  • Includes replaceable filter (228058600)
  • Gussets add strength to the Differential housing
  • 3/4 quart increased oil capacity
  • Cast from high-grade aluminum alloy
  • Internal heat sinks and external fins for cooling

Fitment:

  • 2013-2022 Ram 1500 3.6L with 8HP70/8HP75 Transmission & 9.25" 12-Bolt Rear Differential
  • 2013-2022 Ram 1500 5.7L with 8HP70/8HP75 Transmission & 9.25" 12-Bolt Rear Differential
  • 2013-2022 Ram 1500 3.0L EcoDiesel with 8HP70/8HP75 Transmission & 9.25" 12-Bolt Rear Differential
Included:
  • (1) Heavy-Duty Cast Aluminum Deep Transmission Pan
  • (1) Removable, replaceable filter (installed)
  • (1) One inch Neodymium magnet equipped drain plug (installed)
  • (1) 1/8” NPT plug (installed)
  • (1) Heavy-Duty Cast Aluminum Rear Differential Cover
  • (1) Neodymium Magnet-equipped Fill Plug (installed)
  • (1) Neodymium Magnet-equipped Drain Plug (installed)
  • (12) Socket Head Cap Screws
Note:
  • Limited lifetime warranty
  • Gasket and mounting hardware not included
  • No modifications are required on vehicles with a crossover exhaust pipe
  • Remove the bolts holding the cats to the exhaust manifolds and lower the exhaust to give enough clearance to install the new transmission pan

Product Specs

SKU:
228053010 | 238051310
Brand:
PPE
