PPE Brushed Intake Manifold & Turbo Inlet Kit For 17-19 Ford 6.7L Powerstroke
SKU:
315053510
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,439.99
- $1,439.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
The stock cast aluminum intake bridge manifold on the Ford 6.7L Power Stroke is a well-known performance bottleneck. Certain design characteristics of the stock manifold restrict fresh air intake, which is particularly unfavorable for engine performance. Some sections of the stock manifold’s internal passage are even narrower than a 2.5-inch-diameter tube, severely limiting airflow. Additionally, the EGR inlet swirl is positioned directly in the center of the flow path, creating significant turbulence and flow disruption. This turbulence reduces both the intake air velocity and the volume of air entering the cylinder heads
The PPE Performance Intake Manifold effectively eliminates these stock bottlenecks by utilizing large 3.25-inch stainless steel tubing, combined with hydroformed runners that seamlessly direct airflow into both cylinder heads. The problematic, flow-restricting EGR boss has been eliminated, creating unobstructed flow passages. Furthermore, the EGR inlet port has been carefully repositioned and angled to ensure even distribution of fresh air and EGR gases to both banks, thereby maximizing volumetric efficiency. To support this, the kit includes a redesigned stainless steel EGR pipe and gaskets. With these enhancements, the PPE Performance Intake Manifold achieves a 69% higher maximum flow rate than the stock component.
On the turbo inlet side, the system features a four-inch stainless steel turbo inlet, paired with a dry-carbon-fiber airbox duct. Unlike the stock components, which transition from circular shape to oval shape and then back to circular shape, both PPE components maintain a fully round design. This ensures higher flow efficiency and reduces frictional losses. Additionally, the factory plastic two-chamber turbo resonator has been removed, reducing air turbulence and weight, while enhancing turbo sound.
The best part of this kit is its hassle-free installation and OEM-like fitment. All stock mounting points - including sensor clips, dipstick brackets, and coolant hose connections - are retained. Not a single wiring harness or coolant line is left unsupported. The MAP sensor port is positioned in the exact same location as the stock manifold, with MAP sensor shield provisions
Features:
- Large 3.25-inch stainless steel tubing and hydroformed runners for increased airflow
- Eliminate stock restrictive EGR inlet swirl
- 69% higher maximum flow rate than the stock component
- Handles higher boost pressures - consistent performance for any application
- Redesigned stainless steel EGR pipe with new gaskets
- Fully round massive 4-inch stainless-steel turbo inlet
- Fully round 4-inch airbox duct made of 100% dry carbon fiber
- Removes the factory two-chamber plastic intake resonator
- Lower manifold gaskets and EGR pipe gaskets included
- Includes airbox coupler and turbo inlet couplers with oil resistant inner layer
- Clamps and all necessary installation hardware included
- OEM-like fitment, retains all factory accessory mounting points
Fitment:
- 2017-2019 Ford F-250/F-350/F-450 6.7L Powerstroke
Included:

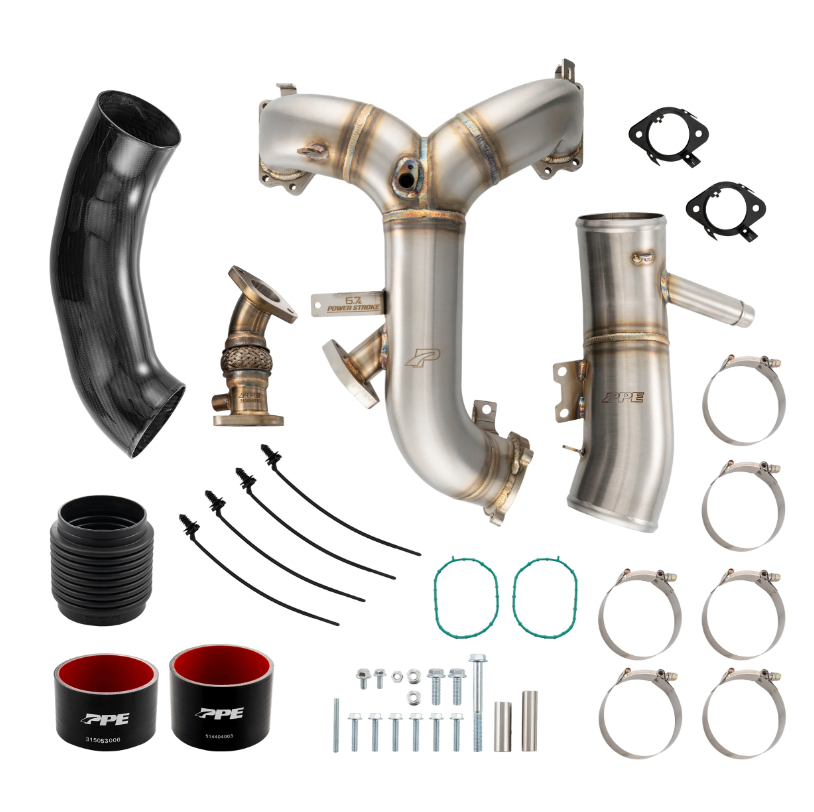

- PPE Brushed Zilla Intake Manifold & Turbo Inlet Kit
- All Mounting Hardware
Note:
- 3 Year Limited Warranty
Product Specs
SKU:
315053510
Brand:
PPE
