PPE Brushed Transmission & Oil Pan Kit For 18-21 Ford F150 3.0L 10R80 Trans

SKU: 328053210 | 314052210

SELECT FITMENT

See If This Product Fits Your Vehicle

$449.98
$449.98

Free Shipping

Free ground shipping on all orders over $100

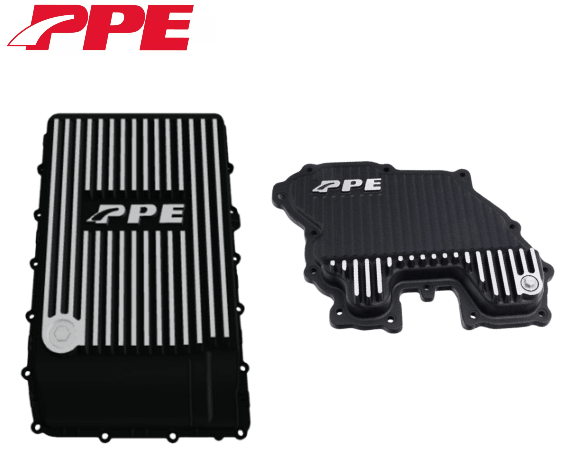

PPE Brushed Heavy Duty 10R80 Transmission Pan

Ford 's 10R80 transmission is revolutionary. This 10-speed power manager can go from street to strip with a flick of a button on some vehicle applications. All this available power generates more heat. Even daily light-to-light commutes create high heat. High heat destroys transmission internals and scorches fluid. Each of these contributes to reduced performance and transmission life.

PPE's cast aluminum pan provides superior cooling over the stock plastic pan. The stock plastic pan has no drain plug and is discarded each transmission service. The PPE Pan's cast-aluminum construction with exterior fins transfer heat away from transmission internals. Lower transmission fluid temperatures extend transmission life. The benefits of the PPE Pan also include easier fluid services. Simply drain, plug and refill. No more trans fluid showers.

The PPE Heavy-Duty 10R80 Transmission Pan also features our high-powered Neodymium magnet equipped drain plug to keep harmful ferrous metal contaminants out of the transmission internals.

PPE Brushed Heavy Duty Cast Aluminum Oil Pan

This new engine oil pan is engineered as a performance replacement for the thin, stamped steel factory pan. Cast in high-strength A356-T6 aluminum alloy, this thick pan dissipates heat more efficiently to reduce engine oil temperatures.

External fins add strength and take advantage of free-flowing air. The CNC machined grooves increase effective surface area and also help reduce oil temperature. CNC inner flange grooves promote a complete seal.

The PPE Oil Pan includes a hardened billet stainless steel drain plug that contains a high-power Neodymium magnet that attracts and holds ferrous metal particles, keeping them from damaging your engine’s vital internal components.

Features:

  • Transmission Pan cast from high-strength aluminum alloy
  • Permanent replacement for "throwaway" stock plastic pan
  • 3/4 inch external cooling fins reduce fluid temperature
  • Large 1 inch Neodymium magnet equipped billet 304 stainless steel drain plug with Viton O-ring
  • 1/8 inch NPT port for optional temperature probe
  • Reuses OEM gasket, bolts and studs
  • Engine Oil Pan comprised of high-grade A356.0-T6 heat-treated cast aluminum alloy
  • External fins improve heat dissipation to lower oil temperature and increase strength (.5’’ inch)
  • CNC machined outer grooves increase effective surface area to improve heat dissipation
  • High-power Neodymium magnet equipped hardened stainless steel drain plug with Viton O-ring
  • CNC machined inner flange grooves promote a complete seal

Fitment:

  • 2018-2021 Ford F150 w/ 10R80 Transmission
Included:
  • (1) Brushed Heavy Duty 10R80 Transmission Pan
  • (1) Stainless Steel Neodymium Magnetic Drain Plug
  • (1) 1/8" NPT plug
  • (1) Brushed Heavy Duty Engine Oil Pan
  • (1) 9/16-inch Neodymium magnet equipped Drain Plug
  • (13) M6 1.0 x 25mm socket head cap screws
  • (13) M6 flat washers
Note:
  • Limited lifetime warranty

Product Specs

SKU:
328053210 | 314052210
Brand:
PPE
