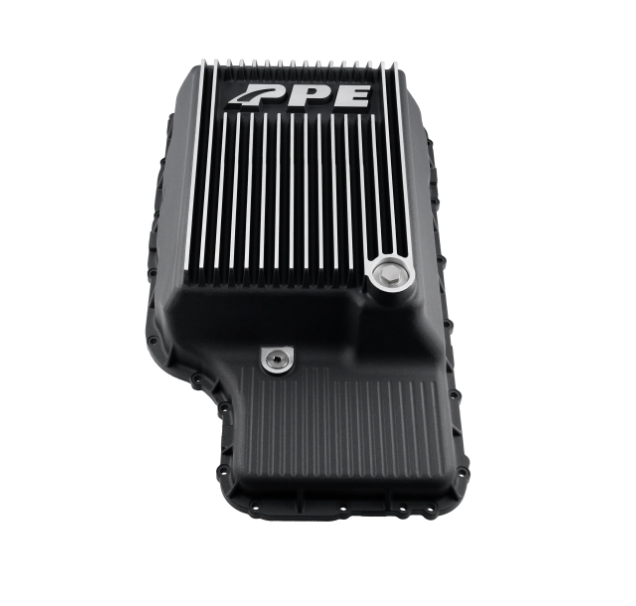

PPE Deep Brushed Transmission Pan For 20-25 Ford F-250/F-350 Super Duty 7.3L Gas

Elevate Your Ford Super Duty with the PPE Heavy-Duty Cast Aluminum Deep Transmission Pan. Cast from high-grade A356.0-T6 aluminum alloy, the PPE Transmission Pan offers superior resistance to impact and warping compared to the factory plastic pan. Its robust construction ensures long-lasting protection and performance. The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure.

The built-in baffles at the bottom of the pan increase the contact area between the fluid and the pan’s cast surface, enhancing its heat transfer capabilities. These baffles also minimize fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. The CNC-machined gasket groove guarantees an OEM fitment for the rubber gasket, while a non-reusable flat gasket is also included for quick and easy sealing.

The PPE Transmission Pan includes a fluid level check standpipe and a fluid fill adapter. With just a fluid dispenser and a 3/8’’ hose, transmission fluid services can be easily managed. The billet stainless steel drain plug is equipped with a powerful neodymium magnet that captures ferrous particles, providing additional protection for your transmission.

Keep your Super Duty 10-speed transmission running longer, healthier, and cooler with PPE.

Features:

• High-strength, durable A356.0-T6 aluminum alloy
• Precision cast using permanent steel molds
• 5 quarts additional fluid capacity
• External fins improve heat dissipation, lower transmission fluid temps, and increase strength
• Internal baffles increase heat dissipation and reduce fluid sloshing
• Neodymium magnet equipped, 304 stainless steel drain plug with Viton O-ring
• Fluid fill adapter and plug
• Fluid level check standpipe
• Compatible with OEM gasket and filter
• Brushed finish

Fitment:

• 2020-2025 Ford F-250/F-350 Super Duty 7.3L Gas

Included:

• (1) PPE Deep Transmission Pan Kit

Note:

• Limited Lifetime Warranty
