PPE HD Raw Deep Transmission Pan with Filter For 1985-2014 GMC/Chevy 4L60E/4L65E/4L70E/4L75E/700R4 with Automatic Transmission
SKU:
128051500
SELECT FITMENT
See If This Product Fits Your Vehicle
- $269.99
- $269.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Keep your GM 4-speed automatic transmission running cooler, stronger, and longer with the PPE Heavy-Duty Cast Aluminum Transmission Pan for 1985–2014 700R4, 4L60, 4L60E, 4L65E, 4L70E, and 4L75E transmissions. Precision-cast from A356.0-T6 heat-treated aluminum, this pan increases fluid capacity by an additional 3 quarts, delivering superior thermal protection for towing, hauling, off-road use, or high-performance applications. Deep external fins and internal baffles maximize surface contact and heat transfer, significantly lowering transmission temperatures under heavy load.
Built for long-term durability, this PPE pan features cast-in structural ribbing, a neodymium magnetic drain plug, a 1/8" NPT port, and integrated filter supports for reliable fluid pickup. The added rigidity minimizes case flex, while the thick-wall construction improves impact resistance. With superior cooling, increased rigidity, and premium materials, this PPE transmission pan is an essential upgrade to extend the life and performance of your GM 4-speed transmission.
Features:
- A356.0-T6 cast aluminum resists heat and provides exceptional strength
- Adds 3 extra quarts of fluid capacity for superior cooling performance
- Deep 3/4-inch fins increase surface area to dissipate heat more efficiently
- Internal baffles reduce sloshing and improve heat absorption under load
- Cross-braced structure stiffens transmission case for added durability
- 304 stainless magnetic drain plug captures harmful metal debris
- Pre-installed 1/8-inch NPT port allows temperature probe installation
- Integrated filter supports ensure correct filter alignment every time
Specifications:
- Brand: PPE (Pacific Performance Engineering)
- Material: A356.0-T6 Heat-Treated Cast Aluminum
- Finish: Raw Aluminum
- Fluid Capacity Increase: +3 Quarts
- Drain Plug: 304 Stainless with Neodymium Magnet
- Port: 1/8-inch NPT with pre-installed plug
- Cooling Features: External fins and internal baffles
- Structural Features: Cast-in gussets and cross-bracing

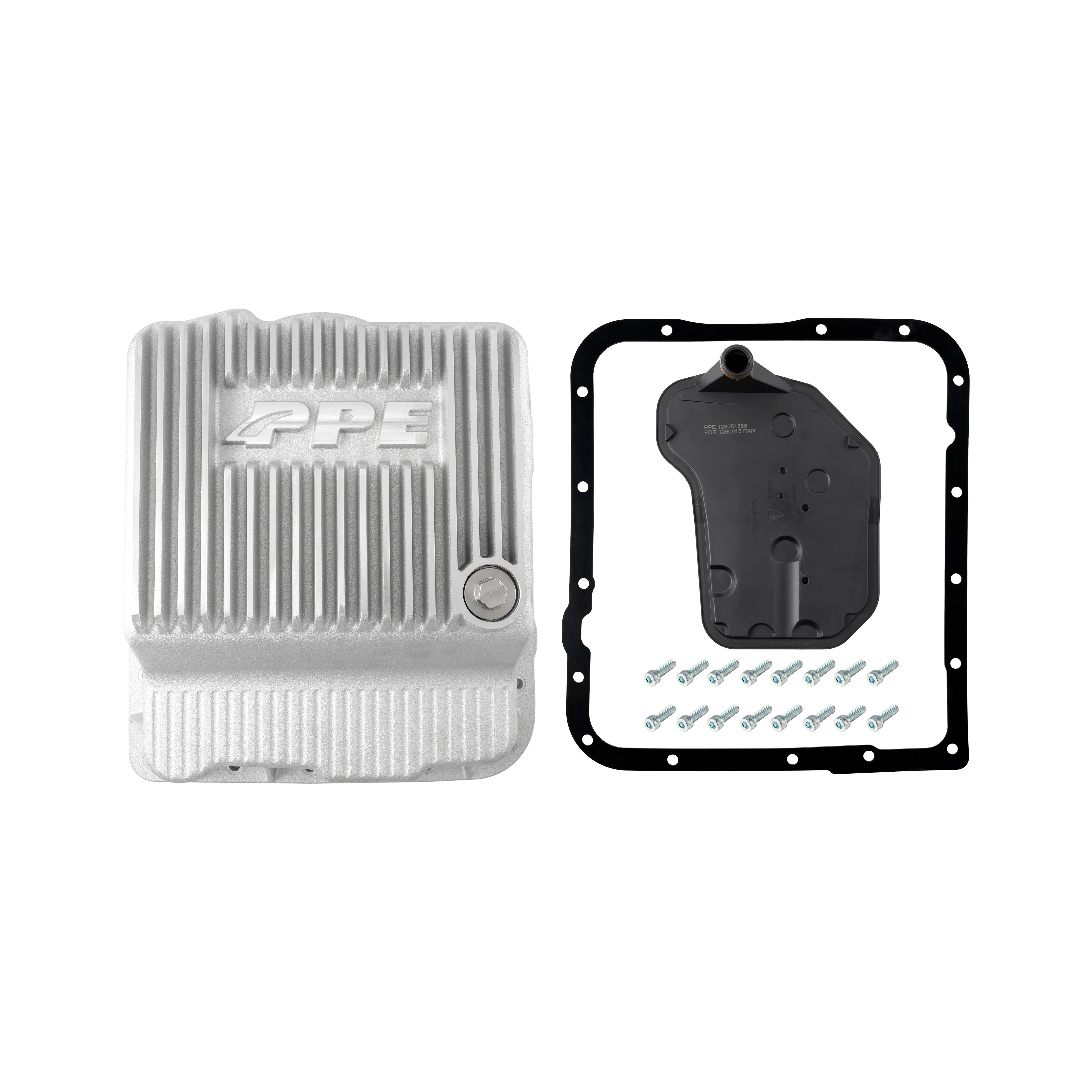

Included:
- (1) PPE Heavy-Duty Cast Aluminum Transmission Pan
- (1) Transmission Filter
- (1) Transmission Gasket
- (1) Stainless Steel Magnetic Drain Plug
- (1) 1/8-inch NPT Plug
- (1) Hardware Kit
Fitment:
- 1998–2014 GMC Savana 1500/2500 – 4.3L V6, 5.3L V8, 6.0L V8
- 1999–2014 GMC Sierra 1500 – 4.3L V6, 4.8L V8, 5.3L V8, 6.0L V8, Hybrid
- 2000–2014 Chevrolet Silverado 1500 – 4.3L V6, 4.8L V8, 5.3L V8, 6.0L V8
- 2000–2014 Chevrolet Express 1500/2500 – 4.3L V6, 4.8L V8
- 2000–2014 GMC Yukon / Yukon XL – 4.8L V8, 5.3L V8, 6.0L V8
- 1999–2014 Chevrolet Tahoe – 4.8L V8, 5.3L V8, 5.7L V8
- 1999–2014 Chevrolet Suburban – 5.3L V8
- 2002–2009 Chevrolet Trailblazer – 4.2L I6, 5.3L V8, 6.0L V8
- 2007–2009 HUMMER H2 – 6.0L V8
- 1998–2013 Cadillac Escalade – 5.3L V8, 5.7L V8, 6.0L V8, 6.2L V8
- 1998–2004 GMC Safari – 4.3L V6, 2.5L I4
- 1998–2004 Chevrolet Astro – 4.3L V6, 2.5L I4
- 1998–2004 Chevrolet S10 / GMC Sonoma – 2.2L I4, 4.3L V6
- 1994–2000 Chevrolet C1500 / C2500 – 4.3L V6, 5.0L V8, 5.7L V8
- 1994–2000 Chevrolet K1500 / K2500 – 4.3L V6, 5.0L V8, 5.7L V8
- Compatible with GM vehicles equipped with 700R4, 4L60E, 4L65E, 4L70E, and 4L75E automatic transmissions
Notes:
- Lifetime Limited Warranty
- Designed ONLY for 700R4 / 4L60E / 4L65E / 4L70E / 4L75E transmissions
- OEM Reference Numbers: GM 24229658, 24240207, 8667545, 24208576
