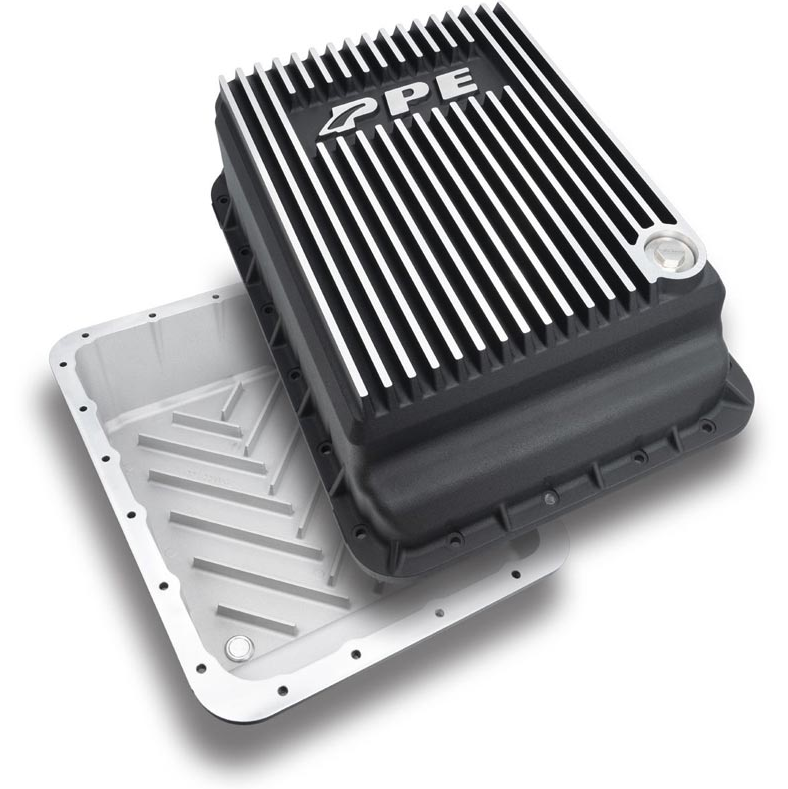

PPE Brushed Aluminum AISIN AS69RC Transmission Pan For 2013-2024 Ram 6.7L Cummins
SKU:
228053210
SELECT FITMENT
See If This Product Fits Your Vehicle
- $314.99
- $314.99
$349.99- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure
Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 4 quarts of additional fluid capacity, ensuring long-lasting heat management and performance
The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance
The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance
The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission
Keep your Aisin transmission running longer, healthier, and cooler with PPE
Features:
- Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
- Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
- Increases fluid capacity by 4 quarts for higher thermal capacity
- Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
- Deep 3/4-inch internal baffles enhance heat absorption and minimize fluid sloshing
- External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
- Cast-in gussets for additional transmission housing flange support and increased rigidity
- 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
- Equipped with a 1/8-inch NPT port with pre-installed NPT plug
- Compatible with OEM gasket and filter
Fitment:
- 2013-2024 Ram 2500 6.7L Cummins w/ Aisin AS69RC Transmission
- 2013-2024 Ram 3500 6.7L Cummins w/ Aisin AS69RC Transmission
- 2013-2018 Ram 4500 6.7L Cummins w/ Aisin AS69RC Transmission
- 2013-2024 Ram 5500 6.7L Cummins w/ Aisin AS69RC Transmission
Included:
- PPE Brushed Transmission Pan
- Magnet Drain Plug
- Gasket
- NPT Port Plug
- Mounting Hardware
Note:
- Limited Lifetime Warranty
Product Specs
SKU:
228053210
Brand:
PPE
part type:
Transmission
