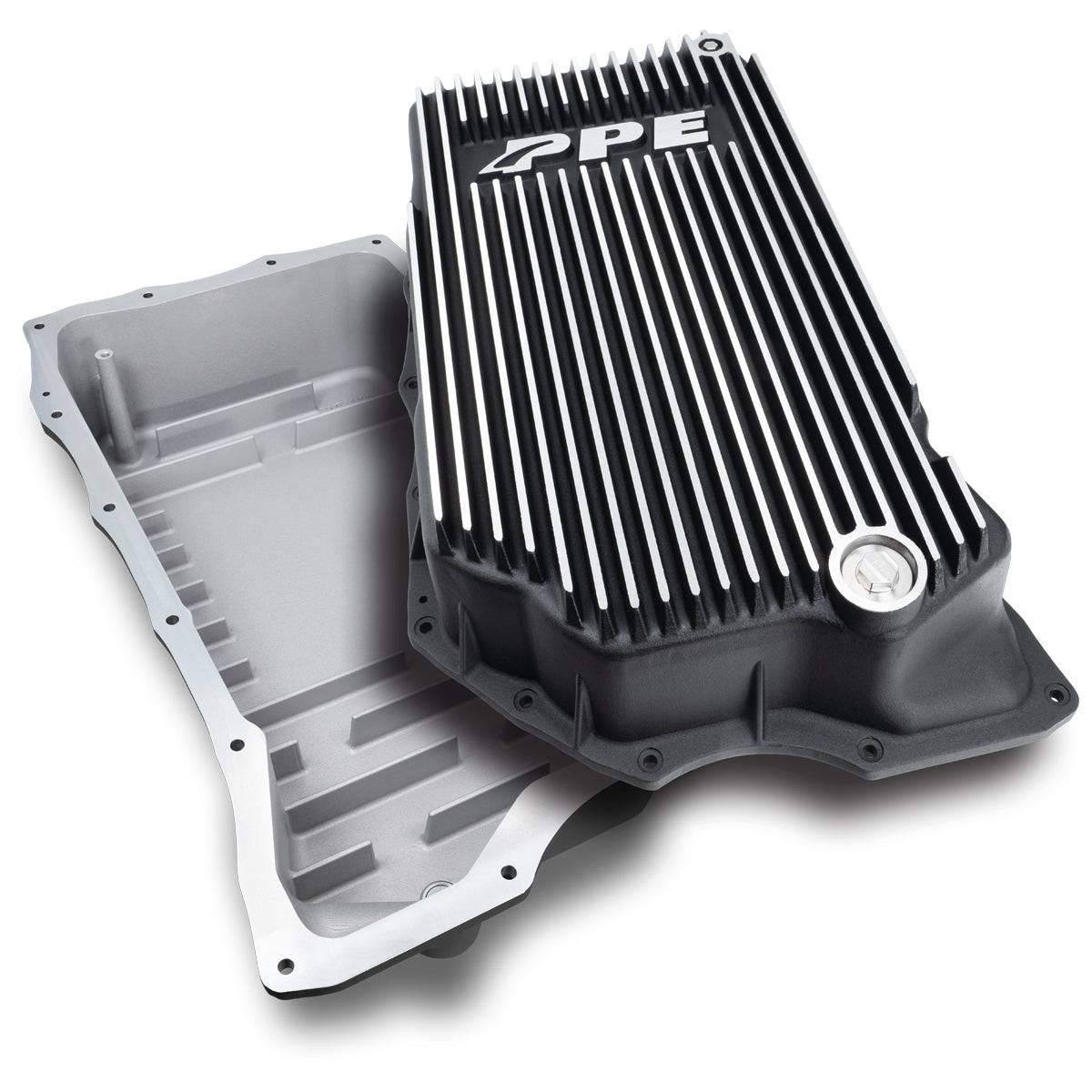

PPE Brushed Aluminum 10L1000 Transmission Pan For 20-26 GMC Chevy 6.6L Duramax
SKU:
128051410
SELECT FITMENT
See If This Product Fits Your Vehicle
- $377.99
- $377.99
$435.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure for your GM 6.6L Duramax 10L1000 Transmission
Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 4 quarts of additional fluid capacity, ensuring long-lasting heat management and performance
The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance
The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance
A fluid level check standpipe ensures proper fluid level during the filling process. The drain plug and fluid level check plug are both equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission
Keep your 10 speed transmission running longer, healthier, and cooler with PPE
Features:
- Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
- Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
- Increases fluid capacity by 4 quarts for higher thermal capacity
- Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
- Deep 1.2-inch internal baffles enhance heat absorption and minimize fluid sloshing
- External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
- Cast-in gussets for additional upper oil pan (transmission housing) flange support and increased rigidity
- 304 Stainless steel service plugs with built-in high temperature rated neodymium magnet and Viton O-ring
- Integrated standpipe ensures accurate fluid level checks during the filling process
- Equipped with a 1/8-inch NPT port with pre-installed NPT plug
- Compatible with OEM gasket and filter
Fitment:
- 2020-2026 GMC Sierra 2500 3500 6.6L Duramax w/ 10L1000 Transmission
- 2020-2026 Chevrolet Silverado 2500 3500 6.6L Duramax w/ 10L1000 Transmission
Included:
- PPE Brushed Transmission Pan
- Drain Plug
- Level Check Plug
- Mounting Hardware
Note:
- Limited Lifetime Warranty
Product Specs
SKU:
128051410
Brand:
PPE
