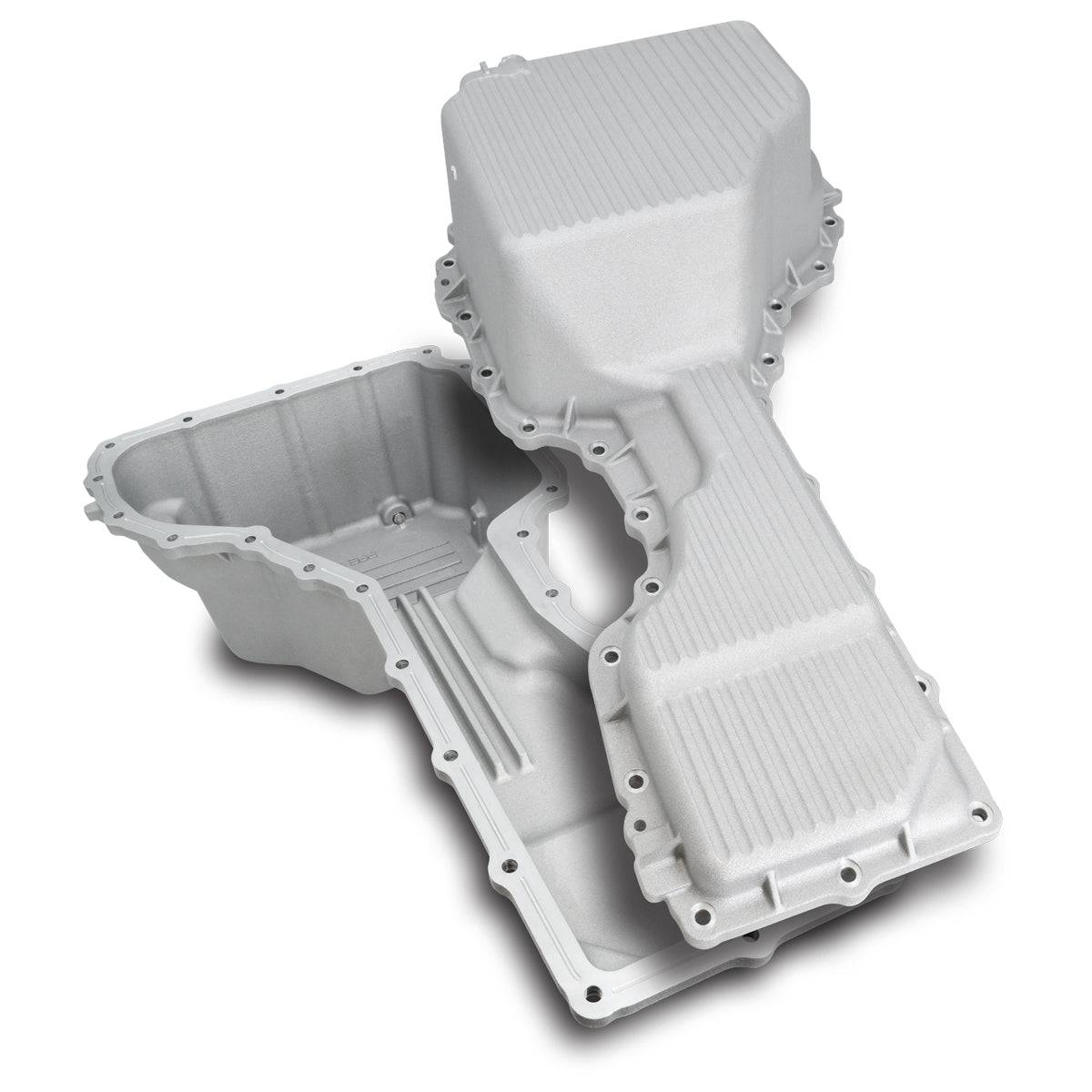

PPE Raw Heavy Duty Aluminum Engine Oil Pan For 2020-2026 GMC Chevy 6.6L Duramax
SKU:
114053100
SELECT FITMENT
See If This Product Fits Your Vehicle
- $359.99
- $359.99
$414.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
PPE solves the GM Duramax L5P complete oil drainage problem. During regular oil changes, the stock GM pan retains over half a quart of the dirtiest, heaviest part of the oil which settles to the bottom of the valley of the stock pan. This old oil is trapped in the valley of the stock pan and never drains out. It immediately contaminates your fresh oil
PPE solves that filthy problem with a flat, angled bottom, designed for more complete drainage. The PPE pan’s higher volume holds an additional two quarts of oil. Your engine's fluid capacity is increased, as well as its thermal stamina, which creates a longer service life. Engine temperatures are further reduced because the PPE L5P Oil Pan is constructed of thick, cast aluminum alloy, designed with internal ribs that add strength and rigidity. Plus, we've tapped the side with a convenient NPT port if you want to run a temperature sensor
A powerful neodymium magnet-equipped, billet, the hardened stainless steel drain plug is included to pull ferrous metals out of your oil before they can damage the internals. An O-ring is also included, to ensure a tight seal
Replace your factory-stamped steel oil pan and get rid of that dirty oil that you've been holding on to. Give your L5P a fresh, clean start with this simple bolt-on upgrade
Features:
- Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
- Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
- Increases oil capacity by 2 quarts for higher thermal capacity
- Thick ribs across the midsection of the pan for better structural integrity
- Longitudinal cooling channels along the bottom of the pan, increasing external surface area and enhancing heat dissipation
- Cast-in gussets for additional upper oil pan flange support and increased rigidity
- Precision machined sealant grooves guide the application of RTV-style sealant for a consistent bead and a reliable seal
- Stainless steel drain plug with built-in high temperature rated neodymium magnet
- Equipped with a 1/8-inch NPT port with pre-installed NPT plug
Fitment:
- 2020-2026 GMC Sierra 2500/3500 6.6L Duramax
- 2020-2026 Chevrolet Silverado 2500/3500 6.6L Duramax
Included:
- PPE Engine Oil Pan
- Cast-In Gussets
- Magnetic Drain Plug
Note:
- Limited Lifetime Warranty
Product Specs
SKU:
114053100
Brand:
PPE
