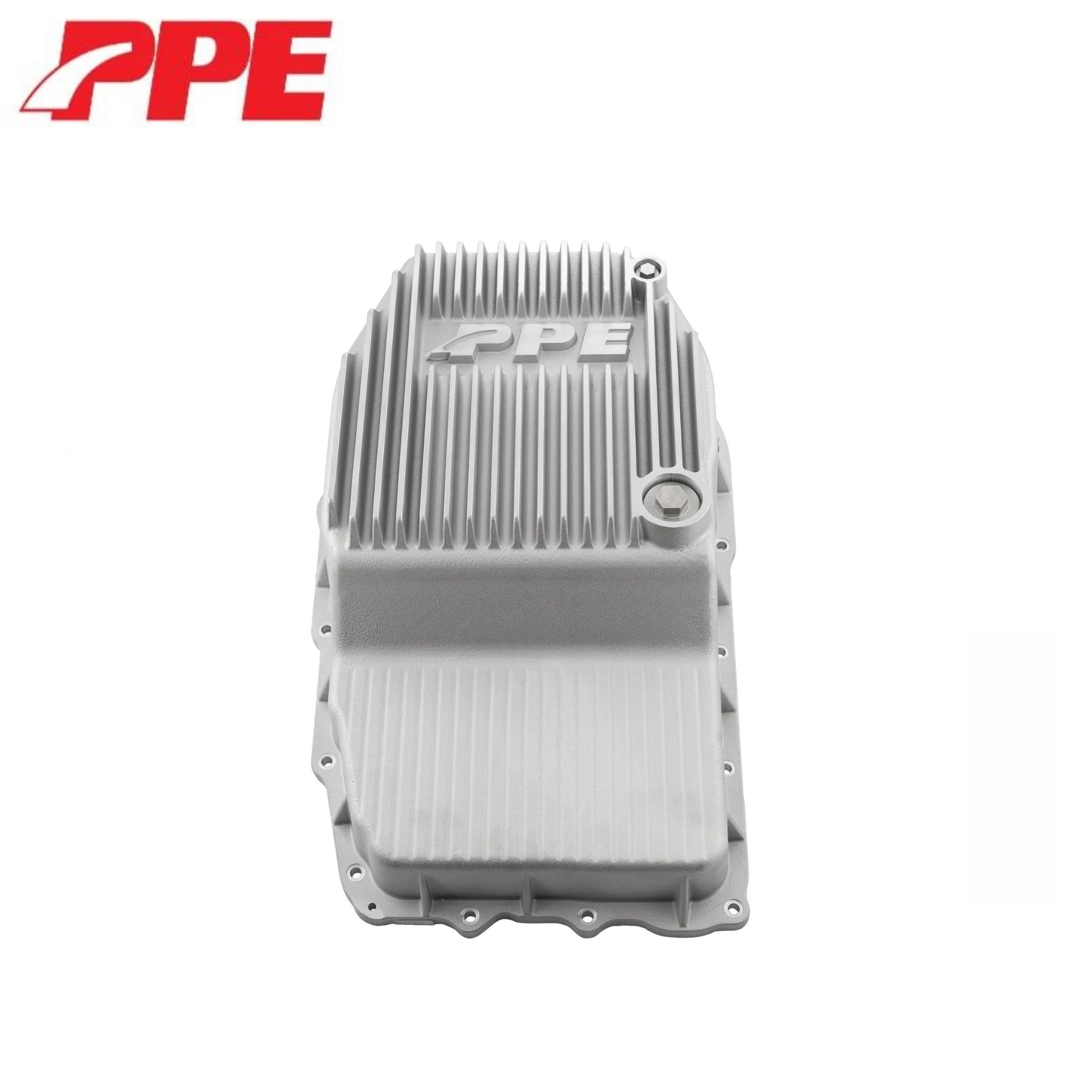

PPE Raw Deep 8L45/8L80/8L90 Transmission Pan For 19–25 GM Sierra/Silverado 1500

Keep your GM 8-speed automatic transmission cool and protected with the PPE Heavy-Duty Deep Cast Aluminum Transmission Pan. Designed for 8L45, 8L80, and 8L90 applications, this pan increases fluid capacity by 3.9 quarts to improve thermal stability and pressure consistency—key factors in reducing wear, delayed shifting, and vibration. Constructed from high-strength A356.0-T6 heat-treated cast aluminum, this pan offers enhanced rigidity, better heat dissipation, and superior durability under extreme conditions.

The pan features deep internal baffles to reduce fluid slosh, tall external fins for optimal cooling, and built-in gussets for structural reinforcement. A stainless-steel drain plug and check plug with high-temp neodymium magnets help trap harmful particles before they circulate. It’s also equipped with filter supports, a standpipe for precise filling, and a threaded 1/8” NPT port for temperature sensors or other accessories. This upgrade is compatible with OEM filters and gaskets, making installation seamless.

Features:

• A356-T6 cast aluminum improves strength and heat transfer
• 3.9-quart added capacity lowers fluid temps significantly
• 3/4" deep external fins increase heat dissipation
• 7/8" internal baffles reduce fluid slosh and improve pickup
• Cross-braced design boosts structural rigidity and cooling
• Magnetic stainless drain plug captures metal particles
• Includes 1/8" NPT port with pre-installed plug
• Compatible with OEM gasket and filter for easy install

Specifications:

• Material: A356.0-T6 Cast Aluminum
• Finish: Natural Machined Cast
• Fluid Capacity Increase: +3.9 Quarts
• Cooling Fins: 3/4" External Fins
• Internal Baffles: 7/8" Tall Cross-Braced
• Drain Plug: 304 Stainless w/ Magnet & Viton O-ring
• Sensor Port: 1/8" NPT (Plug Installed)
• Filter Support: CNC Machined Aluminum x3

Included:

• (1) Deep Cast Aluminum Transmission Pan
• (3) CNC Machined Filter Supports
• (1) Fluid Level Standpipe
• (1) Stainless Drain Plug w/ Magnet
• (1) Stainless Fill Plug w/ Magnet
• (1) Pre-installed NPT Port Plug

Fitment:

• 2019–2025 Chevrolet Silverado 1500 2.7L I4 Turbo Gas
• 2019–2025 Chevrolet Silverado 1500 5.3L V8 Gas
• 2019–2025 GMC Sierra 1500 2.7L I4 Gas
• 2019–2021 GMC Sierra 1500 5.3L V8 Gas
• 2023–2025 Chevrolet Colorado 2.7L I4 Turbo Gas
• 2023–2025 Chevrolet Silverado 1500 2.7L I4 Turbo Gas
• 2023–2025 GMC Sierra 1500 2.7L I4 Gas

Note:

• Lifetime Limited Warranty
• Compatible with OEM gaskets and filters
• Replacement filter sold separately (SKU 128058500)
• OEM reference numbers: 24045041, 24278775, 24045038
