PPE Raw Deep Transmission Pan & Diff Cover For 19-22 Ram 3500 6.7L AISIN AS69RC

SKU: 228053200 | 238053000

SELECT FITMENT

See If This Product Fits Your Vehicle

$593.98
$593.98

Free Shipping

Free ground shipping on all orders over $99

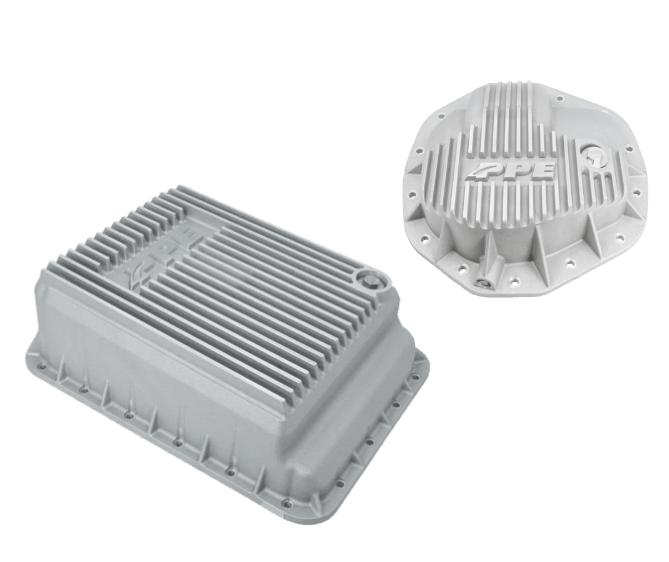

PPE Raw Heavy Duty Aluminum Deep Transmission Pan

PPE’s Heavy-Duty Transmission Pans hold extra fluid and are cast from high-strength A356.0-T6 aluminum for optimal heat dissipation. This pan features internal heat sinks and external cooling fins. These features combine to reduce transmission fluid temperatures. Cooler oil lubricates better which helps increase transmission service life and reduce service costs.

The PPE Heavy-Duty Aluminum Transmission Pan also features a high-powered Neodymium magnet-equipped drain plug to keep harmful ferrous metal contaminants out of the transmission internals.

OEM P/N for Reference: RAM 68214905AA



PPE Raw Heavy Duty 14-Bolt Differential Cover

Specially engineered to minimize friction and maximize lubrication. Keep your RAM rear differential running cool and clean with an upgraded cover from PPE. Made from heavy-duty cast A356.0-T6 aluminum for strength and optimum heat dissipation.

Increased fluid capacity provides increased thermal stamina. This thick cover is equipped with specially designed internal heat sinks and external cooling fins which increase the pan’s surface area helping dissipate heat. This keeps your differential oil running cooler, the oil will keep its viscosity which helps extend differential service life.

To help keep fluid cleaner, PPE includes our exclusive fill plug featuring a high-power Neodymium magnet-equipped fill plug that will pull harmful ferrous metal particles out of your oil before damage occurs.

OEM Part Number: 68458937AB, 68458937AA, 68458238AA



Features:

  • High-grade A356.0-T6 heat-treated cast aluminum alloy
  • 3/4’’ inch external fins improve heat dissipation, lower transmission fluid temperature, and increase strength
  • 3/4’’ internal baffles further improve heat dissipation and reduce fluid sloshing
  • One-inch Neodymium magnet equipped 304 stainless steel drain plug, with Viton O-ring, enables complete fluid drainage
  • Tapped and plugged 1/8" NPT port for optional fluid temperature monitoring sensor
  • Gussets provide extra support to the top flange and increase overall robustness
  • Includes PPE composite gasket with aramid fiber reinforcements
  • Adds an additional 4 quarts of fluid
  • Increases oil capacity
  • Compatible with both the 11.5” and 11.8” rear axle
  • Designed with specially engineered internal ribs to minimize friction/churning and maximize lubrication
  • High-grade A356.0-T6 heat treated cast aluminum alloy
  • Significant reduction in differential fluid temperatures
  • Adds additional strength to the gear housing
  • High-power Neodymium magnet equipped, billet 304 stainless steel fill plug
  • 1/8-inch NPT port for optional temperature probe

Fitment:

  • 2019-2022 Ram 3500 6.7L w/ AS69RC Transmission
Included:
  • (1) Heavy-Duty Cast Aluminum Deep Transmission Pan
  • (1) PPE Aramid Fiber Gasket
  • (1) Drain Plug (installed)
  • (20) M6-1.0 x 25mm socket head cap bolts
  • (20) M6 flat washers
  • (1) 1/8” NPT port plug (installed)
  • (1) Heavy-Duty Cast Aluminum Differential Cover
  • (1) Neodymium Magnet Equipped Fill Plug (installed)
  • (1) Neodymium Magnet Equipped Drain Plug (installed)
  • 1/8-inch NPT plug (installed)
  • (2) Spacers - rear sway bar mount
  • (3) Hex nuts M8 x 1.25, Class 12.9
  • (3) Locating Studs with hex end, M8 x 1.25 x 60mmm
  • (4) Flange bolts, M10 x 1.50 x 35 mm
  • (11) M8 x 1.25 mm x 30 mm socket head cap screws
  • (15) M8 8.25 mm x 15 mm washers
Note:
  • Limited lifetime warranty

Product Specs

SKU:
228053200 | 238053000
