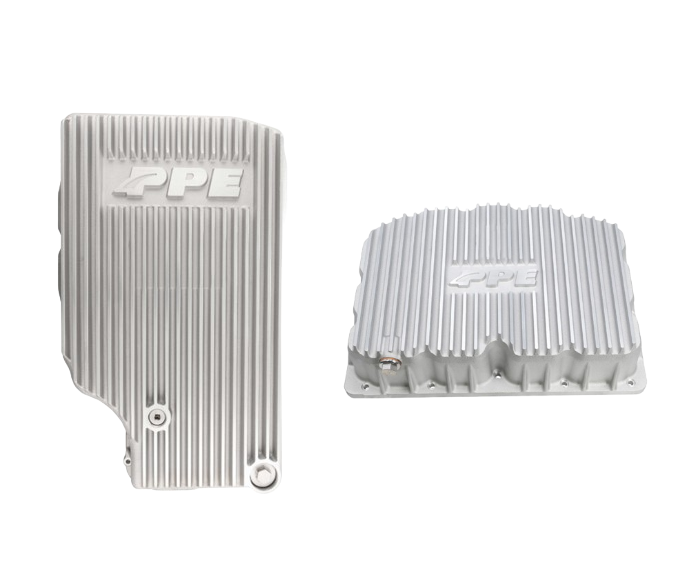

PPE Raw Deep 10R140 Transmission & Oil Pan Kit For 20-25 Ford 6.7L Super Duty
SKU:
328053500 | 314052100
SELECT FITMENT
See If This Product Fits Your Vehicle
- $602.98
- $602.98
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
PPE Raw Heavy Duty 10R140 Transmission Deep Pan
Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.
Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 8 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.
The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.
The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.
A fluid level check standpipe ensures proper fluid level during the filling process. The drain plug and fluid level check plug are both equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission. Keep your 10 speed transmission running longer, healthier, and cooler with PPE.
OEM Part Number for Reference: Ford PC3Z7A194A.
PPE Raw Heavy Duty Cast Aluminum Oil Pan
Cast from high-grade aluminum alloy and holding a full quart over stock, this pan is a perfect upgrade to the factory stamped steel or flimsy plastic versions. We've addressed the major issues associated with the original Ford factory oil pan. Deep external cooling fins radiate heat and help the engine operate at much cooler temperatures than the stock pan. Thanks to its thick, cast aluminum construction, external fins and the addition of side gussets, this easy to install upgrade is much stronger and runs much cooler than the stock units.
The PPE Oil Pan Kit includes a hardened billet stainless steel drain plug which contains a powerful Neodymium magnet that attracts and holds ferrous metal particles, keeping them from damaging your engine's vital internal components.
Transmission Pan Features:
- Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
- Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
- Increases fluid capacity by 8 quarts for higher thermal capacity
- Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
- Deep one-inch internal baffles enhance heat absorption and minimize fluid sloshing
- External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
- Cast-in gussets for additional transmission housing flange support and increased rigidity
- 304 Stainless steel fill plug with built-in high temperature rated neodymium magnet and Viton O-ring
- Fluid fill fitting and fill plug included for easy services
- Included standpipe ensures accurate fluid level checks during the filling process
- Equipped with a 1/8-inch NPT port with pre-installed NPT plug
- Compatible with OEM gasket and filter
Oil Pan Features:
- Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
- Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
- Increases oil capacity by one quart for higher thermal capacity
- 3/8-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
- Cast-in gussets for additional upper oil pan flange support and increased rigidity
- Stainless steel drain plug with built-in high temperature rated neodymium magnet
- Equipped with a 1/8-inch NPT port with pre-installed NPT plug
Fitment:
- 2020-2025 Ford F-250/F-350/F-450 6.7L Super Duty w/ 10R140 Transmission
- Raw Aluminum Transmission Pan
- Drain Plug
- Fluid Adapters
- Check Standpipe
- Mounting Hardware
- Raw Aluminum Oil Pan
- Drain Plug
- Drain Plug Washer
- Mounting Hardware
Note:
- Limited Lifetime Warranty - Oil Pan
- 1 Year Warranty - Transmission Pan
Product Specs
SKU:
328053500 | 314052100
Brand:
PPE
