PPE Transmission Fluid Thermal Bypass Valve For 2014-2015 Chevy/GMC Silverado/Sierra 1500 6L80
SKU:
125068200
- $80.99
- $80.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

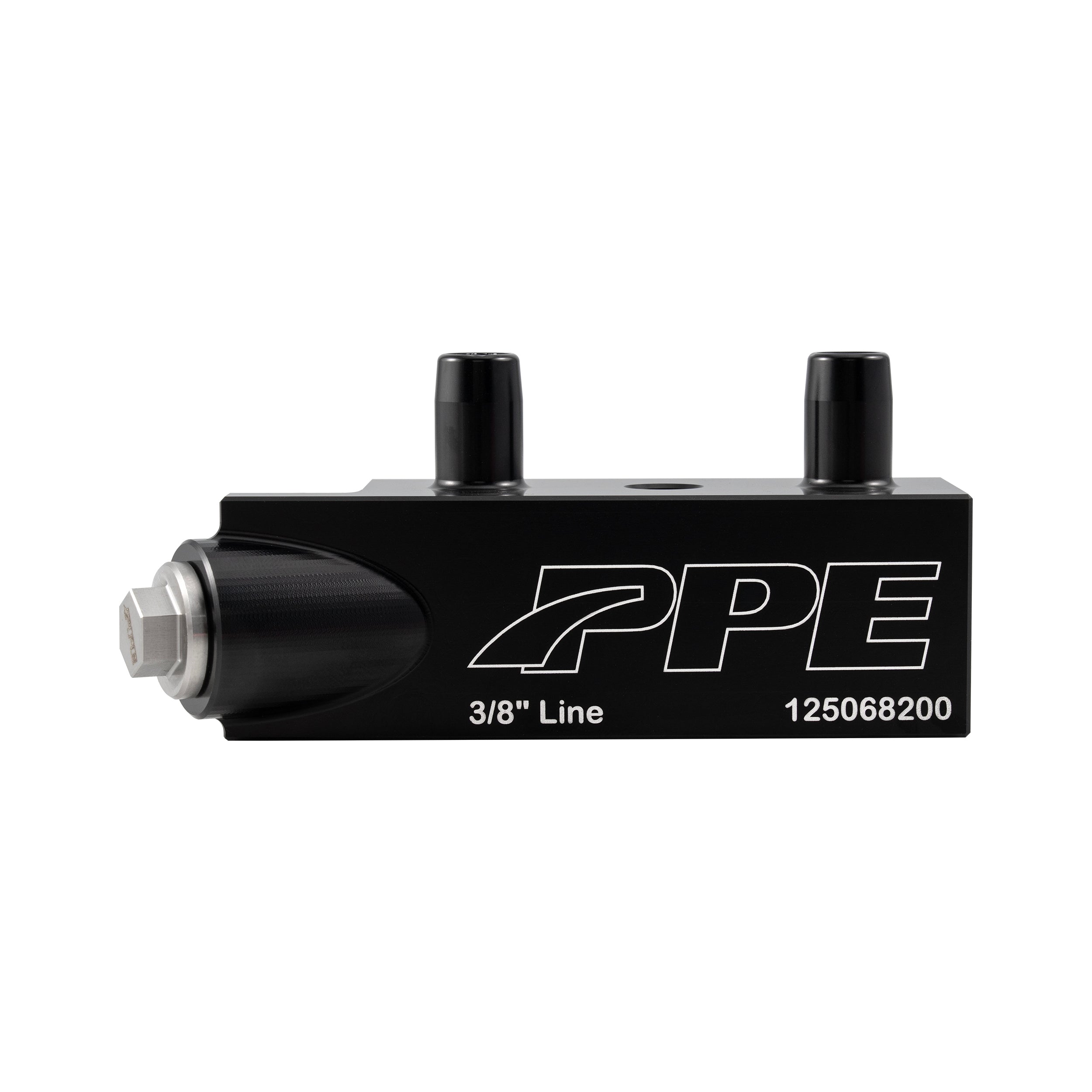

Increase cooling capacity for the 6L80 6-speed automatic in your 2014-2015 Chevy Silverado 1500 or GMC Sierra 1500 with the PPE Transmission Fluid Thermal Bypass Valve. Machined from billet aluminum, it is a direct fit with the OEM 6L80 transmission and 3/8-inch fluid lines equipped with removable quick connect fittings and clip-style retainers, so no new factory lines are needed.
The OEM valve has restrictive internal passages, and when it fails in the open position from mechanical failure or debris, transmission fluid does not reach the cooler, which can cause the Silverado or Sierra transmission to dangerously overheat under towing and stop-and-go driving. The PPE valve eliminates the restrictive mechanical factory valve from the circuit, maximizing fluid flow to and from the transmission cooler. A service plug with a neodymium magnet and O-ring seal traps ferrous debris and can be removed to clear particles from the system, a feature the factory valve does not have.
Features:
- Maximizes fluid flow to and from the transmission cooler
- Billet aluminum construction
- Replaces the restrictive mechanical factory thermal bypass valve
- Direct fit with OEM 6L80 lines with quick connect fittings
- Works with clip-style line retainers on 3/8in lines
- Service plug with neodymium magnet traps ferrous debris
- O-ring sealed service plug removes for inspection
- No new factory transmission lines required
Specifications:
- Brand: PPE
- Part Number: 125068200
- Product Type: Transmission Fluid Thermal Bypass Valve
- Transmission: GM 6L80 6-Speed Automatic
- Line Size: 3/8 in
- Fittings: Reuses OEM Removable Quick Connect
- Material: Billet Aluminum
- Finish: Raw
- Service Plug: Magnetic with O-Ring Seal
- OE Reference: GM 86774933
- Package Dimensions: 5 x 3.7 x 2.2 in
- Weight: 0.7 lb
- Warranty: Limited Lifetime
Included:
- (1) Transmission Fluid Thermal Bypass Valve
- (1) Service Plug with Neodymium Magnet (Installed)
Fitment:
- 2014-2015 Chevy Silverado 1500 6L80 6-Speed Automatic
- 2014-2015 GMC Sierra 1500 6L80 6-Speed Automatic
Notes:
- Limited Lifetime Warranty
- Warranty does not cover modifications, alterations, or misuse
- Direct fit with OEM 6L80 lines equipped with removable quick connect fittings
- Reuses the factory quick connect fittings, retaining clips, and mounting bolt
- Factory seal is reused; two PPE Compound Washers (114052004) are an optional replacement for OEM seal 85628205 and are not included
