For over 40 years, we've relentlessly redefined suspension mechanics and technology in the motorcycle market. Now, after four decades of leading through superior innovation, we're not just raising the bar - we're shattering it. Our revolutionary Frequency Sensing Technology (FST) has redefined the motorcycle world for over a decade, delivering unparalleled handling and road comfort to riders of every creed. Today, we're thrilled to unleash this game-changing technology into a whole new realm for automotive fanatics, empowering you to extract maximum performance from your vehicle.
Features:
- Our F.S.T. piston assembly takes the guess work out of damping curve tuning
- Spend more time driving and less time tuning for specific scenarios. With this technology, there is no need for external adjustments or the hassle of learning to tune
- Frequency Sensing Technology shines in its ability to adapt & overcome
- Compression Ports - The main pathway in which oil flows in the compression section of the stroke once it makes its way around the compression shims
- F.S.T. Ports - Bypass ports that are a crucial part of our patented system that allow for dynamic alteration of damping curves
- Valving Shims - Stacks of "shims" in varying diameters and thickness help tune damping curves for different applications
- Rebound Ports - The main pathway in which oil flows in the rebound section of the stroke once it makes its way around the rebound shims
- Floating O-Ring - Depending on input, the O-ring will move to different spots to open or close the F.S.T. bypass ports
Specifications:
- Body Material: 46.0mm extruded 6061-T6 aluminum tubes
- Body Plating: Polished and anodized tube for a superior look and corrosion resistance.
- Reservoir Spec: 46.0mm precision bored 6061-T6 Aluminum anodized tube
- Shaft Specs: 16.0mm hard chrome high carbon alloy steel rod
- Piston: State of the art high flow multipiece FST piston
- Valving: Application specific valving tuned simultaneously with FST
- Seals: One piece seal with separate double lipped dirt excluder
- Bushings: High performance urethane bushings for increased durability and handling
- Compressed Length (in): 15.53
- Extended Length (in): 24.55
- Travel Length (in): 9.02
- Top Mount Type: Eyelet
- Bottom Mount Type: Post
Fitment:
- 2007-2018 Jeep Wrangler JK (With 1.5"-3.0" Lift)
Included:

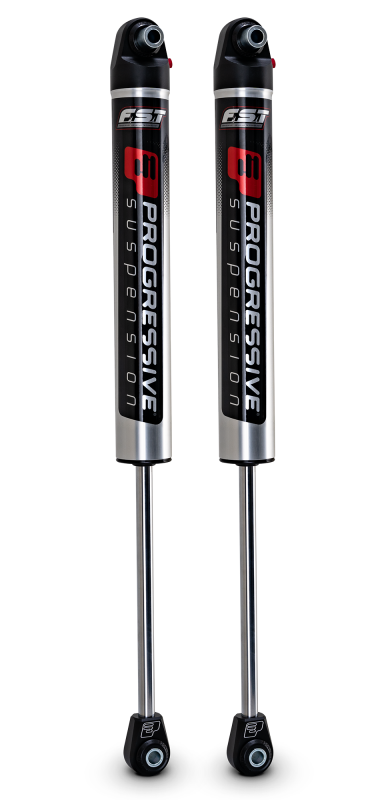

- (2) STR46 Series Front Shocks
Note:
- 2 Year Warranty
- Direct Replacement
