Razorback 3.2 Red Dimmable Infrared CVT Belt Temp Gauge with AutoMeter Mount

The 3.2 Dimmable Gauge is the latest & greatest version of our patented, thermally compensated, infrared belt temperature gauge design. This gauge allows for real-time monitoring of belt surface temperature, and features multicolor LED temperature alerts. On the anti-glare LCD screen you'll be able to easily monitor current, average, and high belt temperatures.

Our added rocker switch now allows you to dim both the LED light as well as your LCD screen. Cycle between 5 levels of brightness to suit your riding needs! You will also have the ability to customize the settings by holding in your rocker switch for 2 seconds. NEW Gauge Menu Features!

Our thermally compensated infrared sensors are medical grade, and are manufactured to withstand the harsh environments found in motorsports.

Our gauges are water resistant to IP65 and IP67 on the sensor and connections.

Using AutoMeter's universal gauge cup, you can mount your gauge anywhere you see fit. The universal pedestal gauge cup can be mounted inside or

outside of the cabin, on top, or under the dash. The possibilities are endless.

Features:

• NEW Dimmable Feature- Rocker switch will dim both LCD screen and LED indicator light with single push of switch. Open up MENU with 2 second hold on switch.

• LCD Screen - Easy to see, even when the sun is bearing down overhead.

• LED Alerts - The incorporated LED has been programmed to change colors as your belt reaches certain temperatures. Default settings are Green at less than 200 F. Yellow at 200 F. Red at 225 F. Red Strobe at 245 F. Fast Red Strobe at greater than 260 F. For maximum belt life, try to avoid temperatures in excess of 200-225 F.

• Machined from steel and aluminum. Not plastic.

• Water protection: IP65 Gauge. IP67 Sensor and Connections.

• Quick-Release Sensor
• Black powder coated steel cup, mounting strap, and black aluminum base
• Versatile mounting base design offers the ability to mounting using conventional fasteners or band clamps.
• User adjustable settings allow for a variety of mounting locations and angles suitable for most vehicles.
• Suitable for use with AutoMeter Electric, Mechanical, and Digital Stepper Motor instruments.

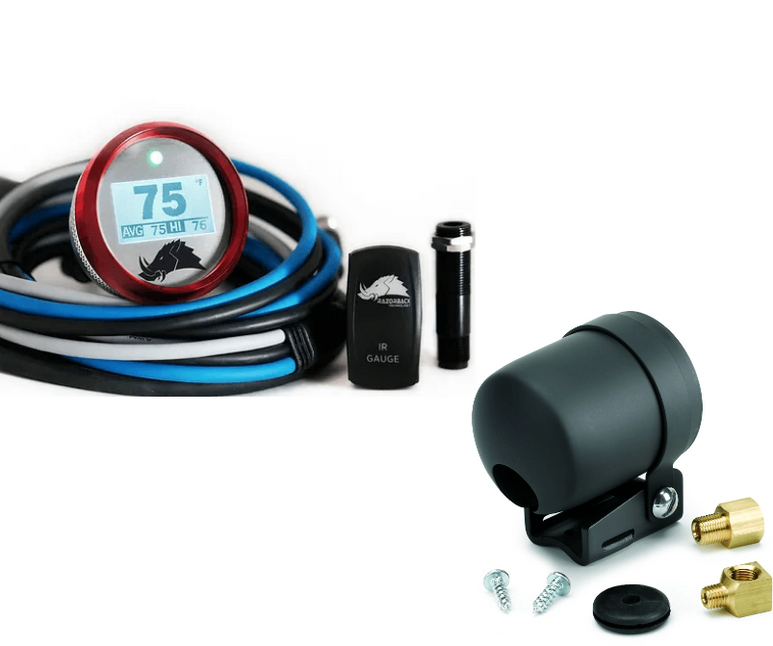

Included:

• (1) 3.2 Dimmable Gauge
• (1) 15 ft. Sensor Cable
• (1) 2-1/16" AutoMeter Pedestal With Black Cup (2204)

• (1) Hardware Kit

Fitment:

• Polaris RZR

• Polaris RZR 4

• Polaris Ranger

• Polaris Ranger 4

• Polaris General

• Polaris General 4

• Polaris RS1/Ace

• Polaris Sportsman

• Polaris Scrambler

• Can-Am Maverick X3

• Can-Am Maverick X3 Max

• Can-Am Maverick

• Can-Am Maverick 4

• Can-Am Commander

• Can-Am Outlander

• Can-Am Renegade

• Can-Am Ski-Doo Snowmobile Models
• Kawaski Teryx

• Artic Cat Wildcat
• Any Other UTV, ATV, Snowmobile With CVT Transmission

Notes:

• Minor customization to fit our 3.2 Dimmable Gauges. Hole in back of mount needs to be cut/drilled out to fit electrical harnesses
