ReadyLIFT 2.5" Front Coil Spring Lift Kit For 20–25 Ford F-250/F-350 SD 6.7L 4WD

ReadyLIFT’s 2.5" Coil Spring Front Lift Kit (PN 46-20252) is built specifically for 2020–2025 Ford Super Duty F250 and F350 4WD diesel trucks. This system enhances ground clearance and provides a more aggressive stance while maintaining factory ride comfort. It supports 35" tires, or up to 37" with trimming, and includes model-specific components like brake line brackets, bump stop extensions, and sway bar frame mounts to preserve suspension geometry and handling. Ideal for retaining factory shocks, the kit installs easily and provides reliable on- and off-road performance.

Tremor models will achieve approximately 1.125" of lift instead of the full 2.5". Trucks equipped with the factory Onboard Scale system will require the optional Auto-Leveling Headlight Bracket (PN 67-23210). In certain cases, retaining the factory track bar bracket may be necessary if the axle is off-center. For trucks with a single vacuum hub, ReadyLIFT advises avoiding the use of caster eccentrics and instead recommends using radius arm drops or ReadyLIFT radius arms for best alignment and handling results.

For best results, use radius arm drops or ReadyLIFT radius arms

Features:

• Provides 2.5" front lift for 2020–2025 Ford Super Duty Diesel 4WD
• Designed to retain factory front shocks for stock ride quality
• Allows fitment of up to 35" tires (up to 37" with trimming)
• Includes model-specific brake line extension brackets
• Includes bump stop extensions to prevent over-compression
• Includes front sway bar frame mount drop brackets
• Made in the USA with high-strength components
• Bolt-on installation—no cutting or welding required
• Maintains proper suspension geometry and alignment

Specifications:

• Springs: Progressive-rate coil springs
• Brackets: Laser-cut steel sway, brake, and bump stop brackets
• Shocks: Designed to retain factory shocks (not included)
• Lift Height: 2.5" front lift using heavy-duty coil springs
• Tire Fitment: Fits up to 35"; 37" with minor trimming
• Wheel Fitment: Ideal 35x12.50 on 9–10” wheels, +25 to 0 offset
• Fitment: For 2020–2025 Super Duty 4WD diesel trucks only
• Ride: Maintains factory ride with better stance and clearance
• Tremor trims will gain ~1.125" (not full 2.5”)

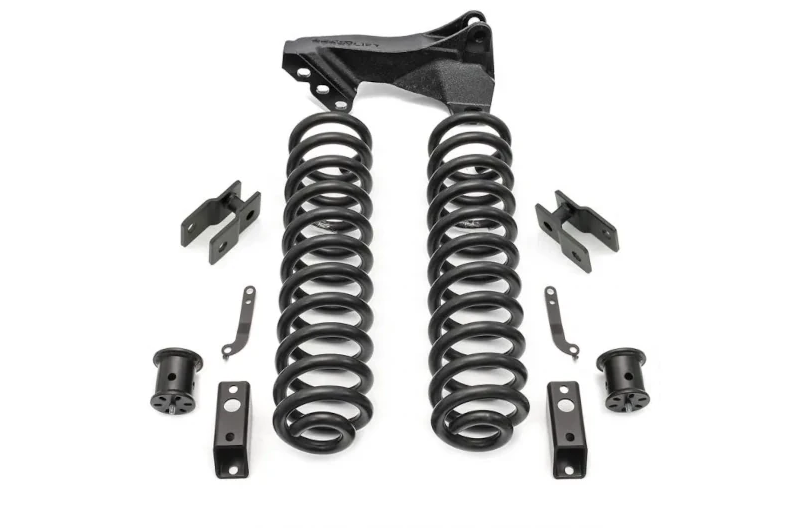

Included:

• (2) Front coil springs
• (2) Brake line extension brackets
• (2) Bump stop extension brackets
• (2) Sway bar frame mount brackets
• All required hardware

Fitment:

• 2020–2025 Ford F-250 Super Duty 4WD (Diesel only)
• 2020–2025 Ford F-350 Super Duty 4WD (Diesel only)

Notes:

• 3 Year Warranty
• Does not fit gas engine models
• Trucks with Onboard Scale need PN 67-23210 (Auto-Leveling Headlight Bracket)
• May require retaining factory track bar bracket on some models
• Avoid caster eccentrics if equipped with a single vacuum hub
