ReadyLift 3.5" SST Lift Kit For 17-20 Ford Super Duty With 1-Piece Drive Shaft
ReadyLift 3.5" SST Lift Kit For 17-20 Ford Super Duty With 1-Piece Drive Shaft
ReadyLift

ReadyLift 3.5" SST Lift Kit For 17-20 Ford Super Duty With 1-Piece Drive Shaft

SKU: 69-2735

SELECT FITMENT

See If This Product Fits Your Vehicle

$739.95
$739.95
$0.00

Free Shipping

Free ground shipping on all orders over $99
Description

ReadyLift 3.5" SST Lift Kit For 2017-2020 Ford Super Duty With 1-Piece Drive Shaft



ReadyLIFT Suspension has engineered a 3.5" lift kit made to fit the 2017-2020 Ford F250/F350 SuperDuty 4WD trucks with a one-piece drive shaft. These new 3.5" lift kits allow for wheel and tire combinations up to 37" while keeping the smooth OEM ride and drivability. This is a complete lift kit includes 4" OEM-equivalent rear blocks with integrated bump stop landings, 3.5" coil spring extensions with sound isolators, an OEM-style panhard drop bracket, front bump stops OEM shock extension brackets, a pair of radius arm drop brackets, and all needed hardware. When used with the maximum size tires, the F250 truck body is raised over 6". ReadyLIFT Smart Suspension Technology is used to make this kit very user-friendly to install, requiring no cutting or drilling. Like all other ReadyLIFT kits, the F250/F350 3.5" SST Lift Kit is guaranteed for life against manufacturing defects.

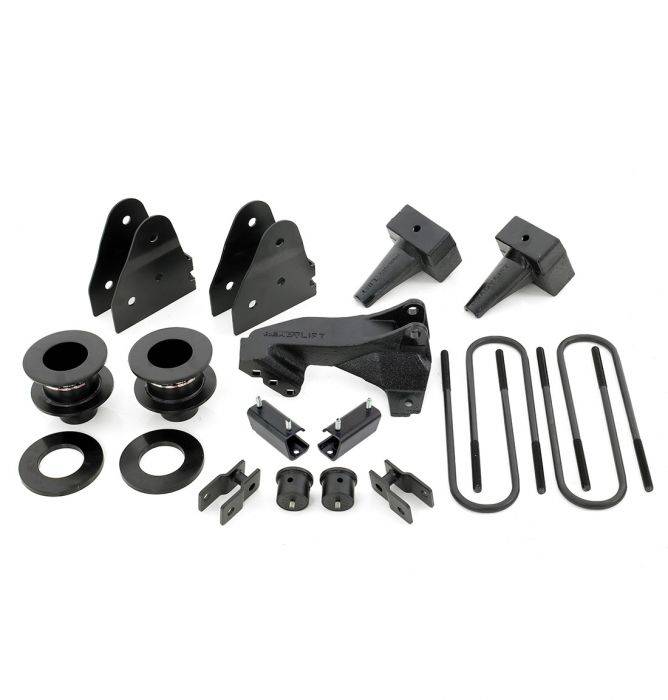

Kit Components:

  • Two coil spring spacers with poly sound isolators.
  • Two front shock extensions.
  • Radius arm drop brackets.
  • Two front sway bar mount spacers.
  • One front track bar relocation bracket.
  • Two OEM style cast rear lift blocks with longer u-bolts and hardware.
  • Two bump stop extensions.
  • Extended length front brake line brackets.



Fits:

  • 2017-2020 Ford Super Duty F-250/F-350 4WD
  • 1-Piece Driveshaft ONLY


Tire Fitment:

  • Recommended tire size: 37" - 12.5"
  • Recommended wheel: 17" and up x 9" wide, +25 offset / 6" backspacing (minor trimming of the front valance may be necessary)



Notes:

  • For use with trucks with a one-piece drive shaft.
  • The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.
  • 2020 Super Duty may sit slightly taller in the rear than prior model years due block height variations from the Ford factory. The additional rake works well visually with the vehicle's body lines.
  • NOT compatible with TREMOR editions.
  • Max Lift: 3.5" Front & 1.0" Rear
Fitment
Fitment

Product Specs

SKU:
69-2735
Brand:
ReadyLift
part type:
Suspension & Steering
