ReadyLIFT SST 4" Lift Kit For 2019-2024 Chevy/GMC Silverado/Sierra 1500 2WD/4WD

Upgrade your 2019–2024 Chevy Silverado or GMC Sierra 1500 with the ReadyLIFT 69-39400 4" SST Lift Kit. This premium no-cut kit provides a 4" front and 3" rear lift while preserving factory ride quality and handling. Designed for trucks equipped with or without Adaptive Ride Control (ARC), the kit includes heavy-duty steel strut spacers, CNC-machined billet aluminum preload spacers, and tubular upper control arms with corrected ball joint angles and maintenance-free TCT bushings. The rear lift utilizes 3" OE-style cast iron blocks and extended U-bolts, adding a subtle rake that enhances both towing capability and vehicle stance. This system allows up to 295/65R20 tires on 2019–2022 Chevy trucks and up to 295/55R20 on 2019–2024 GMC and 2023–2024 Chevy trucks.

Please note: this kit is not compatible with Trail Boss, ZR2, AT4, AT4X, or 2019 Silverado/Sierra Limited “LD” old body style models. It is also incompatible with trucks featuring mono-leaf rear springs, identifiable by round U-bolts. Super Cruise and Auto 4 Hi are not supported. This kit is intended for use with traditional steel leaf spring setups and is not designed for extreme off-road abuse. Some 2025 models may require U-bolt part #67-35120UB for proper fitment. Always confirm your vehicle’s suspension configuration before purchasing.

Features:

• 4" front and 3" rear lift for aggressive stance
• Compatible with ARC and non-ARC suspension
• No-cut, bolt-on installation design
• TCT bushings for zero-maintenance durability
• Tubular upper control arms with ball joints
• CNC billet preload spacers improve driveline
• Rear 3" cast blocks with extended U-bolts
• Fits up to 35” tires on proper wheel setup
• Max tire size 295/65 R20 20x9 0 offset - 2019-2022 Chevy
• Max tire size offset 295/55-R20 20x9 0 - 2019-2024 GMC & 2023-2023 Chevy

Specifications:

• Material: Tubular DOM steel upper control arms
• Ball Joints: Heavy-duty 1-ton with ARC adapter
• Front Lift: 4.0 inches
• Rear Lift: 3.0 inches
• Front Spacer Material: Fabricated steel
• Preload Spacer: CNC-machined billet aluminum
• Rear Block: Cast iron with axle pad locating ears
• Install Type: Bolt-on, no cutting or welding

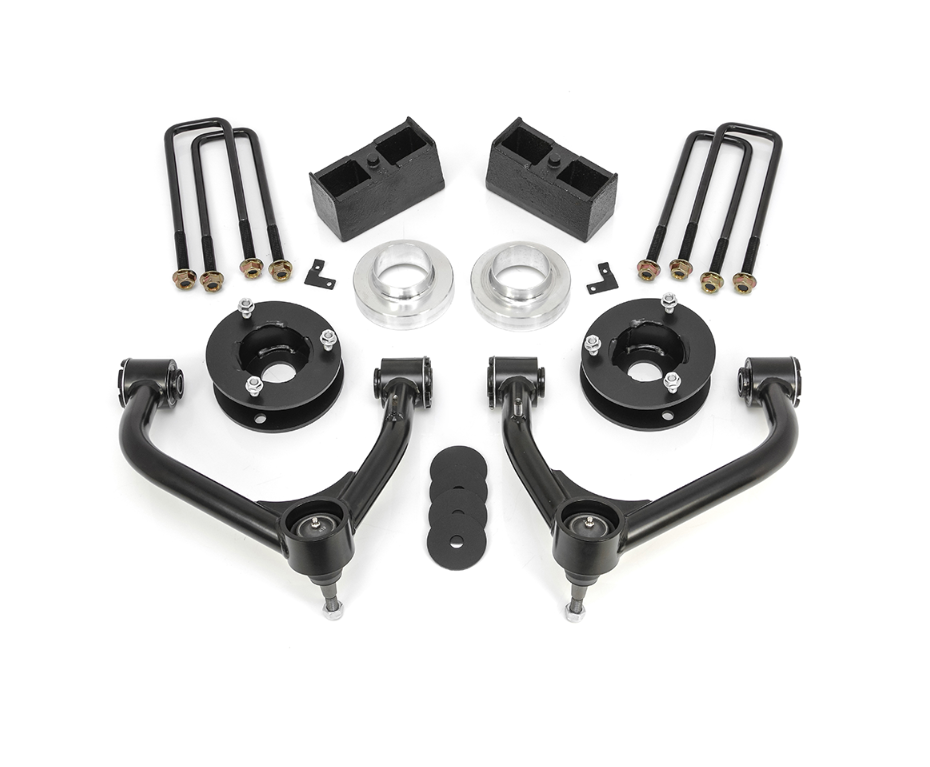

Included:

• (2) Tubular Upper Control Arms w/ ARC adapter
• (2) Front Strut Spacers
• (2) Preload Spacers
• (4) Washers
• (2) 3" Rear Lift Blocks
• (4) Extended Rear U-Bolts
• (1) ARC Relocation Bracket
• (1) Hardware Pack

Fitment:

• 2019–2024 Chevrolet Silverado 1500 2WD/4WD
• 2019–2024 GMC Sierra 1500 2WD/4WD

Notes:

• 3 Year Warranty
• Not compatible with mono-leaf rear springs (identified by round U-bolts)
• These will not fit late model 2024 or 2025 applications that have round U-bolts
• Using U-bolt part number 67-35120UB will allow this kit to fit 2025 applications
• Not compatible with Trail Boss, ZR2, AT4, AT4X, or 2019 Limited “LD” models or with Super Cruise or Auto 4 Hi mode
