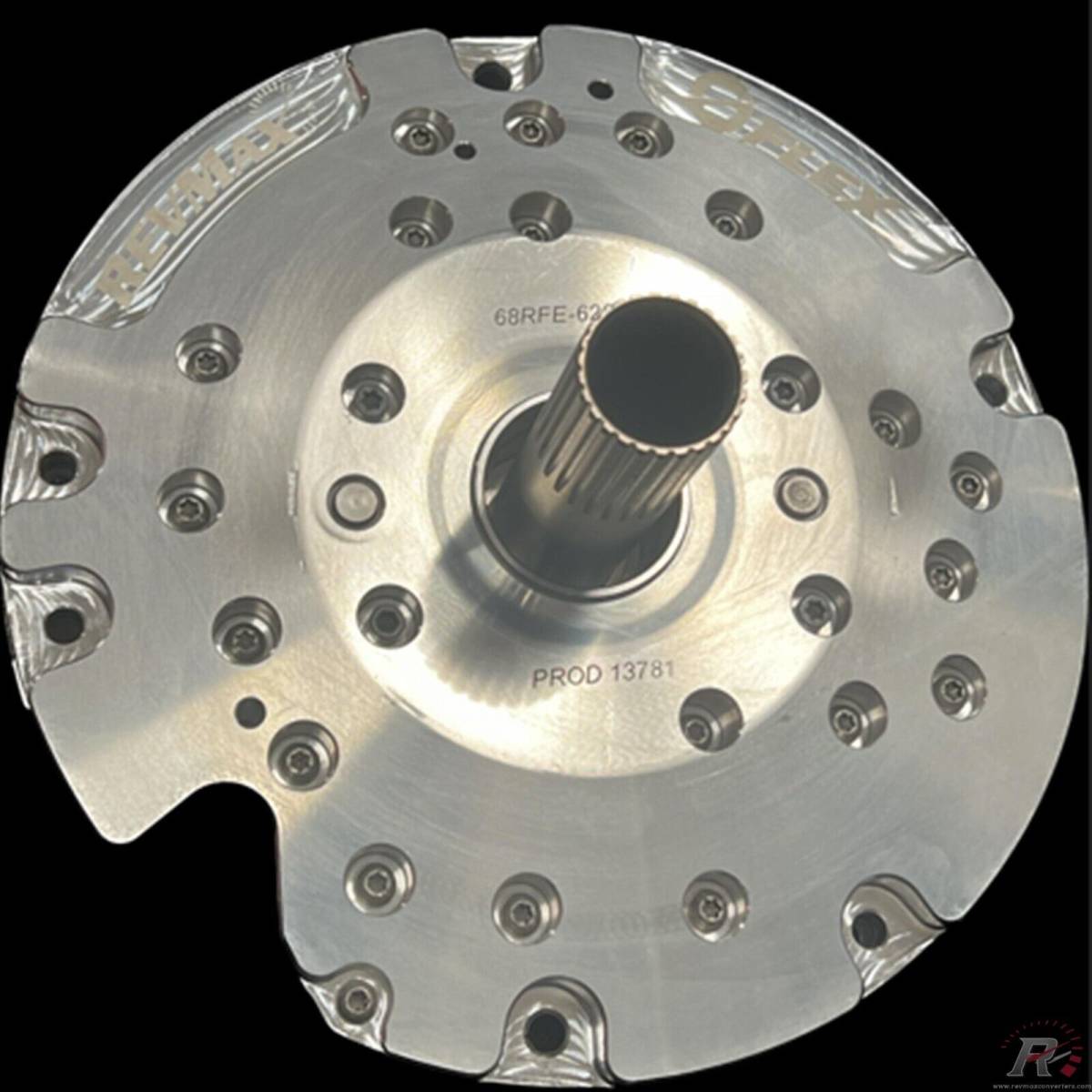

Image of RevMax Billet Modified High Pressure oil Pump For 07-18 RAM 6.7L Diesel 68RFE
Image of RevMax Billet Modified High Pressure oil Pump For 07-18 RAM 6.7L Diesel 68RFE
Image of RevMax Billet Modified High Pressure oil Pump For 07-18 RAM 6.7L Diesel 68RFE
Image of RevMax Billet Modified High Pressure oil Pump For 07-18 RAM 6.7L Diesel 68RFE
Image of RevMax Billet Modified High Pressure oil Pump For 07-18 RAM 6.7L Diesel 68RFE
Image of RevMax Billet Modified High Pressure oil Pump For 07-18 RAM 6.7L Diesel 68RFE
Revmax

RevMax Billet Modified High Pressure oil Pump For 07-18 RAM 6.7L Diesel 68RFE

SKU: 68rfe-615BB

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,599.00
$1,599.00
$2,962.00

Free Shipping

Free ground shipping on all orders over $99
Availability:
2 Week Lead Time
Description

The RevMax 68rfe High Performance Pump has been upgraded and modified to be able to produce over 325 PSI with proper tuning. However, you would need our RevMax 68rfe valve body to be able to achieve more than 175 PSI because of factory restrictions. Also, just because our pump can achieve extremely high pressure, does not mean that recommend more than 225 PSI in the 68rfe transmissions. All 68rfe pumps have been reworked with new valving, springs and have passed multiple vacuum and pressure tests to ensure proper operation and reliability for many years!

 We have always wondered why so much attention has been paid to the warpage of the valve body on the 68RFE and none to the pump! Transmission builders across the country (those that have access to surface plates) have known for years that the 68RFE pump is prone to warpage. Just like the valve body, the pump too doesn’t have a gasket and relies on perfectly flat mating surfaces to seal properly. When the pump is new these surfaces seal pretty good but after hundreds or thousands of heat cycles warpage becomes a huge issue. We have seen used pump bodies with up to .020” warpage and nearly every pump we inspect has a moderate amount.



Features:

  • Billet 6061 construction
  • Revised worm tracks to more efficiently move oil
  • 5 Axis CNC milled gear and face profile
  • Nearly 3x thicker than an OEM pump
  • Will not warp even under the most grueling conditions
  • Surface is flat within .0003”
  • Fits 2007.5-2018 68RFE transmissions



Fitment:

  • 2007-2018 Dodge Ram 2500/3500 Cummins 68RFE Transmission



Included:

  • Billet Modified Transmission Oil Pump



Note:

  • Direct Replacement
Fitment
Fitment

Product Specs

SKU:
68rfe-615BB
Brand:
Revmax
availability remarks:
2 Week Lead Time
