RockJock Adjustable Sway Bar End Link Set (12 1/2 in. Rods, Sealed Ends) - Universal
RockJock

RockJock Adjustable Sway Bar End Link Set (12 1/2 in. Rods, Sealed Ends) - Universal

SKU: RJ-253203-103

SELECT FITMENT

See If This Product Fits Your Vehicle

$196.00
$196.00
$221.00

Free Shipping

Free ground shipping on all orders over $99
Description

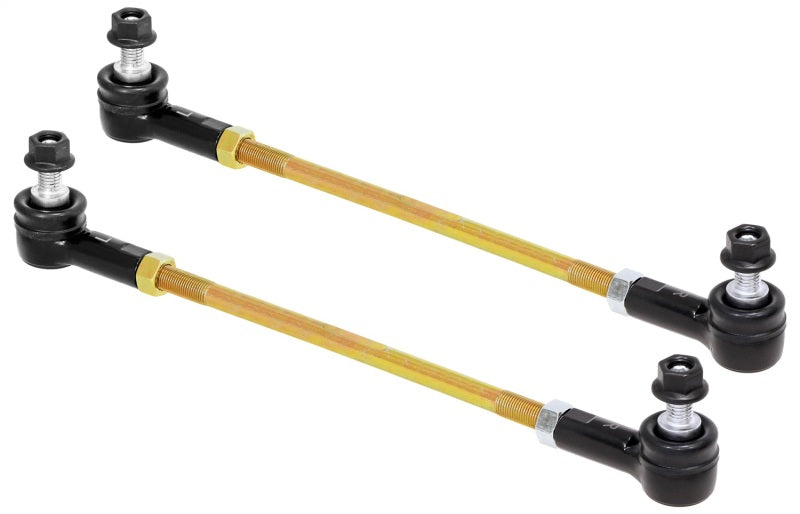

This RockJock Adjustable Sway Bar End Link Set features 12 1/2 in. long link rods with 2 5/8 in. of 1/2 in.-20 LH thread and 2 5/8 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application. The Sealed Rod Ends in this kit are a RockJock exclusive and feature a weatherproof boot for a long life span in all climates. Link sets compatible with our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links. Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.



Gold Rod Specs:

  • 12 1/2 in. Long
  • 1/2 in. Diameter
  • 1/2 in.-20 LH Threads – 2 5/8 in. Long
  • 1/2 in.-20 RH Threads – 2 5/8 in. Long
  • Center Smooth Area – 7 1/4 in. Long

Adjustment Range:

  • Closed – At maximum trimming of this rod (15/16 in. of thread left on each side and the ends and jam nuts screwed on til they meet the smooth area of the rod), C-C is 12.765 in.
  • Extended – Uncut rods with ends installed safely adjust out to 16.140 in. C-C

Fitment:

  • Universal

Included:

  • (2) 12 1/2 in. End Link Rods (gold)
  • (2) 1/2 in.-20 LH Sealed Rod Ends
  • (2) 1/2 in.-20 RH Sealed Rod Ends
  • (2) 1/2 in.-20 LH Jam Nuts
  • (2) 1/2 in.-20 RH Jam Nuts

Note:

  • Threaded stud length is 1in., making the sealed ends incompatible with 3/4 in. thick aluminum Antirock arms
  • Wrench flats:  gold rods - 11mm wrench,  sealed rod ends – 18mm wrench,  jam nuts - 3/4 in. wrench
Fitment
Fitment

Product Specs

SKU:
RJ-253203-103
Brand:
RockJock
