RockJock Adjustable Sway Bar End Link Set (3 1/2 in. Rods, Sealed Ends) - Universal
RockJock

RockJock Adjustable Sway Bar End Link Set (3 1/2 in. Rods, Sealed Ends) - Universal

SKU: RJ-283100-101

SELECT FITMENT

See If This Product Fits Your Vehicle

$191.00
$191.00
$221.00

Free Shipping

Free ground shipping on all orders over $99
Description

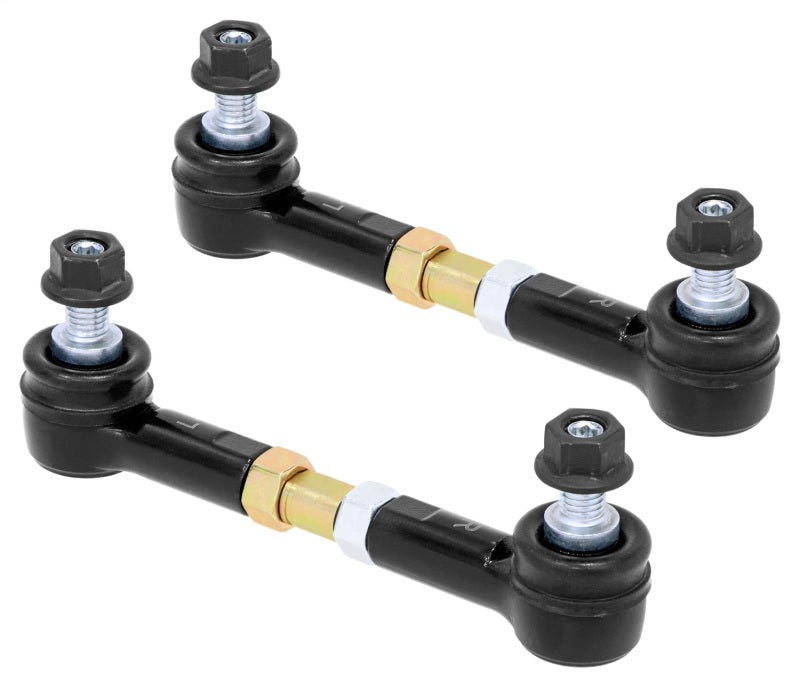

This RockJock Adjustable Sway Bar End Link Set features 3 1/2 in. long link rods with 1.40 in. of 1/2 in.-20 LH thread and 1.40 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application. The Sealed Rod Ends in this kit are a RockJock exclusive and feature a weatherproof boot for a long life span in all climates. Link sets are included in our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links. Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.



Gold Rod Specs.:

  • 3 1/2 in. Long
  • 1/2 in. Diameter
  • 1/2 in.-20 LH Threads – 1.40 in. Long
  • 1/2 in.-20 RH Threads – 1.40 in. Long
  • Center Smooth Area – .700 in. Long
  • Wrench Flat accepts a 1/2 in. wrench

Adjustment Range:

  • Closed – At maximum trimming of this rod (15/16 in. of thread left on each side and the ends and jam nuts screwed on til they meet the smooth area of the rod), C-C is 6.215 in
  • Extended – Uncut rods with ends installed safely adjust out to 7.140 in. C-C

Fitment:

  • Universal Use
  • (Included in) 2021-Up Bronco Front Antirock Sway Bar Kits
  • (Included in) 2021-Up Bronco Rear Antirock Sway Bar Kits

Included:

  • (2) 3 1/2 in. End Link Rods (gold)
  • (2) 1/2 in.-20 LH Sealed Rod Ends
  • (2) 1/2 in.-20 RH Sealed Rod Ends
  • (2) 1/2 in.-20 LH Jam Nuts
  • (2) 1/2 in.-20 RH Jam Nuts

Note:

  • These are the links that we include in our 2021-up Bronco front Antirock Sway Bar Kit
  • Threaded stud length is 1in., making the sealed ends incompatible with 3/4 in. thick aluminum Antirock arms
  • Wrench flats:  gold rods – 1/2 in. wrench,  sealed rod ends – 18mm wrench,  jam nuts - 3/4 in. wrench



Fitment
Fitment

Product Specs

SKU:
RJ-283100-101
Brand:
RockJock
