RockJock Aluminum Antirock Sway Bar Arms For 1984-2024 Jeep Wrangler/Cherokee
RockJock

RockJock Aluminum Antirock Sway Bar Arms For 1984-2024 Jeep Wrangler/Cherokee

SKU: RJ-202012-101

SELECT FITMENT

See If This Product Fits Your Vehicle

$510.00
$510.00
$530.00

Free Shipping

Free ground shipping on all orders over $99
Description

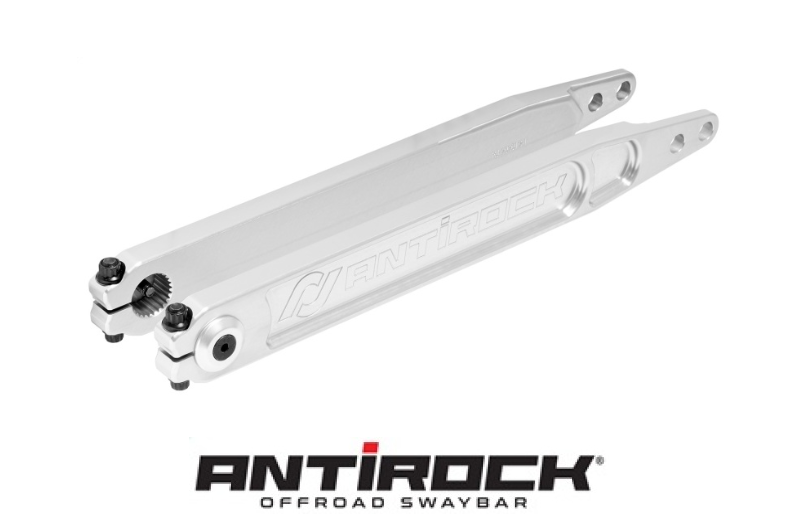

Billet Aluminum Antirock Sway Bar Arms are beautifully constructed, yet offer race quality strength for aggressive off road applications! Made entirely in house on our own machines, we start with premium 7075T6 aluminum material, CNC machine the arms to shape, CNC machine the pocketed design and the logo etchings, broach the 25 splines and finish them off in clear anodizing! These specific arms are 17 in. long from tip to tip, 3/4 in. thick (with the exception of the tip being machined to 3/8 in. thick for end link mounting). At the arm mounting end, you’ll find our standard 25 spline that fits all common Antirock torsion bars. Our billet aluminum finishing washers and flat head allen bolts that thread into the end of the sway bar torsion bar are also included, as well as the arm-to-torsion-bar pinch bolts and nuts. At the end link mounting end, the arms trim down to 3/8 in. thick and you’ll find two 1/2 in. Sway Bar End Link mounting holes that allow you to adjust end link mounting position to increase or decrease leverage on the torsion bar. These 2 holes are commonly used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit.


Features:
  • Enhances Off-Road Performance
  • Improves Articulation
  • Balanced Traction Control
  • Reduces Body Roll
  • Maintains On-Road Stability
  • Heavy-Duty Design
  • Easy Installation
  • 2 Year Warranty
Specifications:
  • Overall length = 17 in.
  • Thickness = 3/4 in. (with the exception of the tip being machined to 3/8 in. thick for end link mounting)
  • Material = 7075T6 aluminum
  • Spline count = 25
  • Center of splined hole to center of nearest 1/2 in. hole = 14.195 in.
  • Center of splined hole to center of middle 1/2 in. hole = 15.195 in.
  • Weight = 3.5 lbs. (for the pair)
Vehicle Fitment:
  • 2018-2024 Jeep Wrangler JL
  • 1984-2001 Jeep Cherokee XJ
Arms Fitment:
  • Universal Application (in 25 spline torsion bar applications)
  • JL Wrangler Unlimited (4-door) rear Antirock Kits CE-9900JLR4
  • JL Wrangler (2-door) rear Antirock Kits CE-9900JLR4
  • XJ Cherokee front Antirock Kits CE-9900XJF
Included:
  • (1) Pair of 17 in. long Forged Antirock Sway Bar Arms
  • (1) Arm Hardware Pack
Note:
  • These arms are for upgrading our CE-9900JLR4 JL rear Antirock Sway Bar Kits as well as our CE-9900XJF XJ Cherokee and MJ Comanche front Antirock Sway Bar Kits
  • Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in
Fitment
Fitment

Product Specs

SKU:
RJ-202012-101
Brand:
RockJock
