RockJock - High Steer Knuckle Kit(Stabilizer Shock,Trac Bar) - For JK Wrangler

SKU: RJ-430001-103

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,304.00
$2,304.00

Free Shipping

Free ground shipping on all orders over $99

RockJock's High Steer Knuckle Kit for JK Wrangler and Unlimited vehicles is a game changer that provides everything you need to get the job done! The components in this kit are specifically engineered to modernize your JK's steering and trac bar geometry to the improved specs. of a JL/JT, dramatically improving drivability as well as off-road performance.
Intended for use on factory axles (Dana 30 and 44), this kit replaces the factory knuckles with our RJ-437100-101 cast iron high steer knuckles that exceed OEM quality and strength. Our knuckles raise both the tie rod and the drag link 2 3/4 in., moving the rods out of the way of rocks and helping to restore factory steering geometry for improved drivability and overall road comfort on a lifted rig. Additionally, the new knuckles push the tie rod outward, away from the axle slightly, allowing for tighter (JL/JT) steering angle over that of stock JK and 1 ton axles. 2 adjustable steering stop locations (fore and aft of axle centerline) for full lock-to-lock adjustability ease the strain on steering components at full lock.
Our Currectlync steering included in this kit features our revolutionary high articulation JK-9704DL-T forged chromoly drag link that incorporates a unique organic shape with many compound curves that can only be achieved via forging, resulting in maximum up-travel capabilities. Our RJ-432103-101 tie rod is a 42mm (1 5/8 in.) diameter chromoly tube. All Currectlync steering ends are forged steel and comparable in size to those found on modern 1-ton trucks. The included RJ-9120FJLF forged chromoly organically shaped JL/JT front trac bar's longer length pushes the trac bar adjuster joint outboard of the frame rail providing an additional 5/8 in. of up-travel!
Given the dramatic geometry changes vehicle lifts impose, this kit includes our RJ-431110-103 fully integrated trac bar relocation and steering stabilizer shock mount raised 2 in., and corrects it's geometry to prevent bump steer, as well as providing you with a solid mounting point for a JL/JT spec. steering stabilizer shock (allowing for more steering angle).
Also provided is our RJ-441002-101 fabricated steel steering stabilizer shock tie rod clamp that easily installs onto the 42mm (1 5/8 in.) tie rod tube, allowing for full adjustability and an easy hook-up point for the other end of your shock.
The new knuckles allow for all other factory outer components to be retained, including ball joints, unit bearings, outer axles, brakes and dust shields. The use of our RJ-9120FJKF forged chromoly organically shaped front trac bar and our RJ-107101-101 fully adjustable front bump stop kit to ensure that all components nest together for maximum up-travel, as engineered.

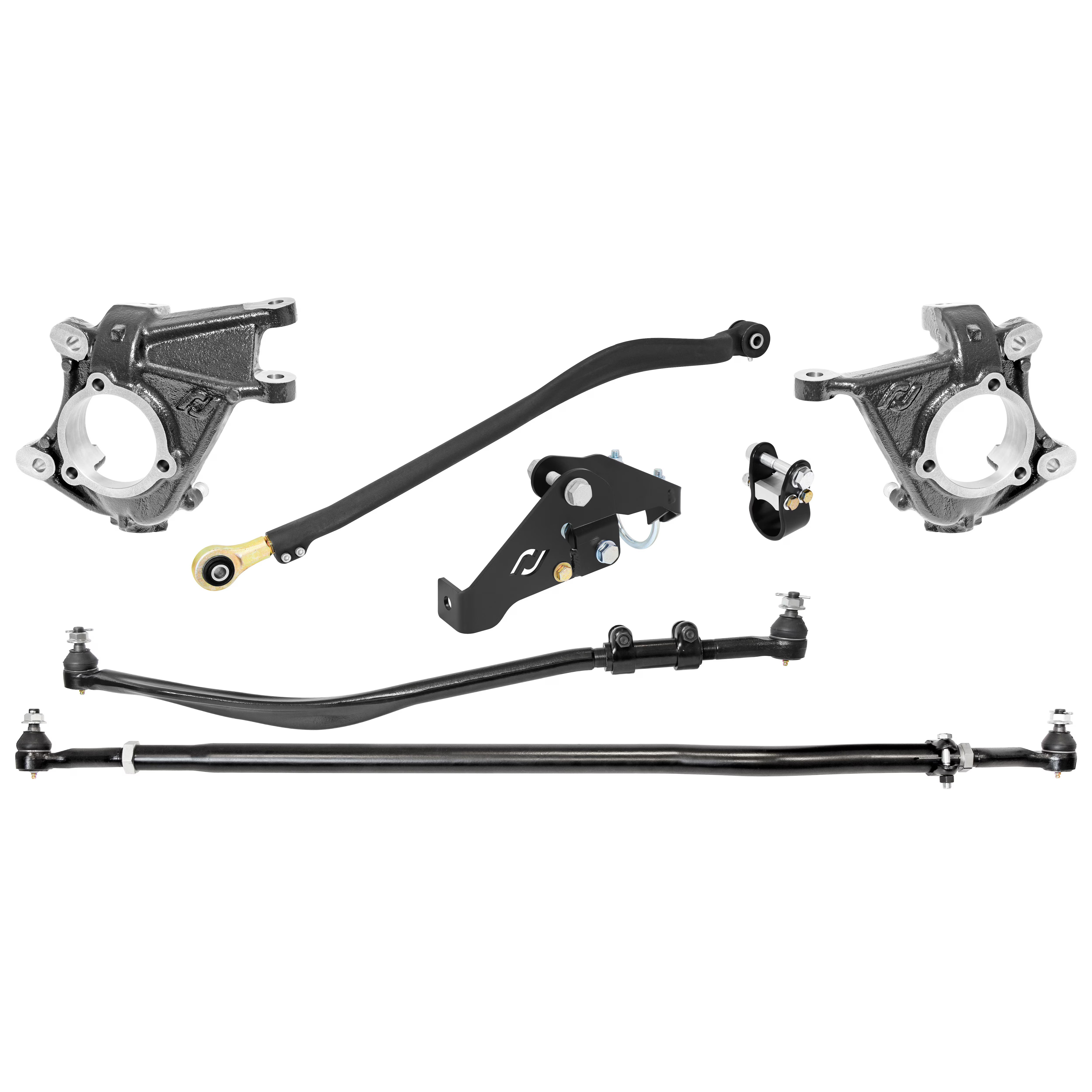

Kit Includes:

  • LH High Steer Steering Knuckle
  • RH High Steer Steering Knuckle
  • Currectlync Drag Link
  • Currectlync Tie Rod
  • Johnny Joint Trac Bar
  • Trac bar relocation and stabilizer shock mount axle bracket
  • Stabilizer Shock Tie Rod Clamp
  • All required hardware and step-by-step instructions

Fitment Specifications:

  • For use on any factory JK front differential (Dana 30 or Dana 44), or any aftermarket JK replacement axle that features factory specification inner C-knuckles and up to 3 1/2 in. diameter axle tubes.
  • Retains all factory outer components including ball joints, unit bearings, outer axles, brakes and dust shields.
  • Trac bar relocation / ram assist axle bracket kit provides new sway bar link mounting holes that are raised 2 1/8 in. higher than stock (sway bar link lengths must be adjusted to accommodate this).
  • Intended to be used with a minimum of a 17 in. diameter wheel and up to a 6 in. wheel backspacing.
  • A minimum bump stop extension is mandatory to keep components from crashing under full articulation range conditions. See our bump stop options here.
  • This kit requires the use of either a factory JL/JT stabilizer shock or, specifically, Bilstein’s B8 5100 series stock replacement shock, part number: 33-292984 shock be used.

Notes:

  • This geometry optimized kit requires the use of the supplied, longer RJ-9120FJLF JL/JT front Trac Bar
  • To take full advantage of the up-travel that this kit is capable of, we recommend the use of our RJ-107101-101 adjustable bump stop kit.
  • This kit requires the use of either a factory JL/JT stabilizer shock or, specifically, Bilstein’s B8 5100 series stock replacement shock, part number: 33-292984 shock be used.

Parts List:

  • High Steer Knuckles (pair): RJ-437100-101
  • Currectlync Drag Link: JK-9704DL-T
  • Currectlync Tie Rod: RJ-432103-101
  • Johnny Joint Trac Bar: RJ-9120FJLF
  • Trac Bar and Stabilizer Shock Relocation Axle Bracket Kit: RJ-431111-103
  • Stabilizer Shock Tie Rod Clamp: RJ-441002-101

Kit Fitment:

  • Fits all listed vehicles below, granted they retain the factory front differential, or any aftermarket differential that features factory spec. inner C-knuckles.
  • JK Wrangler Unlimited (4-door) - All Models (w/ D30 or D44 differential)
  • JK Wrangler (2-door) - All Models (w/ D30 or D44 differential)

Product Specs

SKU:
RJ-430001-103
Brand:
RockJock
