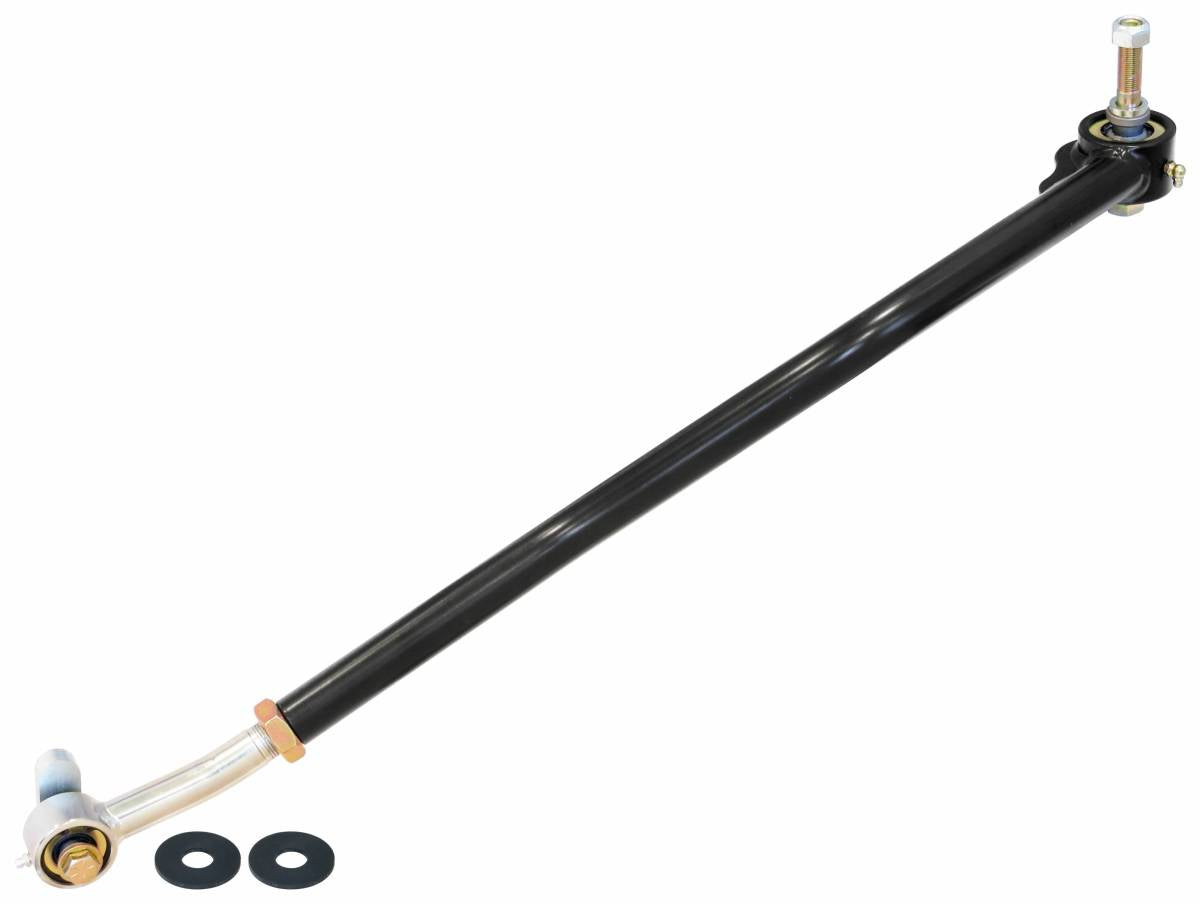

Image of RockJock Johnny Joint Adjustable Front Trac Bar For 1997-2006 Wrangler TJ/LJ
Image of RockJock Johnny Joint Adjustable Front Trac Bar For 1997-2006 Wrangler TJ/LJ
RockJock

RockJock Johnny Joint Adjustable Front Trac Bar For 1997-2006 Wrangler TJ/LJ

SKU: CE-9120TJS

SELECT FITMENT

See If This Product Fits Your Vehicle

$466.00
$466.00
$536.00

Free Shipping

Free ground shipping on all orders over $99
Description

Our Johnny Joint® adjustable front trac bar for the TJ/LJ/XJ/MJ/ZJ features an offset, narrow bodied Johnny Joint® rod end at the frame end that puts the bar further forward, providing more clearance between the diff and the trac bar, and maximum articulation. Other features include 1 1/4" x .250 wall 4130 chromoly construction, a welded in gusset from the bar to the Johnny Joint®, heat treated chromoly, Johnny Joint® equipped adjuster at the axle housing end and semi-gloss black powder coat finish.



Features:

  • 2-year warranty.
  • Works with any size tire
  • Semi-Gloss Black Powder Coat Finish
  • 1.250" o.d. x .250" wall 4130 chromemoly steel tubing
  • Intended to be used with a minimum of 2" of lift
  • 1" thread forged steel greasable ends



Fitment:

  • 1997-2006 Jeep Wrangler TJ
  • 2004-2006 Jeep Wrangler LJ
  • 1984-2001 Jeep Cherokee XJ
  • 1986-1992 Jeep Comanche P/U MJ
  • 1993-1998 Jeep Grand Cherokee ZJ



Note:

  • Rubber limiting washers are included for the frame end of the bar to assist in keeping the arm vertical without compromising articulation
  • Some drilling is required for installation. The supplied frame bolt is a 5/8", and the supplied housing bolt is 1/2". Both of these holes must be drilled to size to accommodate the heavier duty hardware. A heavy duty nut plate kit is supplied for the housing end.
  • This trac bar is intended to be used with a minimum of 2" of lift. It may work on vehicles with less lift with Dana 30 frontends, however, on vehicles with no lift and a Dana 44, 9" or 60 front axle, you may run into a clearance issue. Always check fitment before drilling!
Fitment
Fitment

Product Specs

SKU:
CE-9120TJS
Brand:
RockJock
part type:
Suspension & Steering
