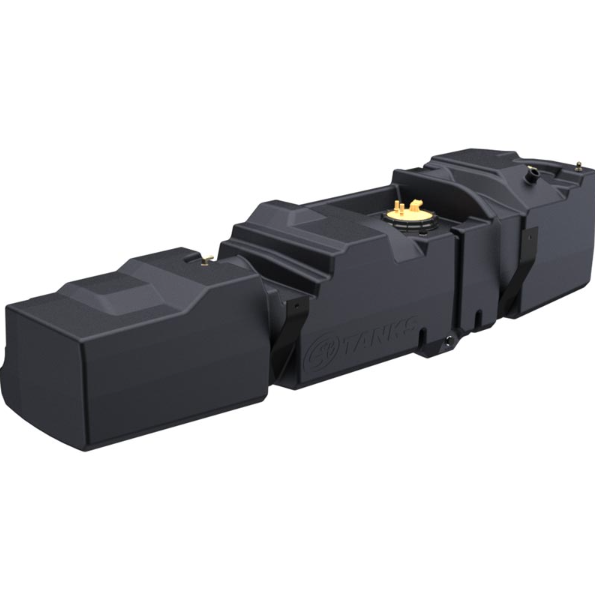

The S&B Tanks 10-1011 60-Gallon Midship Replacement Fuel Tank is a direct-fit replacement for the 29-gallon fuel tank in your 1999-2007 Ford 7.3L/6.0L Powerstroke Crew Cab Short Bed. This fuel tank features Crosslink Polyethylene construction for durability and does not require any drilling or cutting for installation. With ports for a transfer pump and an aftermarket lift pump, this tank also has a built-in sump you can utilize when installing a lift pump. This tank holds 9 more gallons than other aftermarket fuel tanks allowing you to go further without stopping for fuel.
Features:
- New Straps Included
- Reuses OEM Sending Unit & Locking Ring
- No Cutting Or Drilling Required For Installation
- Ports For Transfer Pump & Aftermarket Lift Pump
- Direct-Fit Replacement For The 29-Gallon OEM Tank
Specifications:
- Compatible with Gooseneck and 5th Wheel: Yes
- Compatible with OE Skid Plate: No
- Dimensions: 79" x 17.37" x 19.37"
- Drain: Yes
- Embedded Fitting Thread Size: 1/2" NPT
- Ground Clearance Compared to OE Tank: 2.9" lower than stock
- OEM Capacity: 29 gallons
- Sending Unit: OE
- Straps Included: Yes
- Sump: Yes
- S&B Capacity (Approximate): 60 gallons
- Tank Type: Midship
- Transfer Pump Ready: Yes
- Weight (Dry): 45 lbs
Fitment:
- 1999-2003 Ford F-250 7.3L
- 1999-2003 Ford F-350 7.3L
- 2003-2007 Ford F-250 6.0L
- 2003-2007 Ford F-350 6.0L
Included:
- (1) High Capacity Replacement Tank
- (1) Front Strap for 10-1011
- (1) Rear Strap for 10-1011
- (2) 0.5" Pipe Plug
- (2) Rollover Vent Cap
- (1) Fuel Hose, 5/16", BK
- (1) Fuel Hose, 5/16" x 50", BK
- (1) ICV, in Fill Pipe
- (2) OE Style Rollover Vent Valve
- (1) Fuel Hose, 1/2" x 12", BK
- (1) Sending Unit Gasket for 10-1011
- (1) Barbed Vent Fitting 90° Elbow w/Straw
- (1) 1/2" Barb to 1/2" Quick Connector
- (1) 1/2" Barb to 1/2" Quick Connector, 90° Elbow
Note:
- The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically. This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.
- If your truck has the V shaped crossmember connected to the carrier-bearing crossmember(see important note in instructions), the S&B Tank will not fit with this in place.
- S&B Sump Fittings/Drain Plug fittings are required when using our sump feed/return port or after drilling out the bottom port to use as a drain. Fittings are under related products.
