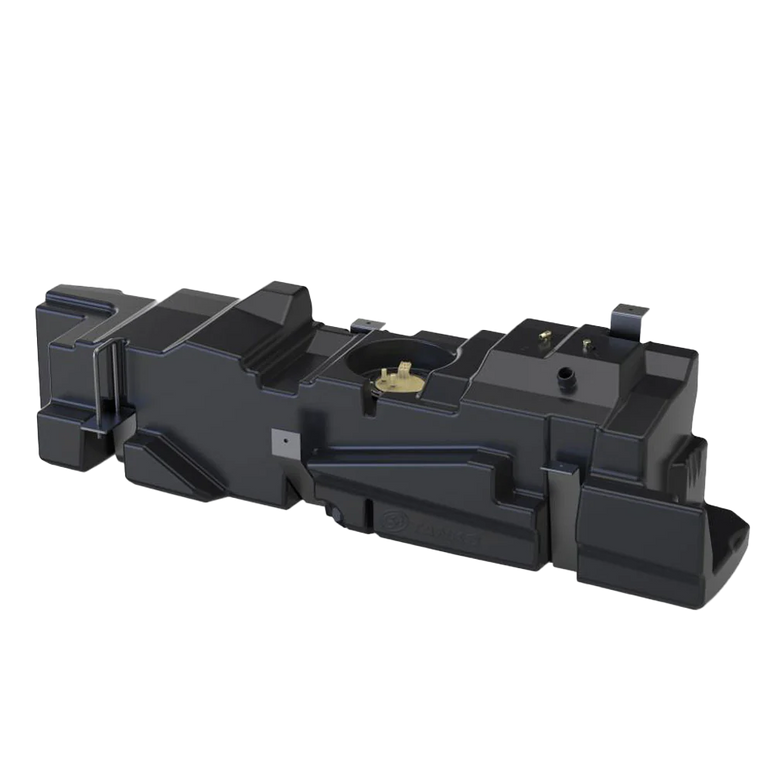

S&B 56 Gallon Replacement Fuel Tank For 2011-2016 Ford Powerstroke 6.7L Crew Cab Short Bed

This 56 gallon fuel tank replaces the OEM 26 gallon fuel tank. The tank sits 2.4 inch below the OEM fuel tank. Install can be done in 2-3 hours and does not require any cutting, drilling or modification.

This tank hold approximately 56 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 56 Gallon tank will have a greater fuel reserve.


Features:

• Compatible with gooseneck and 5th wheel: Yes

• Compatible with OE skid plate: No

• Dimensions: 75.6" X 18.25" X 19.66"

• Drain: No

• Embedded fitting thread size: 1/2" NPT

• Ground clearance compare to OE tank: 2" Lower

• Sending unit: OE

• Straps included: Yes

• Sump: No

• S&B Capacity (Approximate): 56 gallons

• Tank type: Midship

• Transfer pump ready: Yes

• Weight dry: 50lbs

Fitment:

• 2011-2016 Ford F-250 6.7L Diesel Crew Cab Short Bed 4WD

• 2011-2016 Ford F-350 6.7L Diesel Crew Cab Short Bed 4WD

Included:

• S&B 56 Gallon Fuel Tank Kit

Note:

• Will Not Fit 2WD Trucks
•  The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically. This tank now reuses the OE Float
