Image of South Bend Hybrid Street Dual Disc Clutch For 05.5-18 5.9L & 6.7L Cummins
Image of South Bend Hybrid Street Dual Disc Clutch For 05.5-18 5.9L & 6.7L Cummins
South Bend Clutch

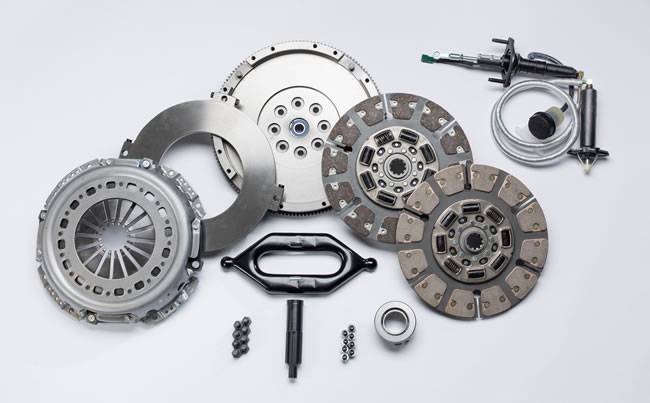

South Bend Hybrid Street Dual Disc Clutch For 05.5-18 5.9L & 6.7L Cummins

SKU: SDD3250-GK

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,726.66
$1,726.66
$1,986.00

Free Shipping

Free ground shipping on all orders over $100
Description

South Bend Hybrid Street Dual Disc Clutch For 2005-2018 Dodge Ram 5.9L & 6.7L Cummins (G56)



The South Bend Street Dual Disc Clutch is the perfect option for the truck that does it all. From daily-driven street performance to towing, the 13" diaphragm style 3250lb. pressure plate offers maximum holding power with easy pedal effort. An industry first! South Bend has developed an organic friction in a button form allowing for a dual friction, dual disc clutch. The organic lining will be facing the pressure place and flywheel for smooth engagement yet still offers superior holding power. All the clutch components in this assembly are made of steel. The center plate is lugged to fit the flywheel. This complete clutch has no special requirements for install. It is a direct replacement of the OEM clutch. Diaphragm style pressure plate with light pedal pressure, 12 ceramic buttons per side of disc, up to 650 hp with ductile flywheel - not SFI approved. The Street Dual Disc is not intended for use in competition applications such as sled pulling.



When choosing a clutch it is very important to match the appropriate horse power and work load. Do not try and save money when it comes to choosing a clutch. This will only cost you more in the long run. South Bend Clutches offers a Cryogenic Process that is a one time, permanent and irreversible treatment that affects the entire object, not just the surface. South Bend Clutch utilizes this process to strengthen their clutch and kits. After treatment your disc springs, clutch plate and flywheel, and material will wear less and the plate load will hold up over time.



Features:

  • 650 HP & 1300 ftlbs. Torque
  • Includes South Bend Single Mass Flywheel
  • 13" Half Organic & Half Ceramic
  • Upgraded Hydraulics Included
  • Includes Alignment Tool
  • Springs Will Maintain Compression Longer & Increase Wear Consistency and Resistance Significantly Less Warping Caused by Heat.
  • Solid South Bend Clutch Construction
  • Modified for a Higher Plate Load
  • 1 Year/12,000 Mile Warranty



Note:

  • 30K Pound Towing Capacity
  • For use on the Stock 1-1/4" 10 Spline Input Shaft ONLY
  • NOT Recommended for Stock Applications
  • NOT for Competition Use
Fitment
Fitment
Review

Product Specs

SKU:
SDD3250-GK
Brand:
South Bend Clutch
