Snyder Performance Engineering

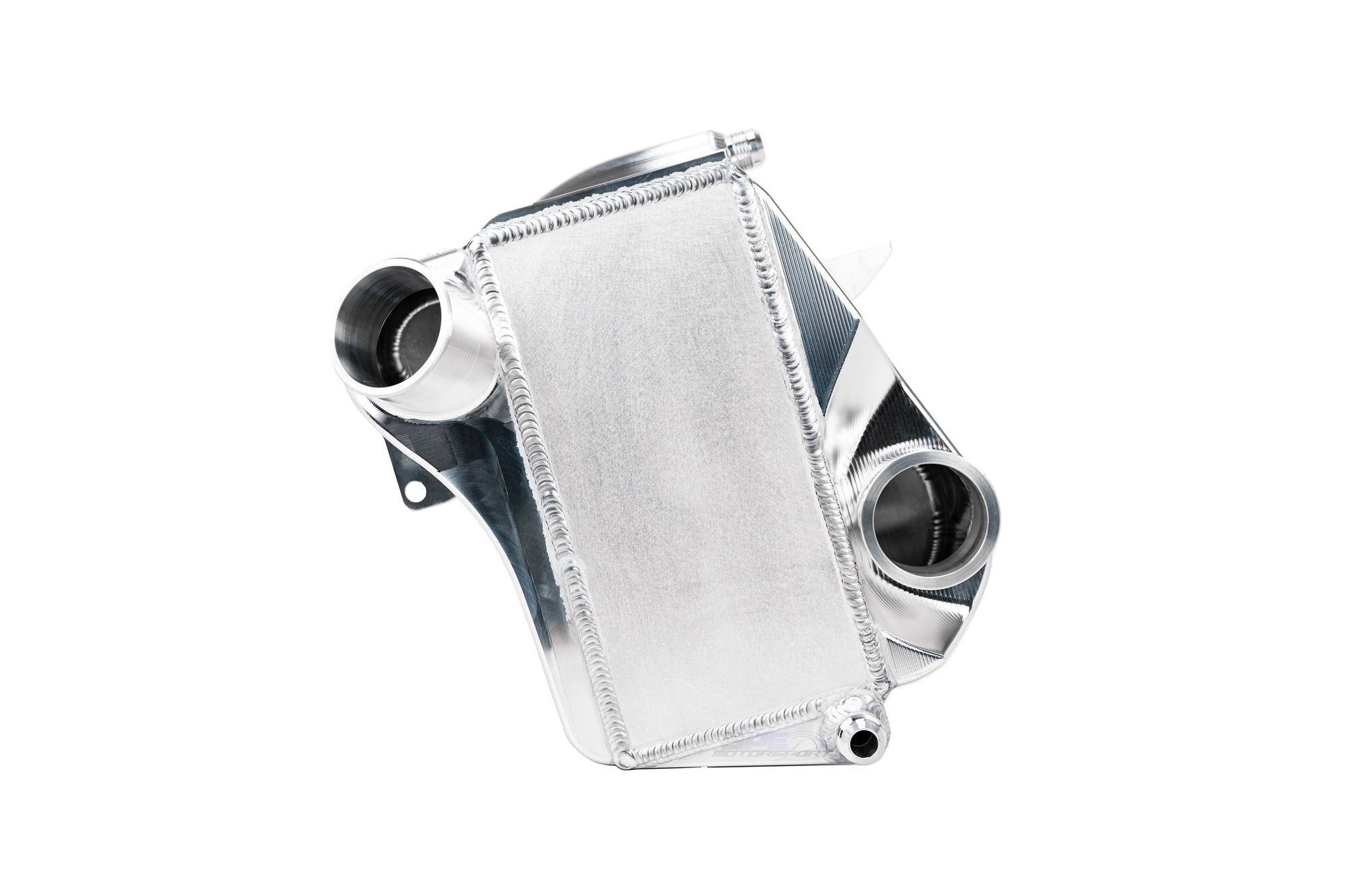

SPE Motorsport Booklung Billet Intercooler For 2011-2026 Ford 6.7L Powerstroke

SKU: SPE-S100184

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,599.00
$2,599.00

Free Shipping

Free ground shipping on all orders over $99
Motor: 6.7 Powerstroke
Description

The 2011-2026 Ford Super Duty 6.7L Powerstroke is one of the best work truck and diesel performance platforms on the market — but stock 6.7L air-to-water intercoolers are prone to leaking internally due to elevated boost levels, factory assembly defects, or just normal use over time. Knowing this, SPE set out to address the problem and do it better than the competition. The SPE Booklung Billet Intercooler is by far the toughest and largest intercooler available for the platform.

The intercooler core (dubbed "The Booklung") is custom-designed by SPE specifically for the 6.7L Powerstroke around the actual 110°F operating temperatures of the secondary cooling system — not the 30-45°F ice water most off-the-shelf cores are designed for, which just doesn't perform on this platform. SPE went further by replacing cast or sheet-metal end tanks with thick billet aluminum end tanks for strength and durability, and sized the assembly to take maximum advantage of available engine bay space.

Real-world dyno testing showed the Booklung produces 35% more airflow than the factory unit, picked up 130 lb-ft additional torque on a test-bed truck without other modifications, dropped EGTs up to 200°F, and cut pressure drop across the core by over half (from 5 PSI to 1.5 PSI). The core is rated and tested to over 150 PSI for extreme boost applications, and can be run with ice water in racing setups. 2017+ applications require an 11-16 style cold side or piping kit for installation.



Features:

  • Direct drop-in for all 2011-2026 Ford 6.7L Powerstroke (with cold side adapt 17+)
  • 35% increased airflow over factory 6.7L Powerstroke intercooler
  • Dyno-proven 130 lb-ft torque gain without other modifications
  • Lower EGTs ranging from 100°F to 200°F under load
  • Pressure drop cut from 5 PSI to 1.5 PSI across the core
  • Tested to over 150 PSI for extreme boost applications
  • Thick billet aluminum end tanks resist warping and cracking
  • Machined and TIG welded in the USA — Lifetime Warranty



Specifications:

  • Brand: Snyder Performance Engineering (SPE Motorsport)
  • Application: 2011-2026 Ford 6.7L Powerstroke
  • Type: Air-to-water (with bar-and-plate Booklung core)
  • Core Design: Custom — engineered for 110°F secondary system temps
  • End Tanks: Thick billet aluminum
  • Body: All-aluminum welded construction
  • Airflow Gain: 35% over factory intercooler
  • Pressure Drop: 1.5 PSI (vs 5 PSI factory)
  • Pressure Tested To: Over 150 PSI
  • Country of Manufacture: United States
  • Warranty: Lifetime Warranty
  • Tuning Required: No
  • Required Add-On (2017+): 11-16 style cold side or piping kit



Included:

  • (1) SPE Booklung Billet Intercooler assembly
  • (1) Mounting hardware kit



Fitment:

  • 2011-2026 Ford F-250 Super Duty 6.7L Powerstroke (incl. cab & chassis)
  • 2011-2026 Ford F-350 Super Duty 6.7L Powerstroke (incl. cab & chassis)
  • 2011-2026 Ford F-450 Super Duty 6.7L Powerstroke (incl. cab & chassis)
  • 2011-2026 Ford F-550 Super Duty 6.7L Powerstroke (incl. cab & chassis)



Notes:

  • 2017 and newer applications require an 11-16 style cold side or piping kit
  • Can run with factory cooling system or ice water (for race applications)
  • Performance figures may vary depending on truck modifications
